Body Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
Headlights DRL and Interior Lights
Headlights DRL and Interior Lights

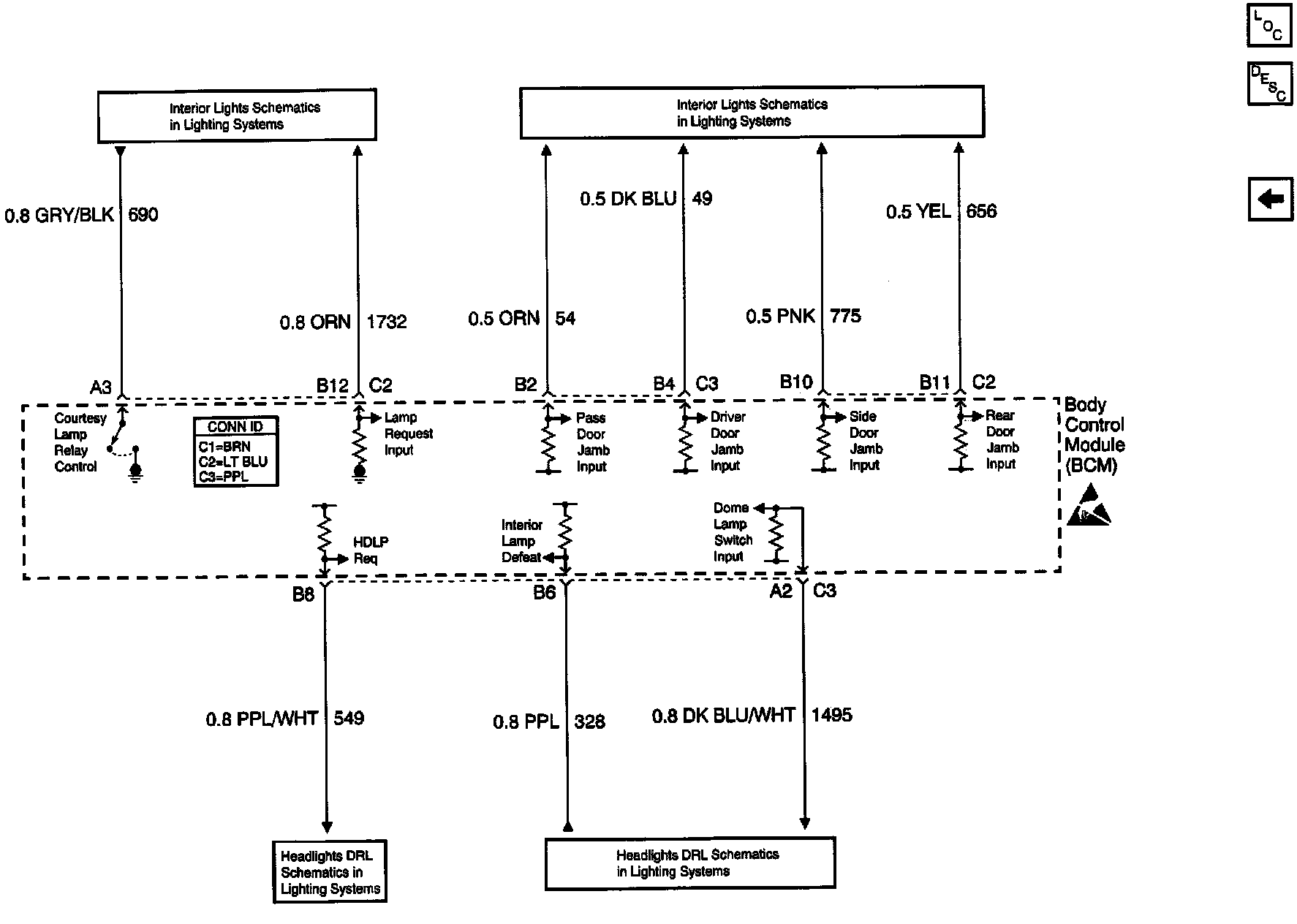

Body Control Module Schematics: Headlights DRL and Interior Lights:
