Home
>>
GMC Truck
>>
2000
>>
Safari Van AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper and Washer Systems
>>
Windshield Washer Pump
>>
Windshield Washer Pump Motor Front
Windshield Washer Pump Motor Front

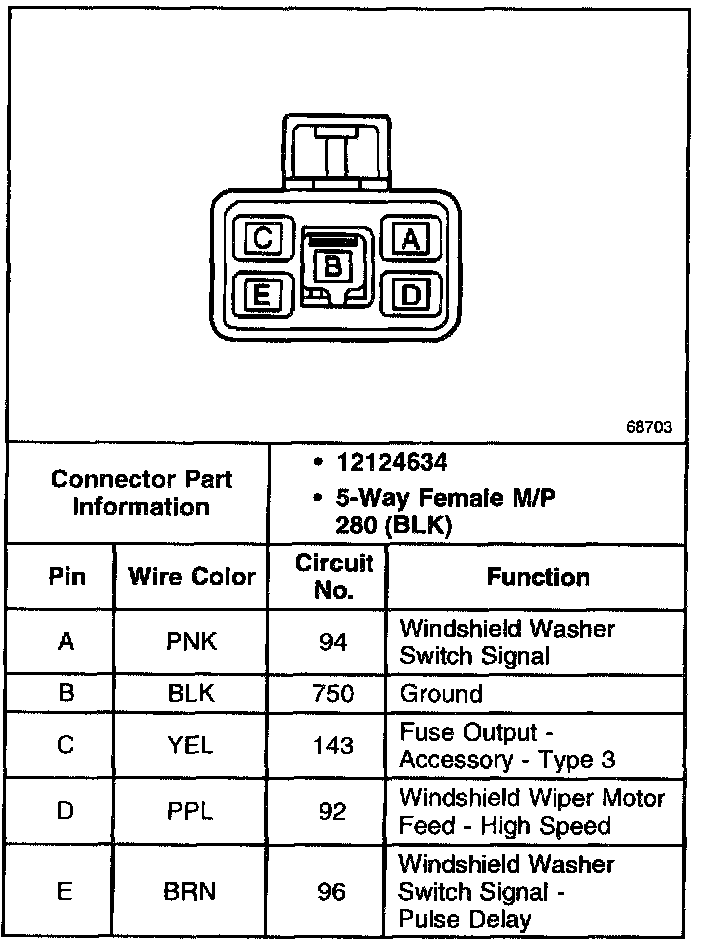

Windshield Wiper Motor And Module Front:
