Upper Control Arm Bushings Replacement

Removal Procedure

Tools Required
- J 22269-1 Tie Rod End Installer

1. Remove the upper control arm from the vehicle. Refer to Upper Control Arm Replacement.





2. Mount the upper control arm in a vise.
3. Remove the nuts and the retainers.

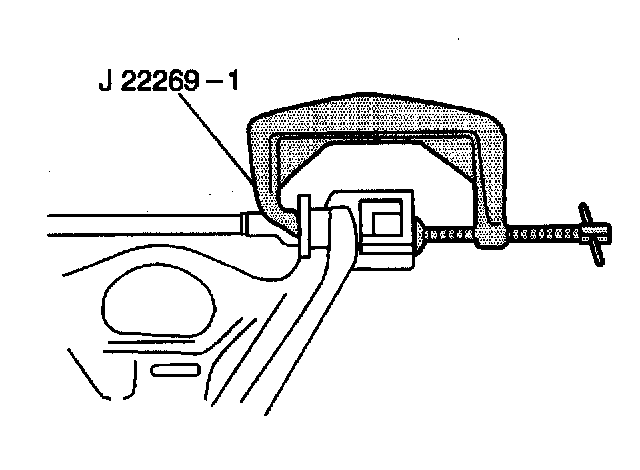

4. Remove the upper control arm bushings. Use the J 22269-1, a slotted washer, and a short piece of pipe slightly larger than the bushing.





5. Remove the upper control arm shaft from the upper control arm.

Installation Procedure

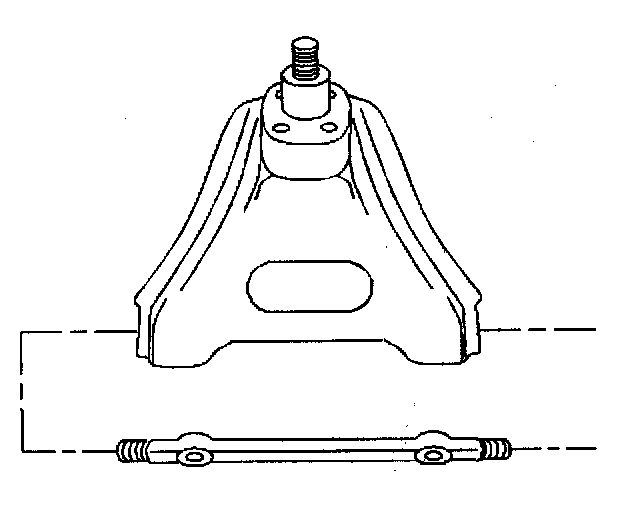

1. Install the upper control arm shaft into the upper control arm.





2. Install the upper control arm bushings into the upper control arm. Use the J 22269-1 and a short piece of pipe that is the same outer diameter as the rubber bushing.





3. Tighten the J 22269-1 until the bushing is positioned on the shaft and the control arm as shown. The measurement should be 12.8 - 13.8 mm (0.48 - 0.52 inch) on both ends.

Notice: Refer to Fastener Notice in Service Precautions.





4. Install the retainers and the nuts.
Tighten the nuts to 115 Nm (85 ft. lbs.).
5. Install the upper control arm to the vehicle. Refer to Upper Control Arm Replacement.
