Home
>>
GMC Truck
>>
2000
>>
K 2500 Truck 4WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
C2
C2

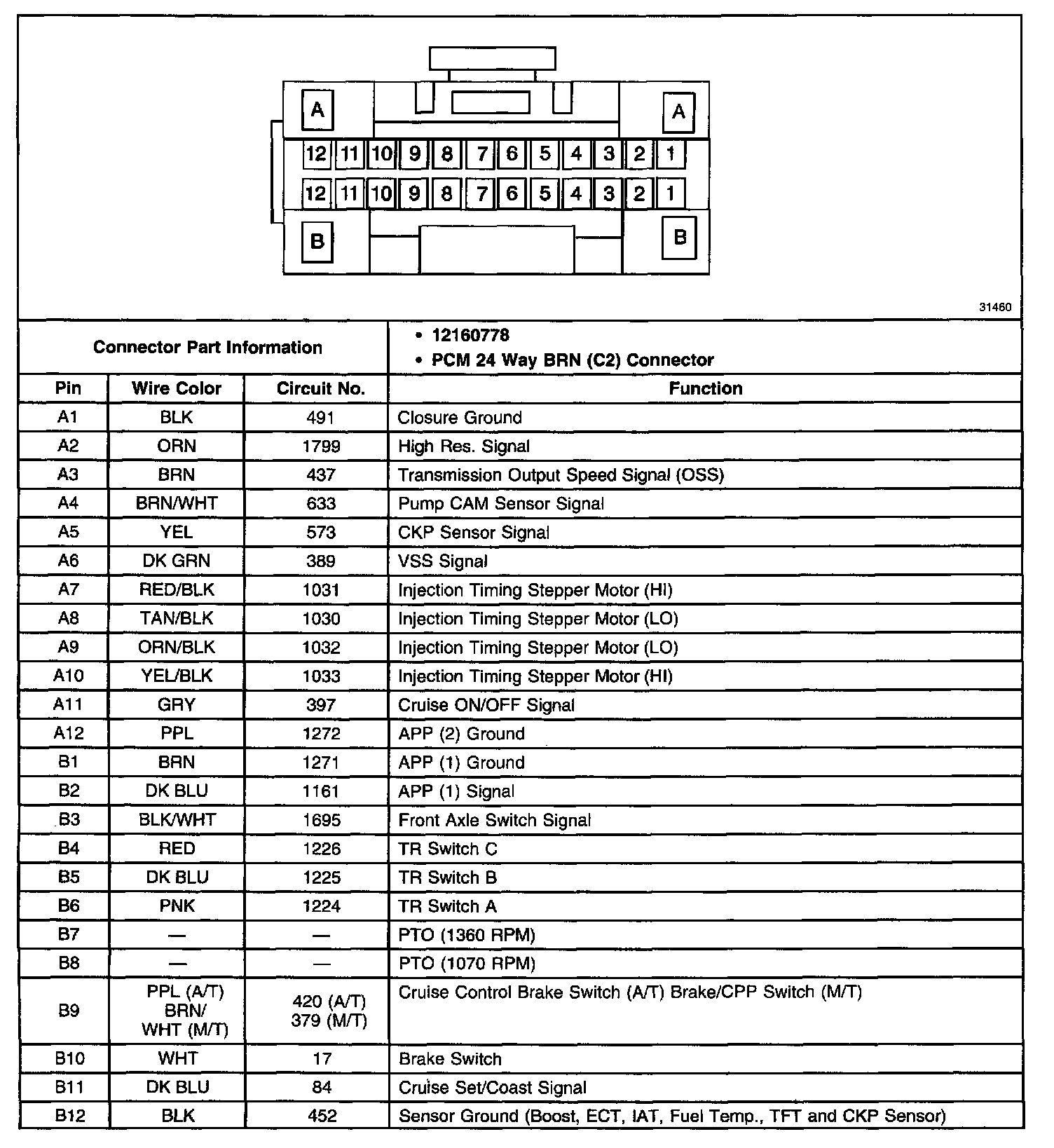

Powertrain Control Module (PCM) Connector C2:
