GMC Truck
>>
2000
>>
Envoy 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Underhood Fuse Block Details
Underhood Fuse Block Details

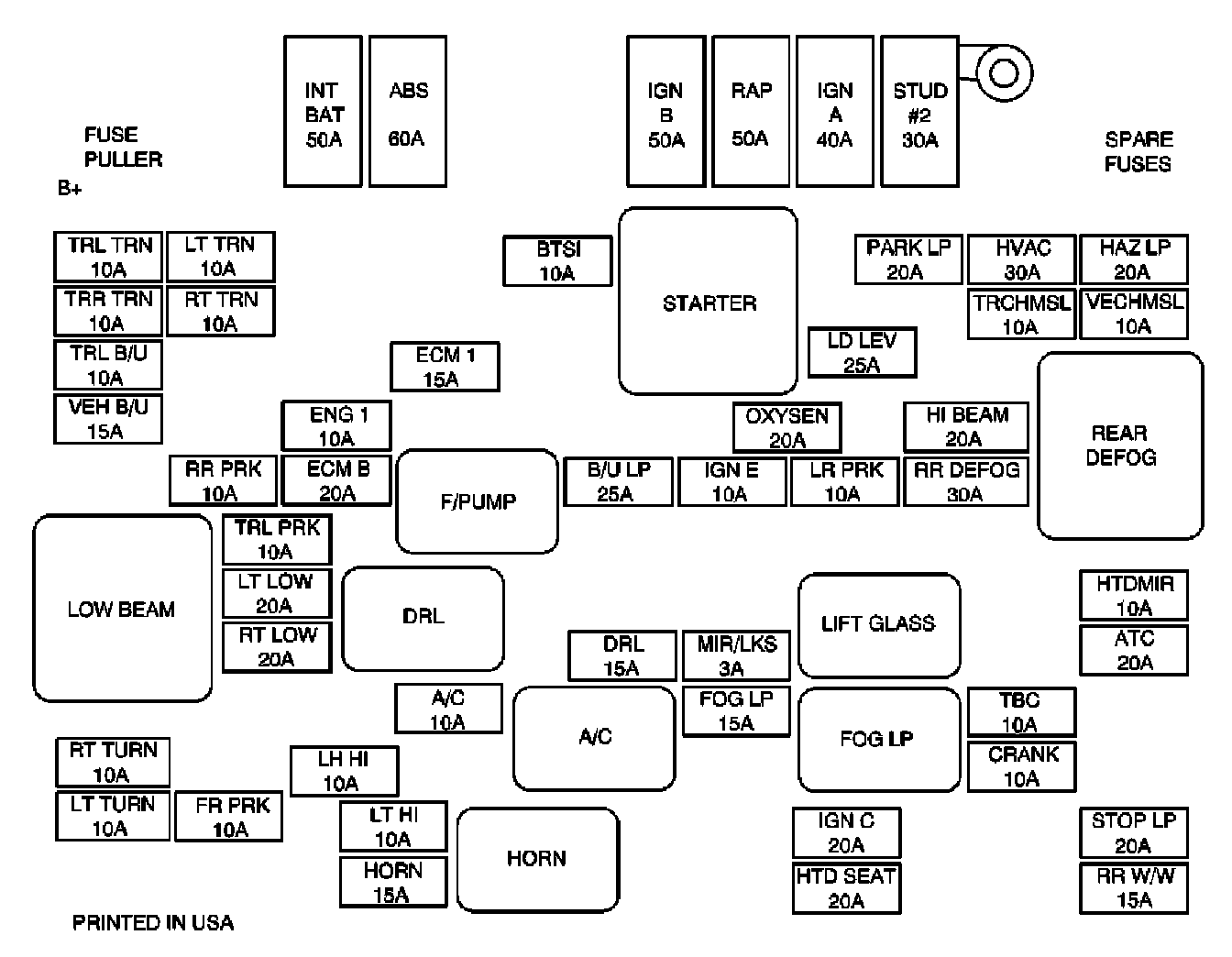

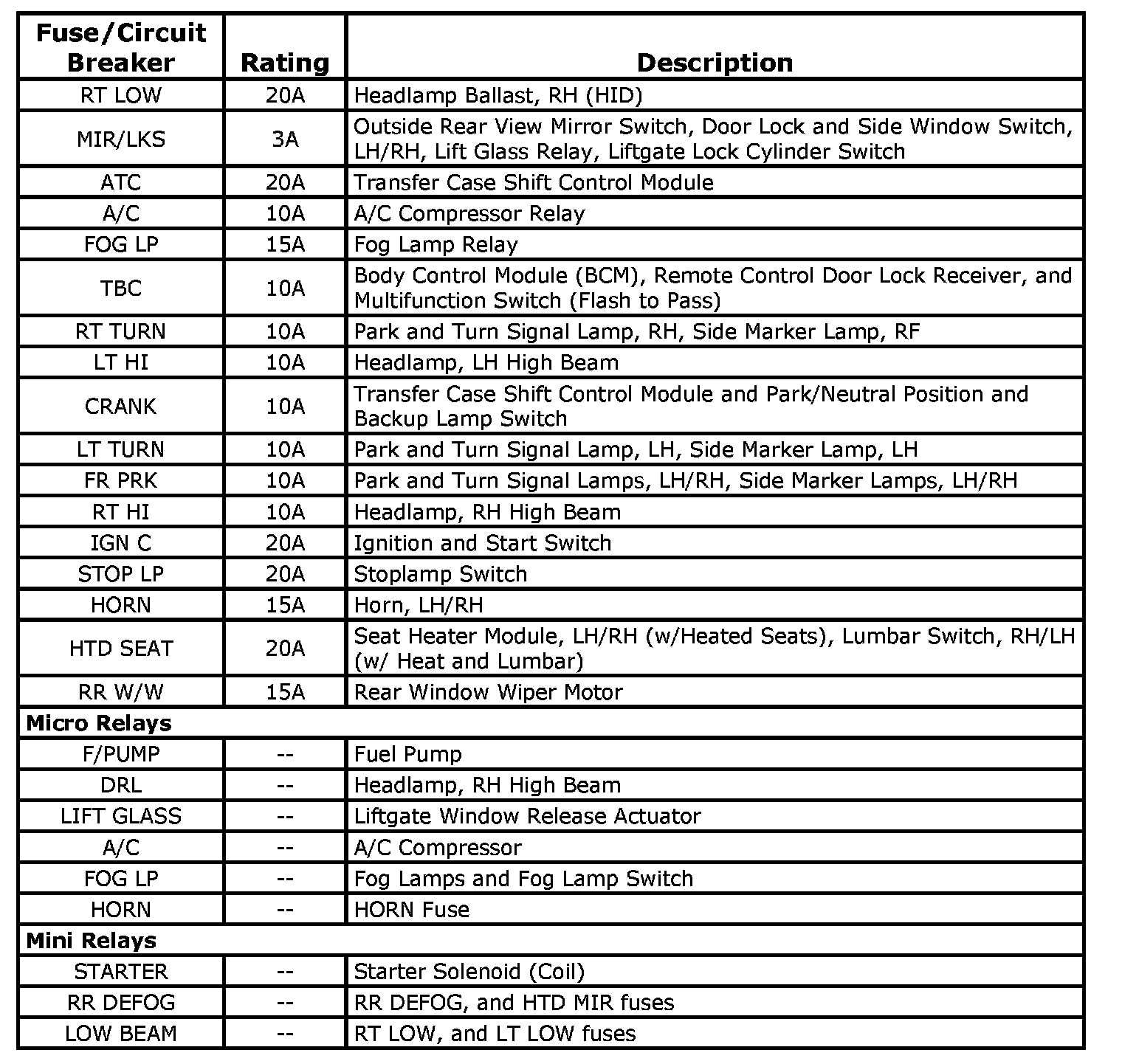

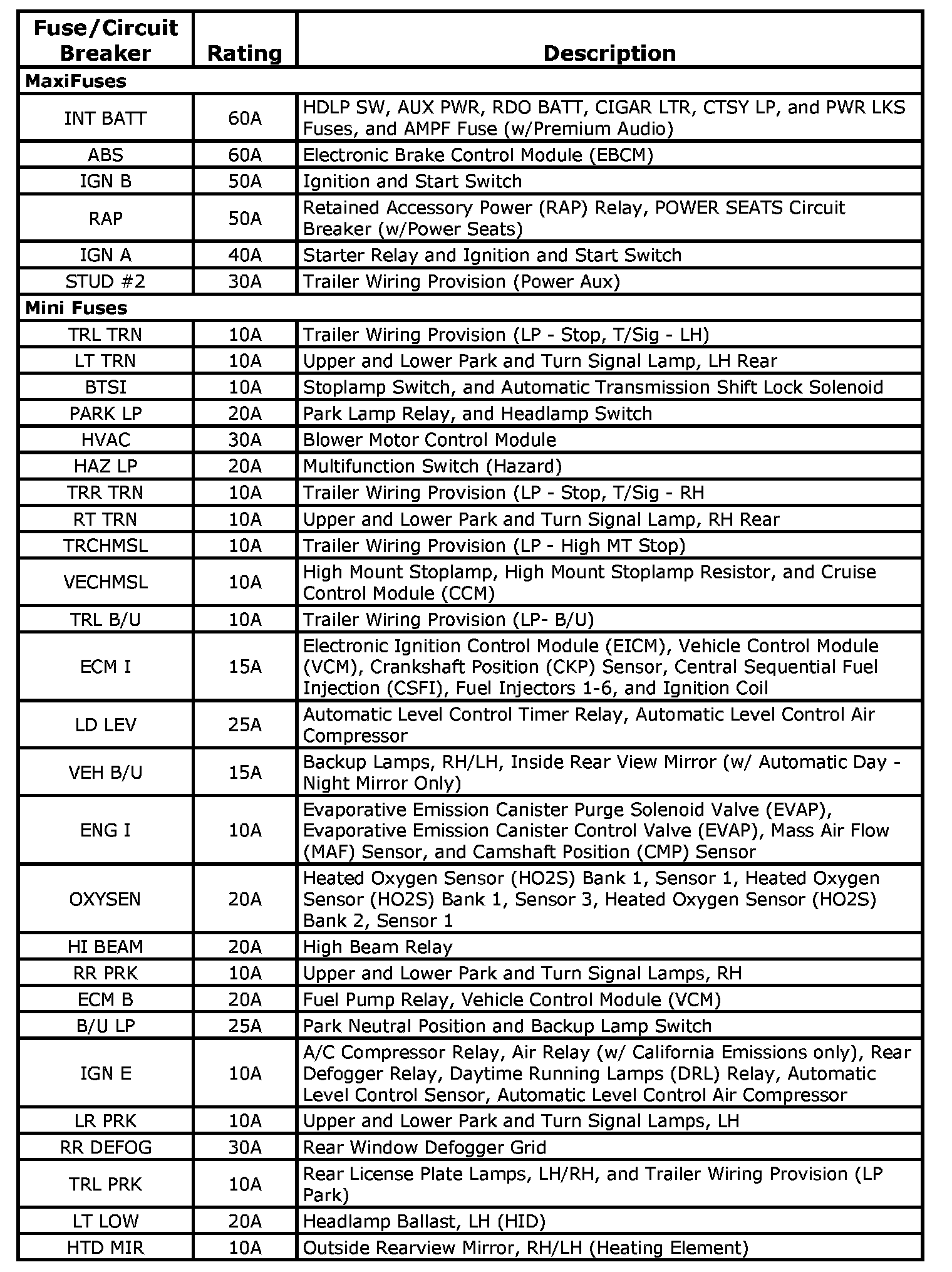

UNDERHOOD FUSE BLOCK
DETAILS
(Envoy Only)
