Fog Lamp Replacement - Front

REMOVAL PROCEDURE
1. Ensure that the fog lamp switch is OFF.
2. Ensure that the ignition switch is in the LOCK position.
3. Rotate the bulb socket 1/4 turn counter-clockwise in order to remove the socket from the fog lamp assembly.
4. Remove the bulb from the socket.

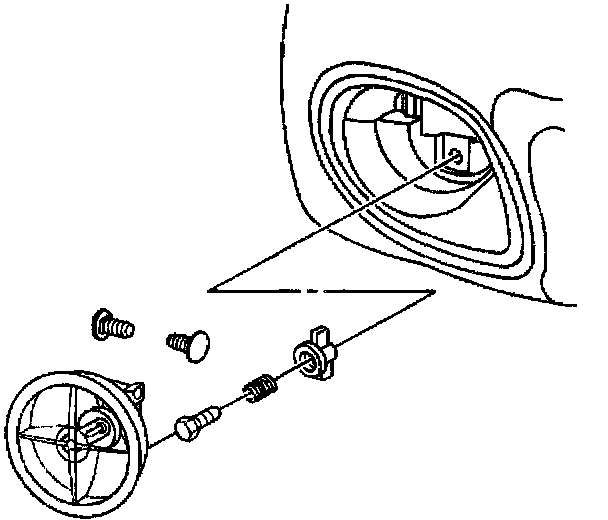

5. Remove the push-pin style retainers that retain the fog lamp to the front fascia.
6. Remove the adjustment thumbwheel from the fog lamp.
7. From the front of the vehicle, remove the fog lamp from the fascia.

INSTALLATION PROCEDURE
1. From the front of the vehicle, install the fog lamp to the fascia.
2. Install the adjustment thumbwheel to the fog lamp.
3. Install the push-pin style retainers that retain the fog lamp to the front fascia.
4. Install the fog lamp bulb to the socket.
5. Rotate the bulb socket 1/4 turn clockwise in order to install the socket to the license plate lamp assembly.
6. Realm the fog lights. Refer to Fog Lamp Aiming Procedure.
