GMC Truck
>>
2000
>>
Envoy 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Auxiliary Power Outlet
>>
Accessories Power Receptacle - Rear
Accessories Power Receptacle - Rear

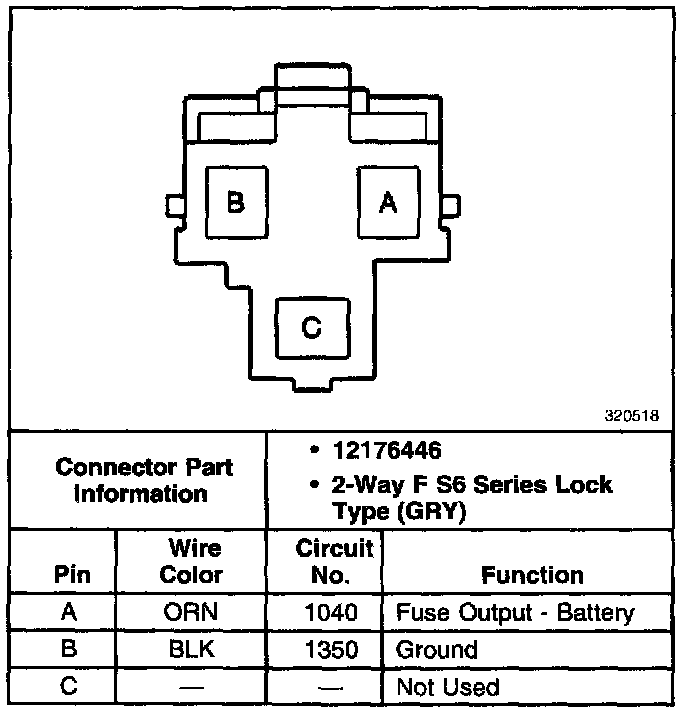

Accessories Power Receptacle, Rear (Envoy Only):
