GMC Truck
>>
2000
>>
C 2500 Truck 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
C3
C3

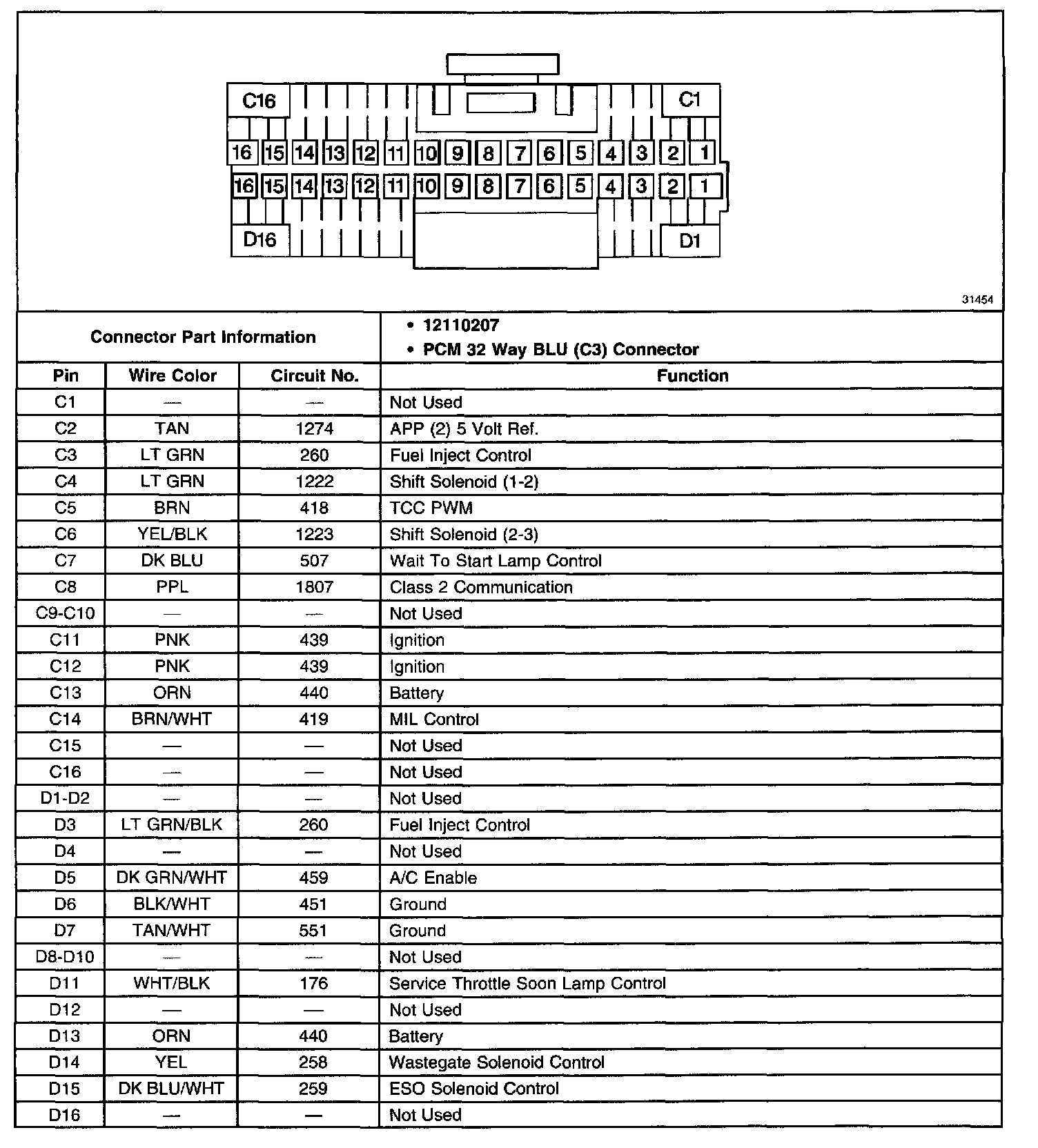

Powertrain Control Module (PCM) Connector C3:
