Control Assembly, HVAC
>>
Control Module
>>
Connector C1
Connector C1

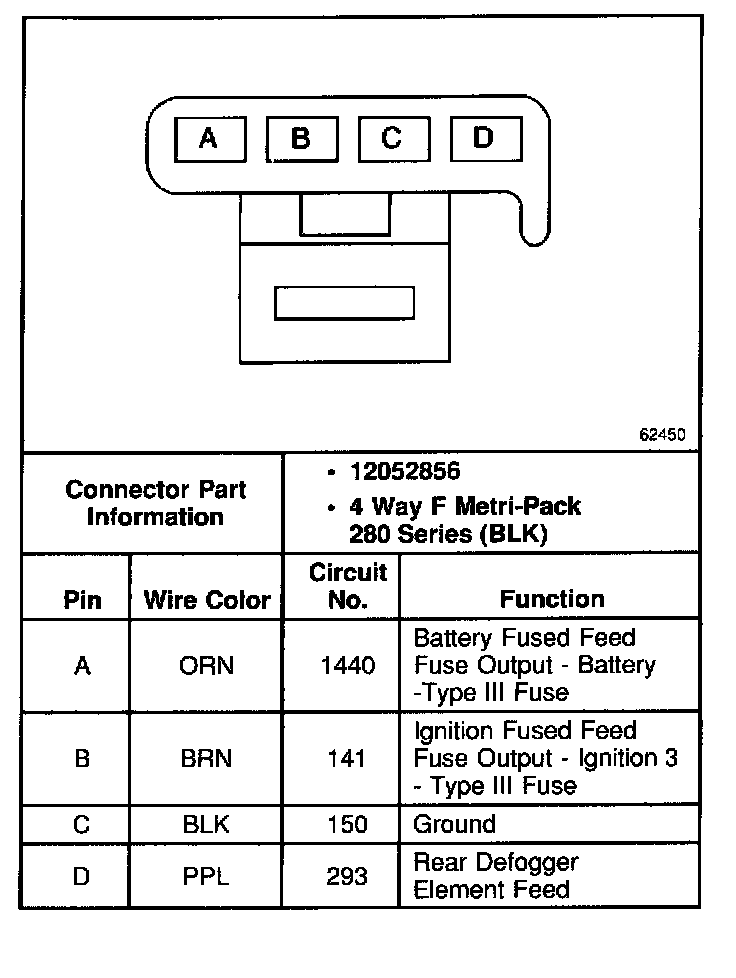

HVAC Control Module, Connector C1:
