Without Electronic Transmission
Without Electronic Transmission

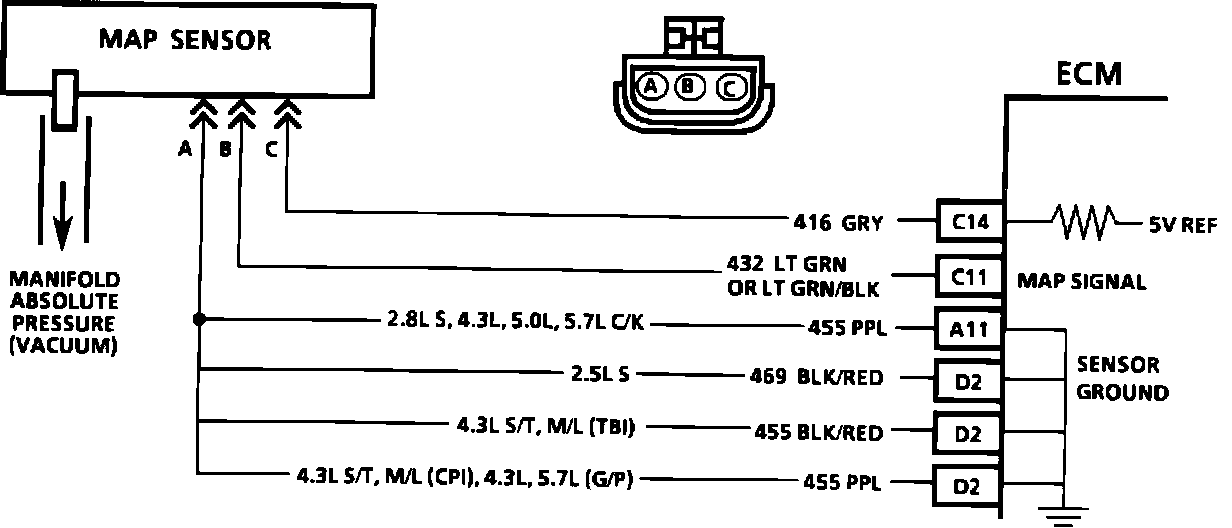

Manifold Absolute Pressure Sensor Circuit:

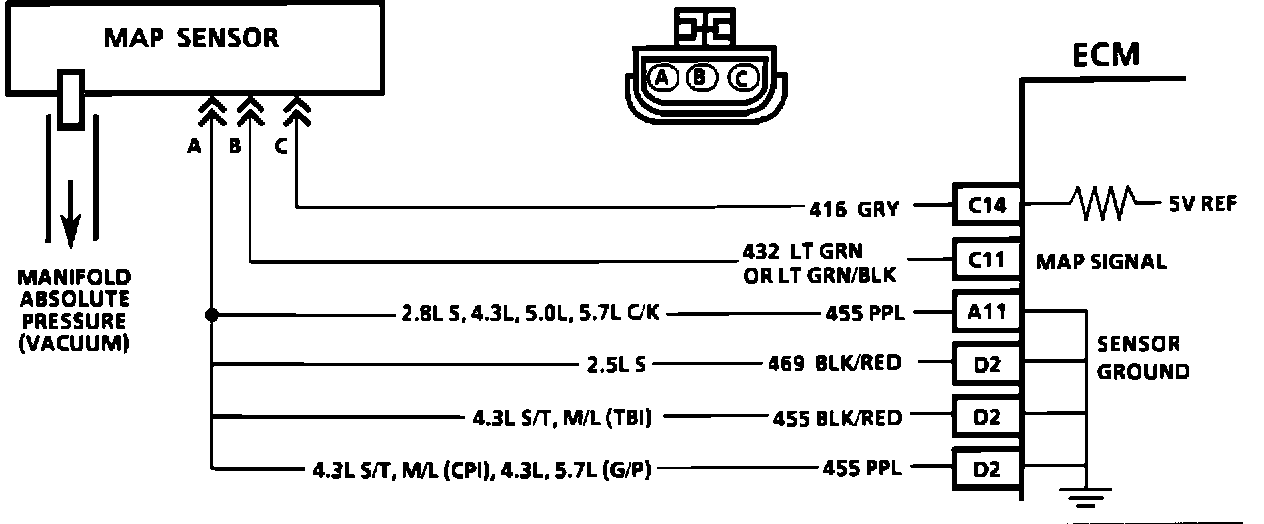

Manifold Absolute Pressure Sensor Circuit:
