Home >> GMC Truck >> 1993 >> Suburban 3/4 Ton 4WD V8-454 7.4L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Hot Fuel Handling Module >> Without Heavy Duty Auto. Trans.

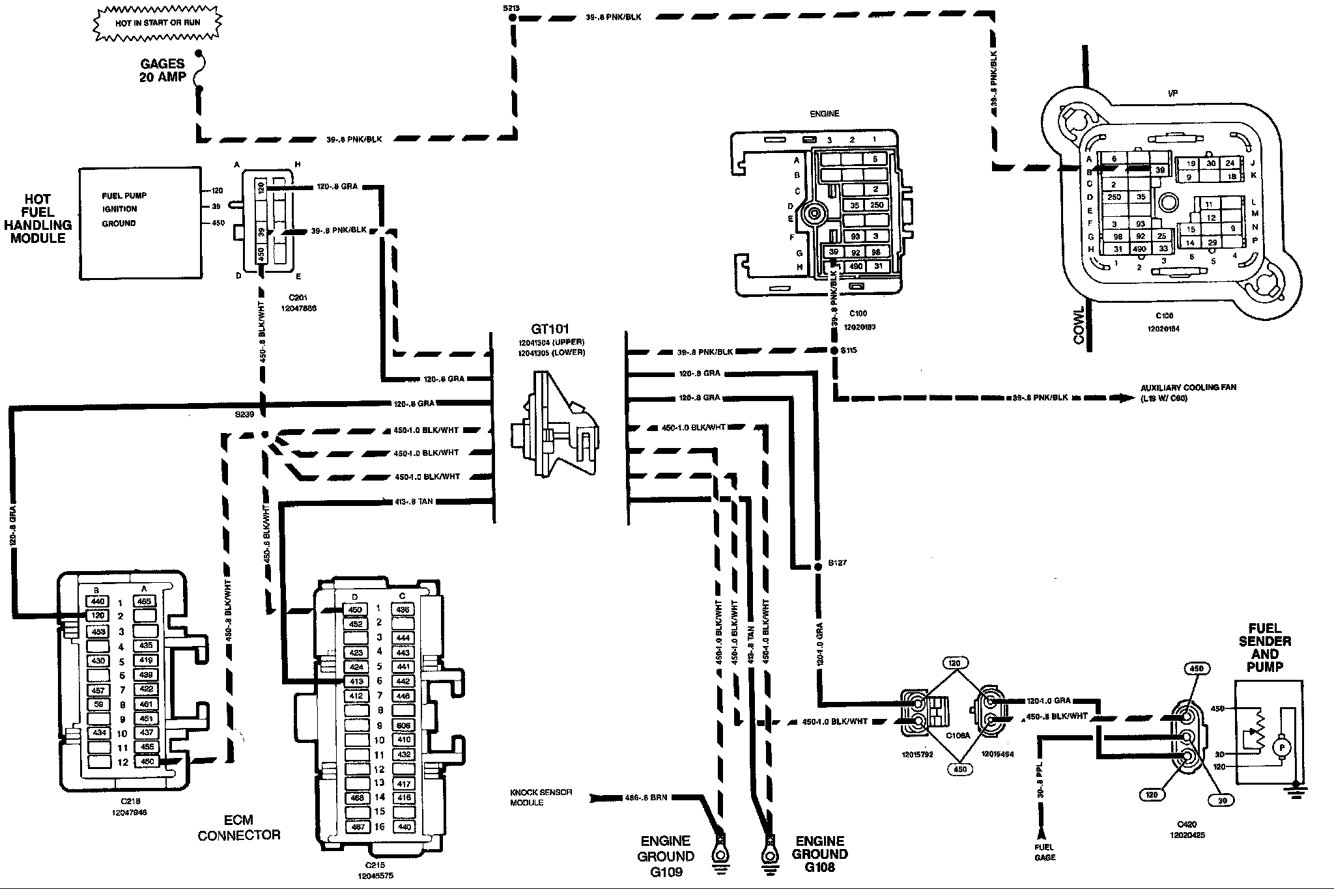

Without Heavy Duty Auto. Trans.
