GMC Truck
>>
1993
>>
Suburban 3/4 Ton 4WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic/Powertrain Control Module (ECM/PCM)
>>
ECM/PCM Inputs/Outputs
>>
ECM/PCM Inputs
>>
Manual Transmission
Manual Transmission

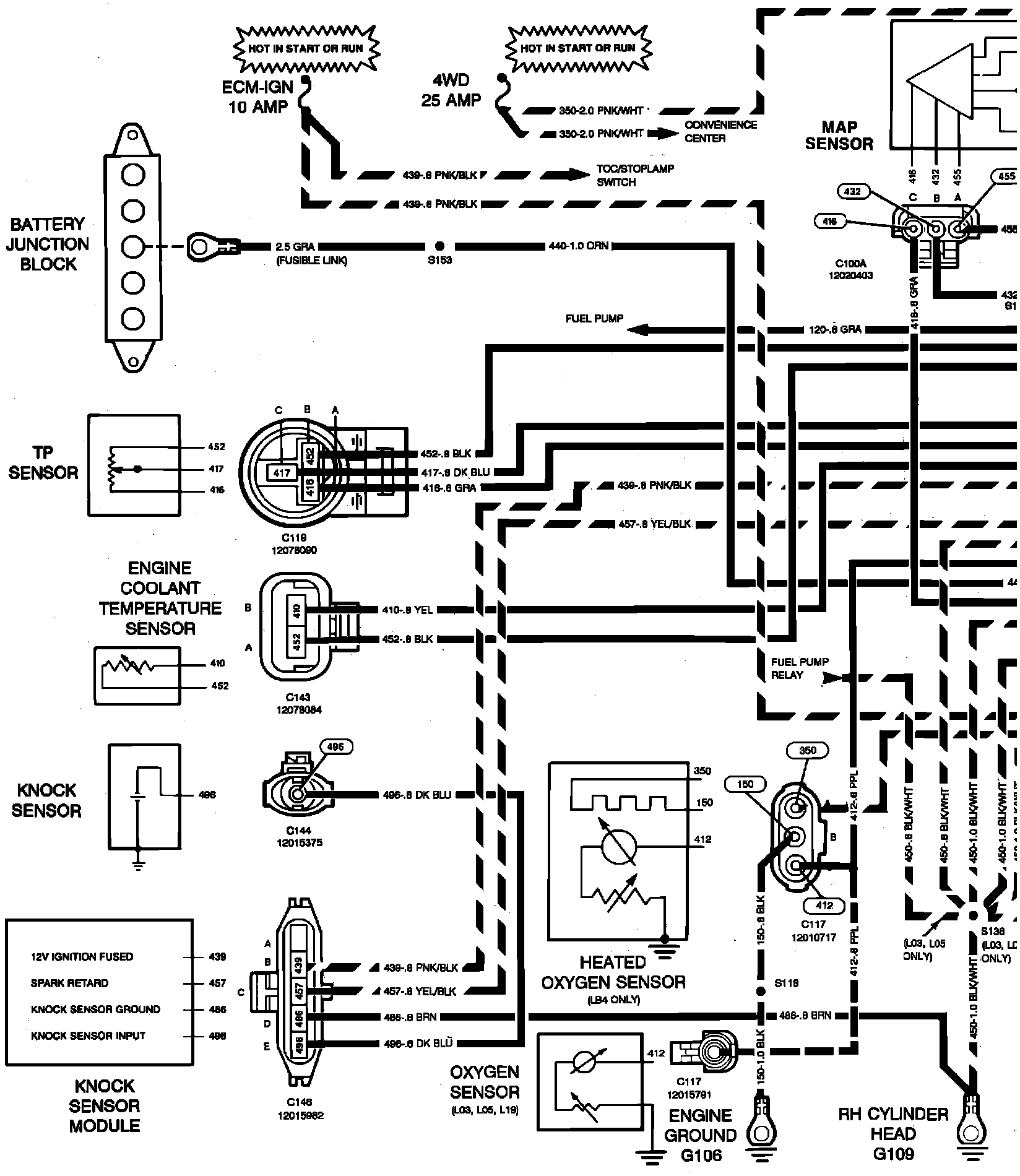

7��#Engine Control Module Inputs - Gasoline Engines:
� �#Engine Control Module Inputs - Gasoline Engines:
