Home
>>
GMC Truck
>>
1993
>>
Safari Van AWD V6-262 4.3L VIN Z
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic/Powertrain Control Module (ECM/PCM)
>>
ECM/PCM Inputs/Outputs
>>

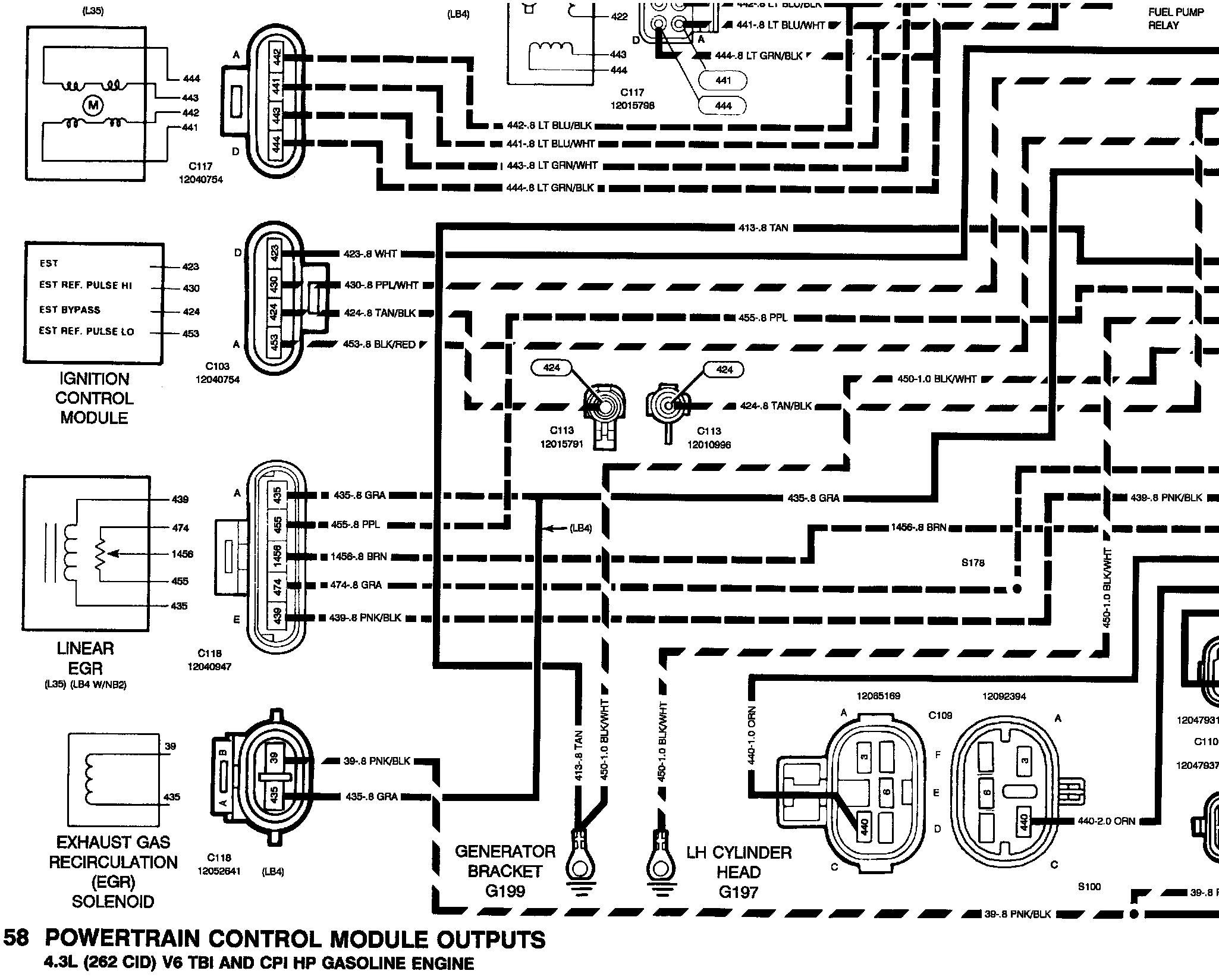

PCM Outputs
PCM Outputs
{$�$��$:
B$�q$��$:
