GMC Truck
>>
1993
>>
Safari Van AWD V6-262 4.3L VIN Z
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

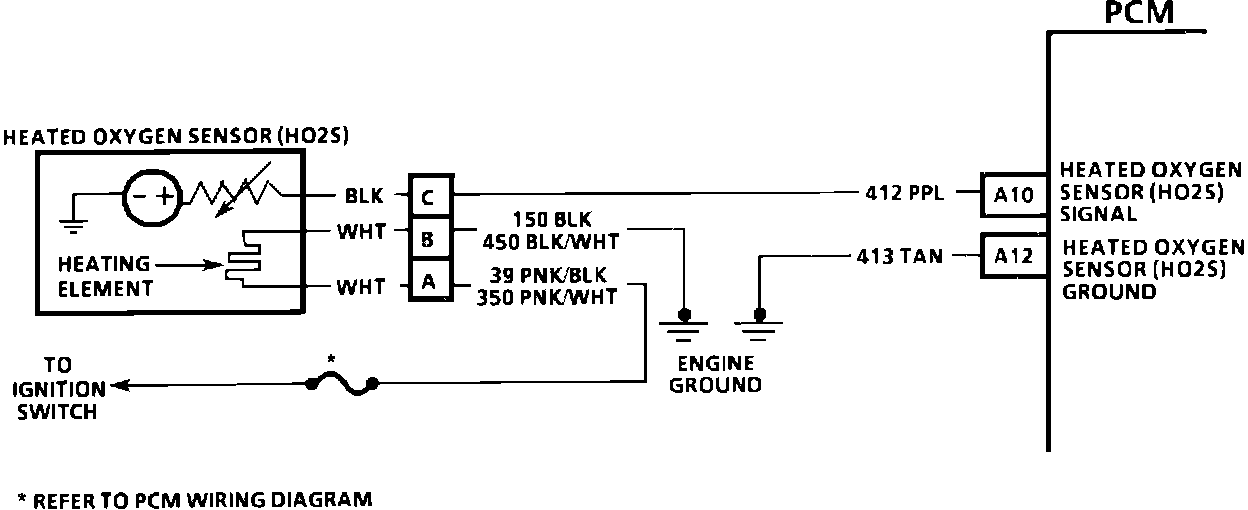

HO2S Circuit (PCM):
