GMC Truck
>>
1993
>>
Safari Van AWD V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

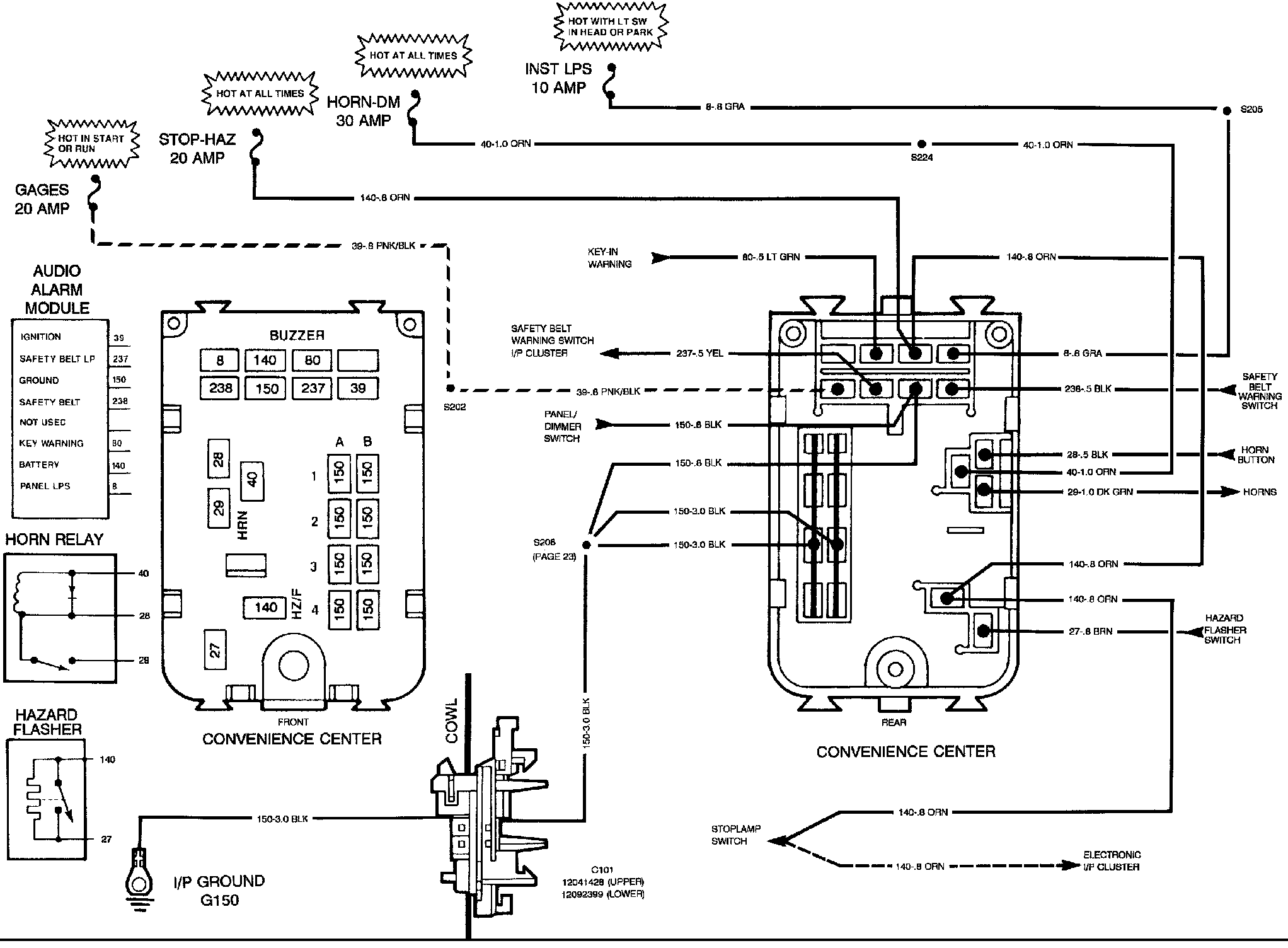

Fuse Block Diagrams
Fuse Block Diagrams
Convenience Center:
