Home
>>
GMC Truck
>>
1993
>>
Safari Van AWD V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
With Air Conditioning
With Air Conditioning

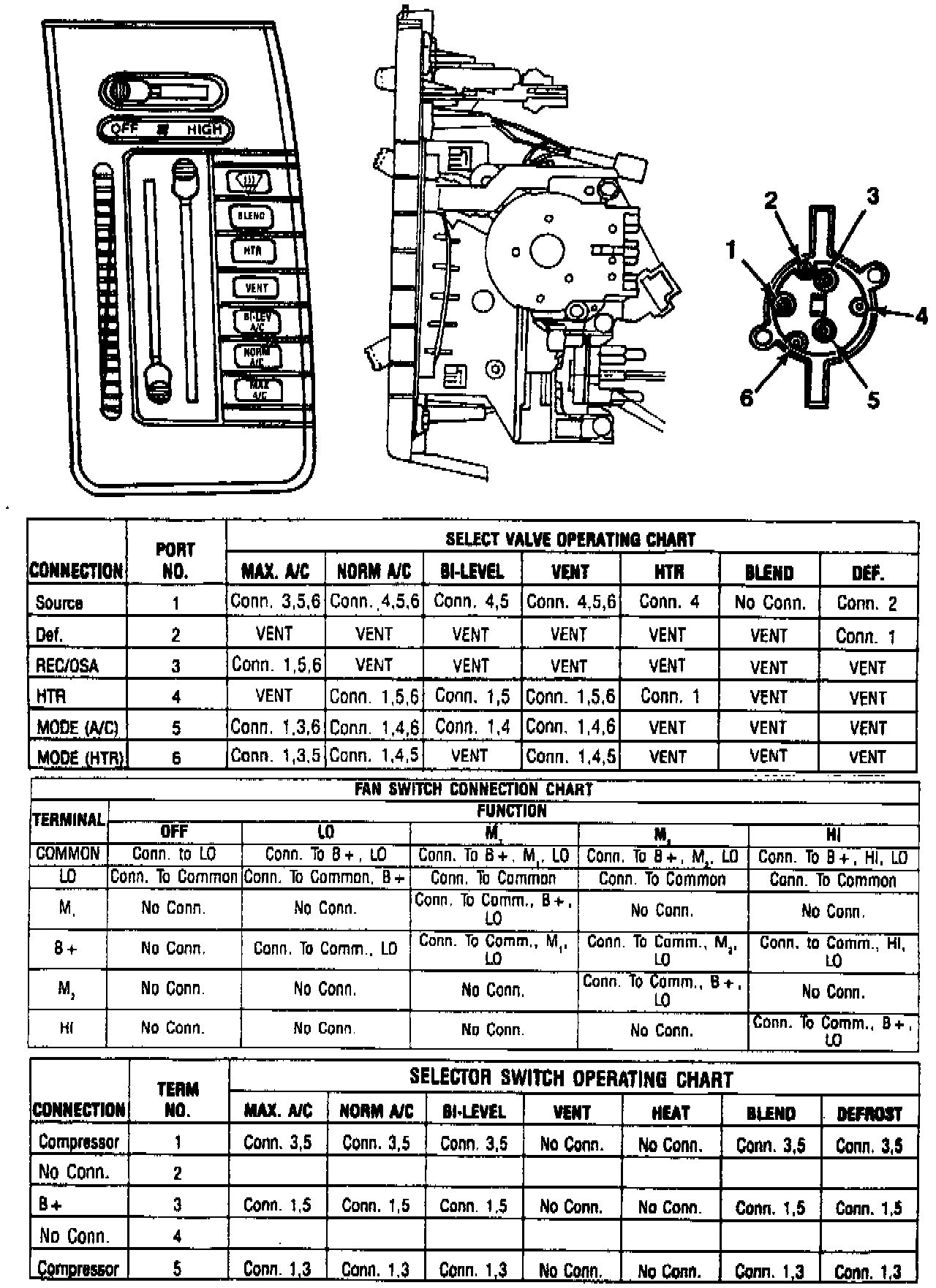

Control Assembly Operating Chart:
When diagnosing a malfunction with the heater and A/C control, refer to Chart.
