Transmission Range Indicator Lamp Relay
Transmission Range Indicator Lamp Relay

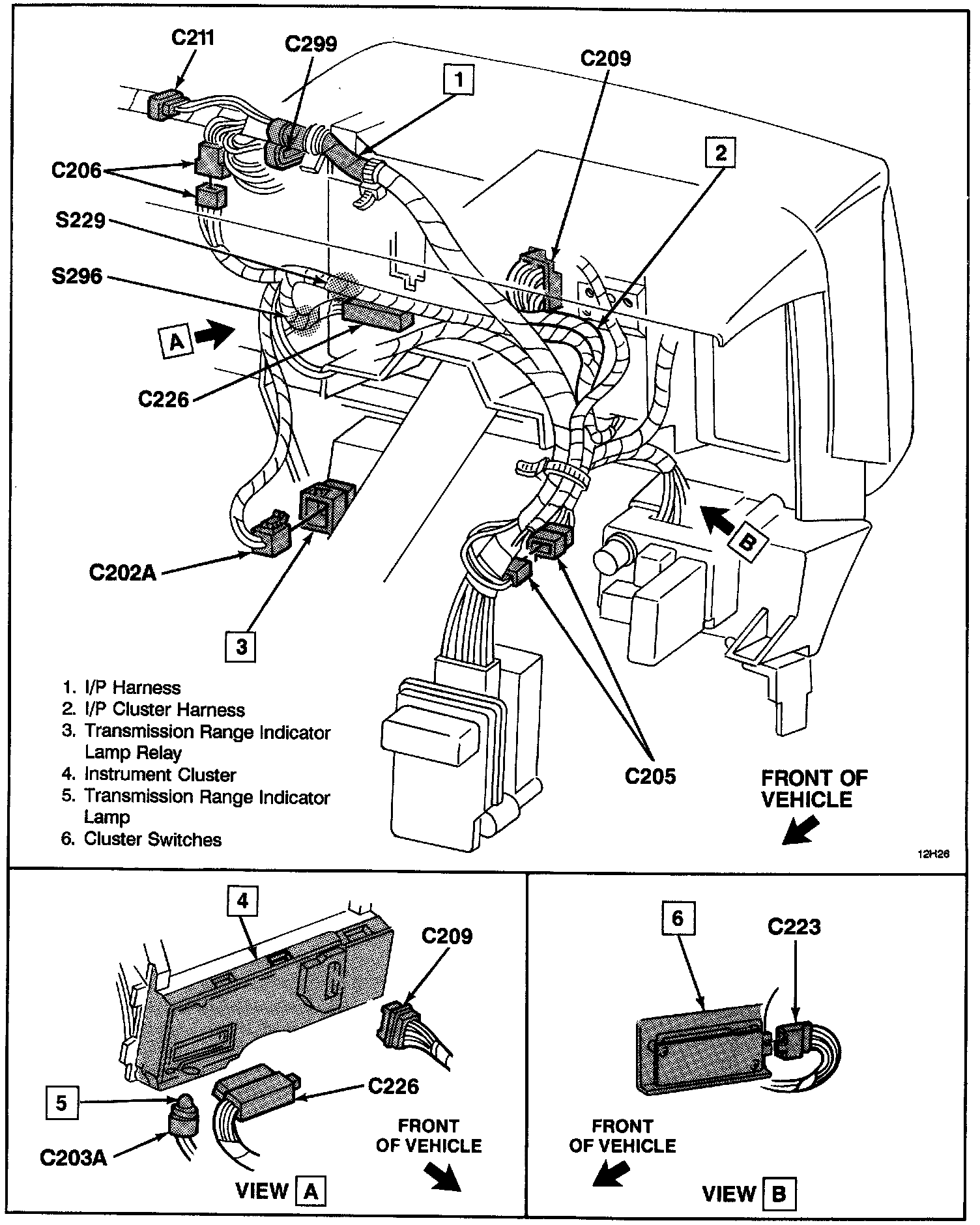

Instrument Panel Cluster Wiring (With Electronic Cluster):
