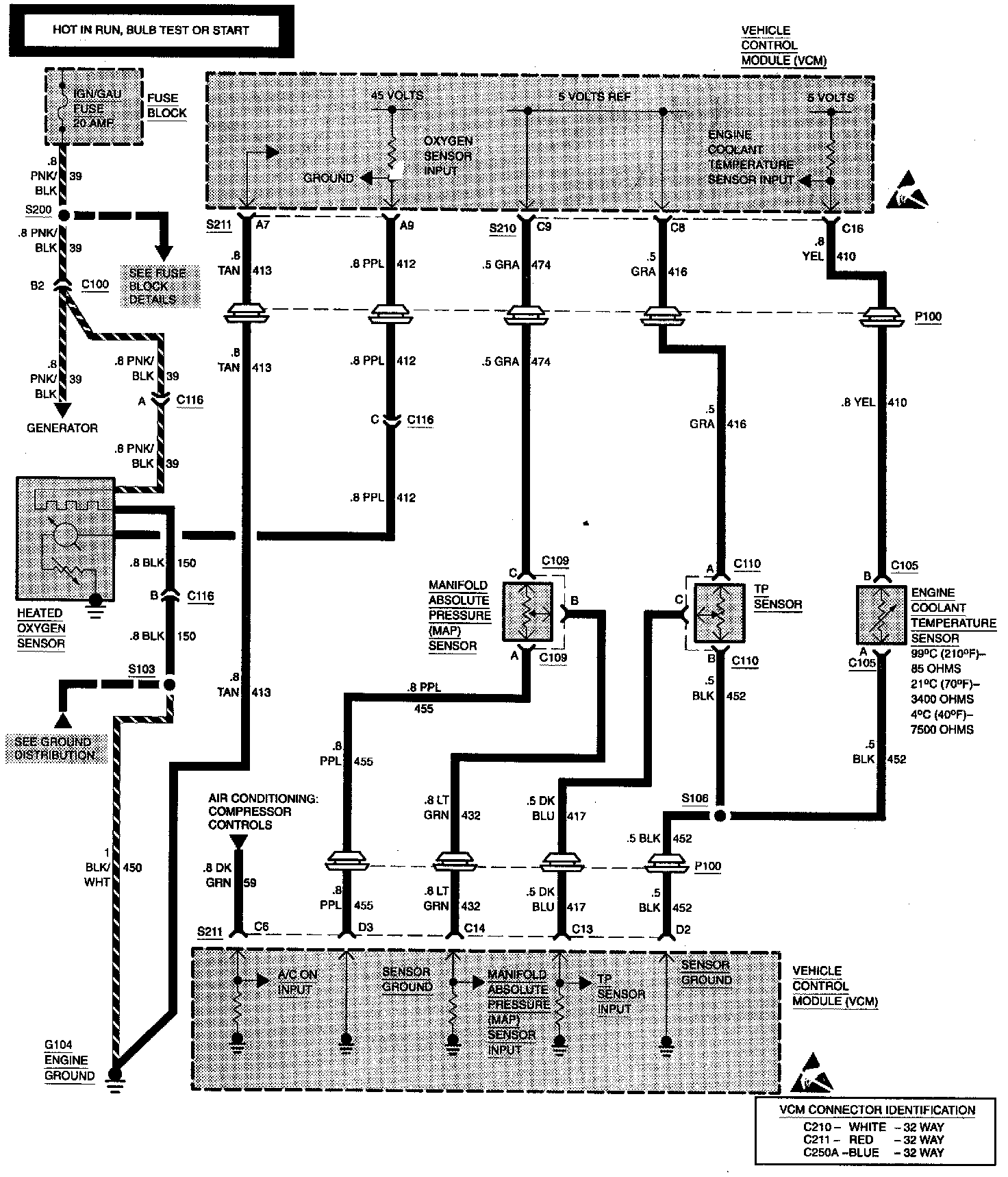

With Vehicle Control Module (VCM)

Engine Controls:

Engine Controls:

Engine Controls:

Engine Controls:

Engine Controls:
