GMC Truck
>>
1993
>>
S15/T15 4WD P/U V6-262 4.3L VIN Z
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
PCM (Automatic Transmission)
PCM (Automatic Transmission)

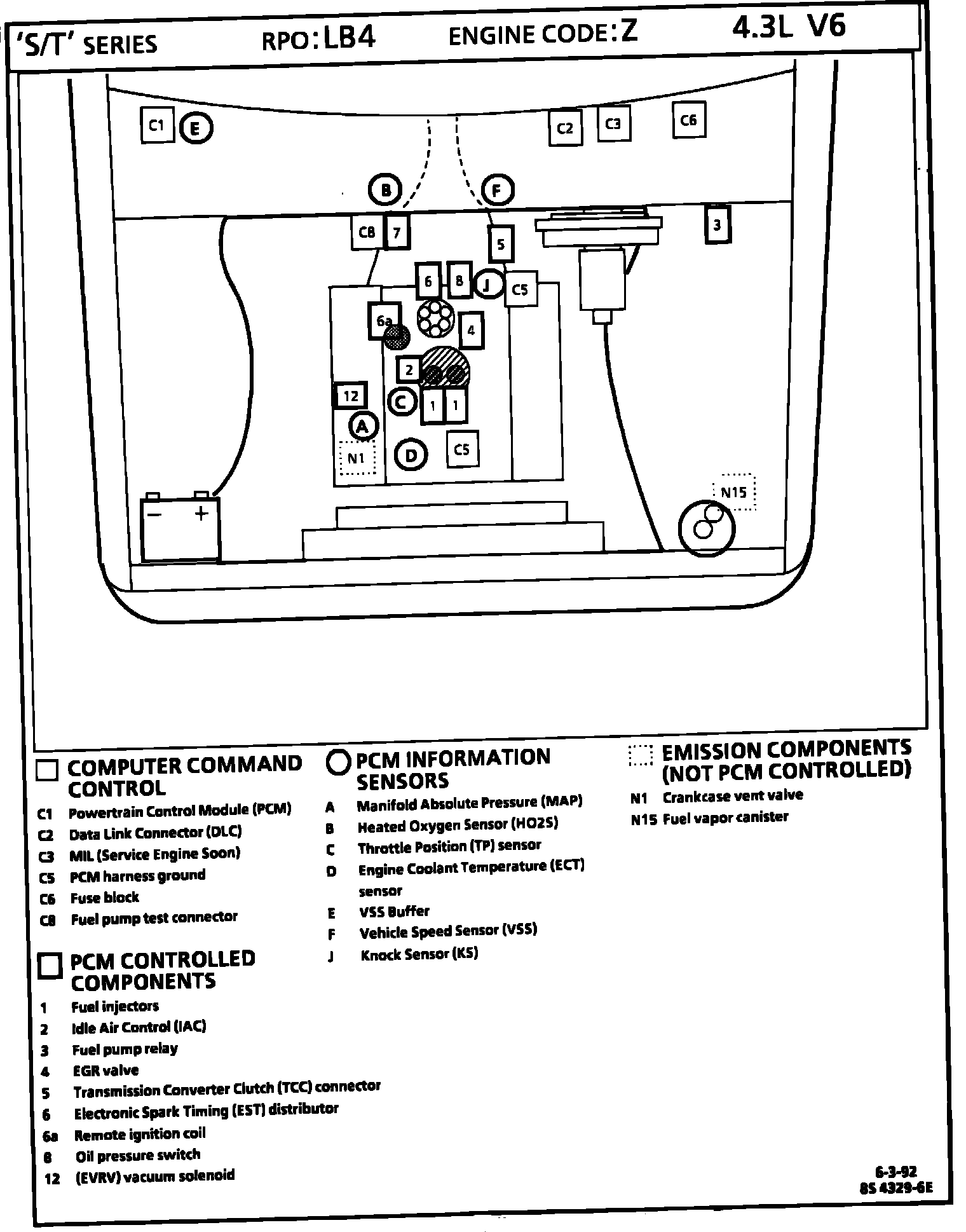

Underhood Block Diagram:
