GMC Truck
>>
1993
>>
S15/T15 4WD P/U V6-262 4.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
System Diagram
>>
With VCM
With VCM

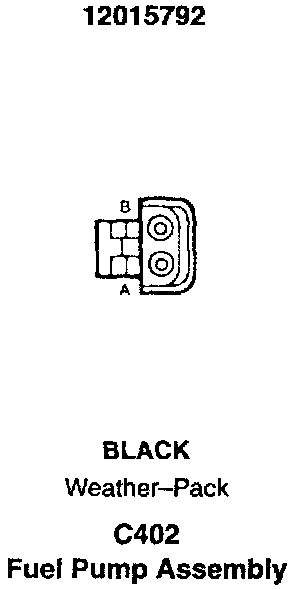

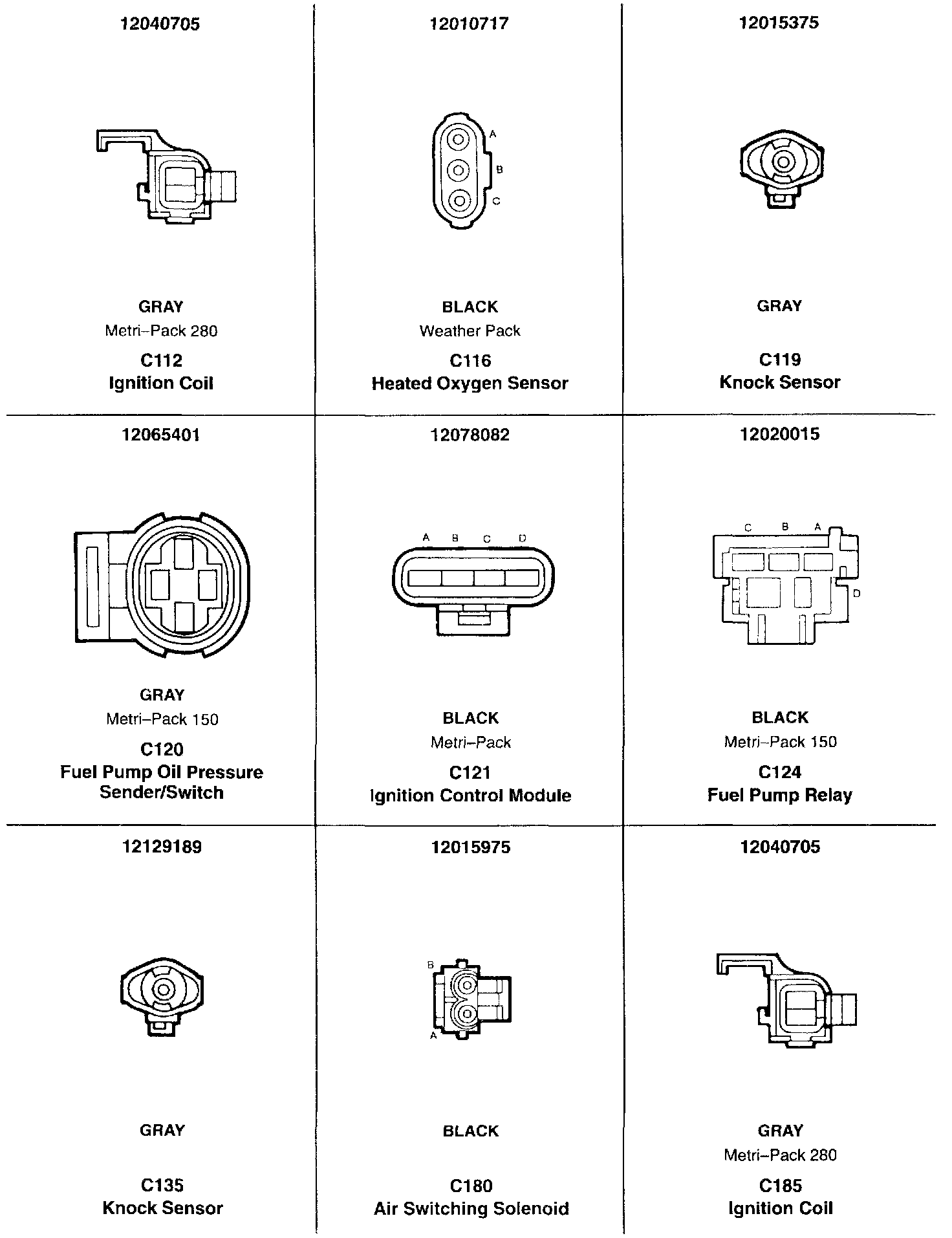

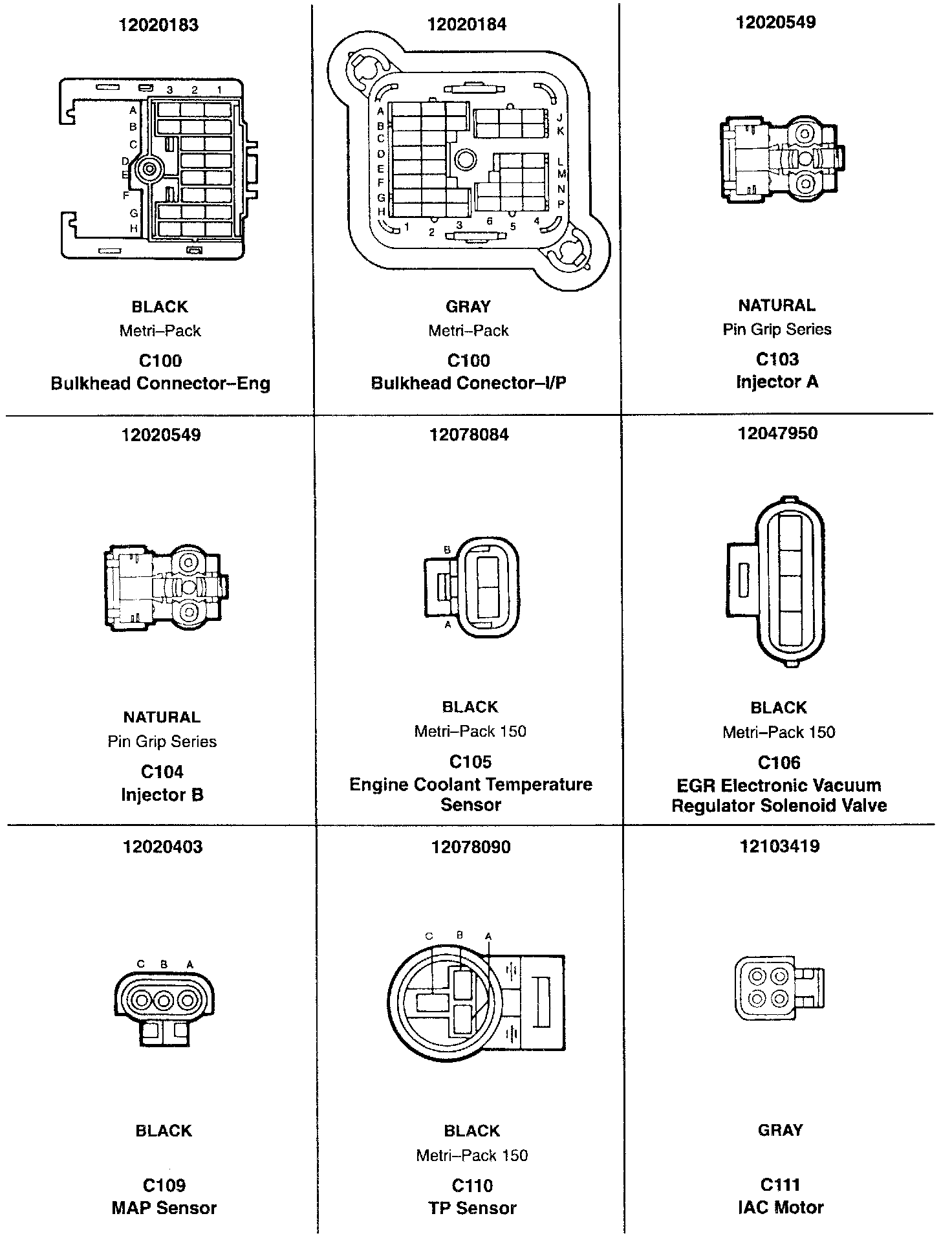

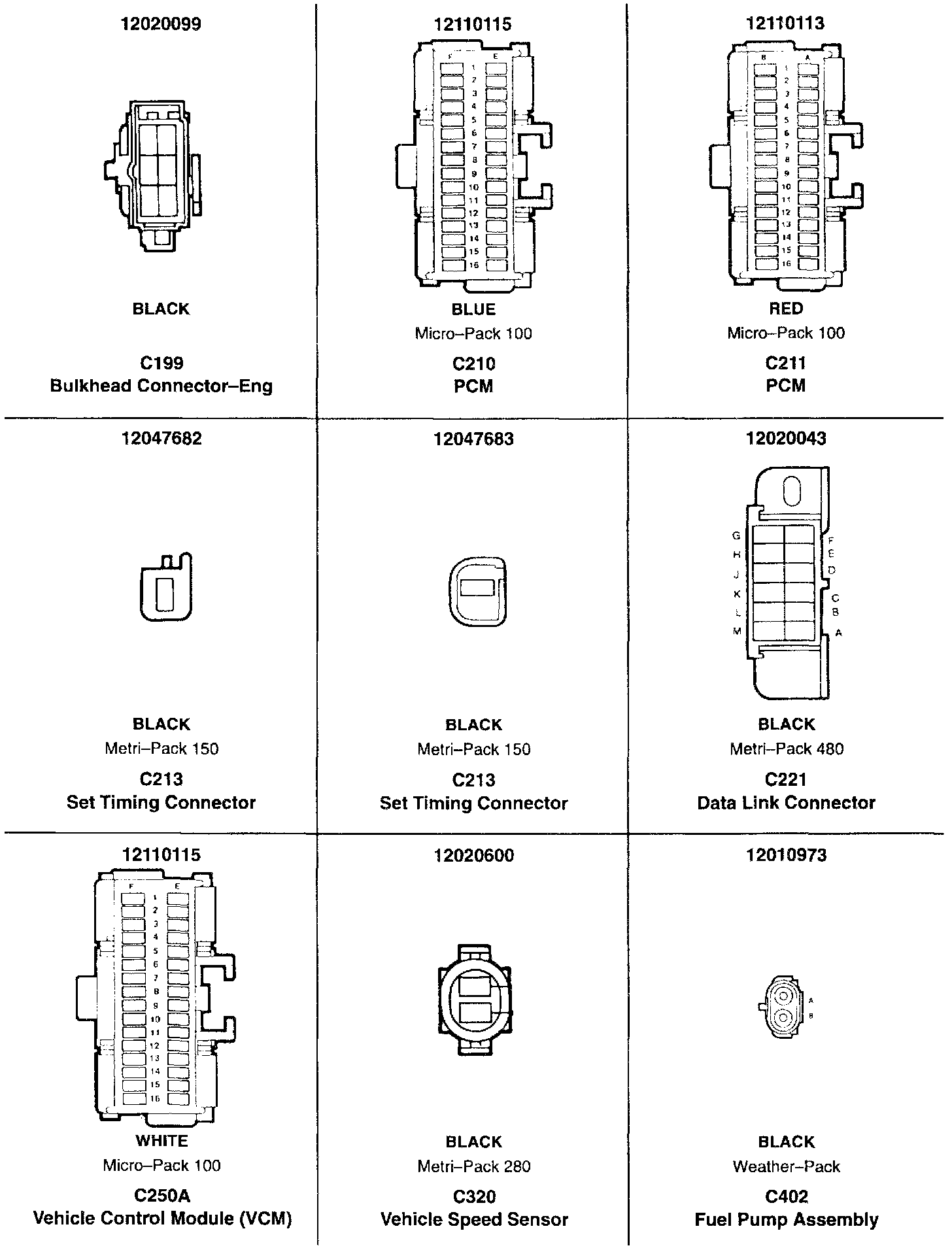

Connector Views:
Connector Views:
Connector Views:
Connector Views:
