Home >> GMC Truck >> 1993 >> S15/T15 4WD Jimmy V6-262 4.3L VIN W CPI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Dimension & Clearance Specifications - Engine

Dimension & Clearance Specifications - Engine

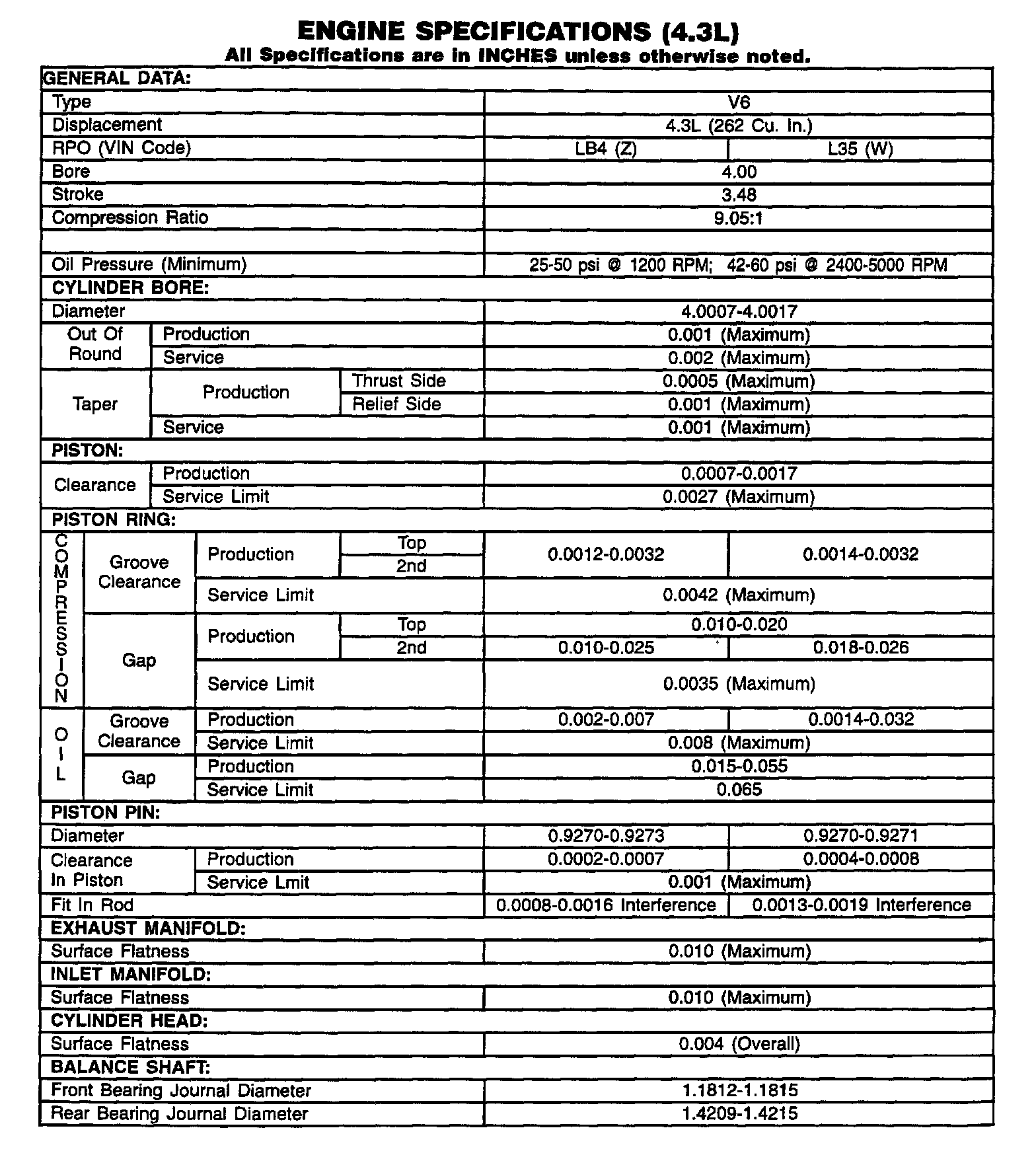

Engine Specifications:

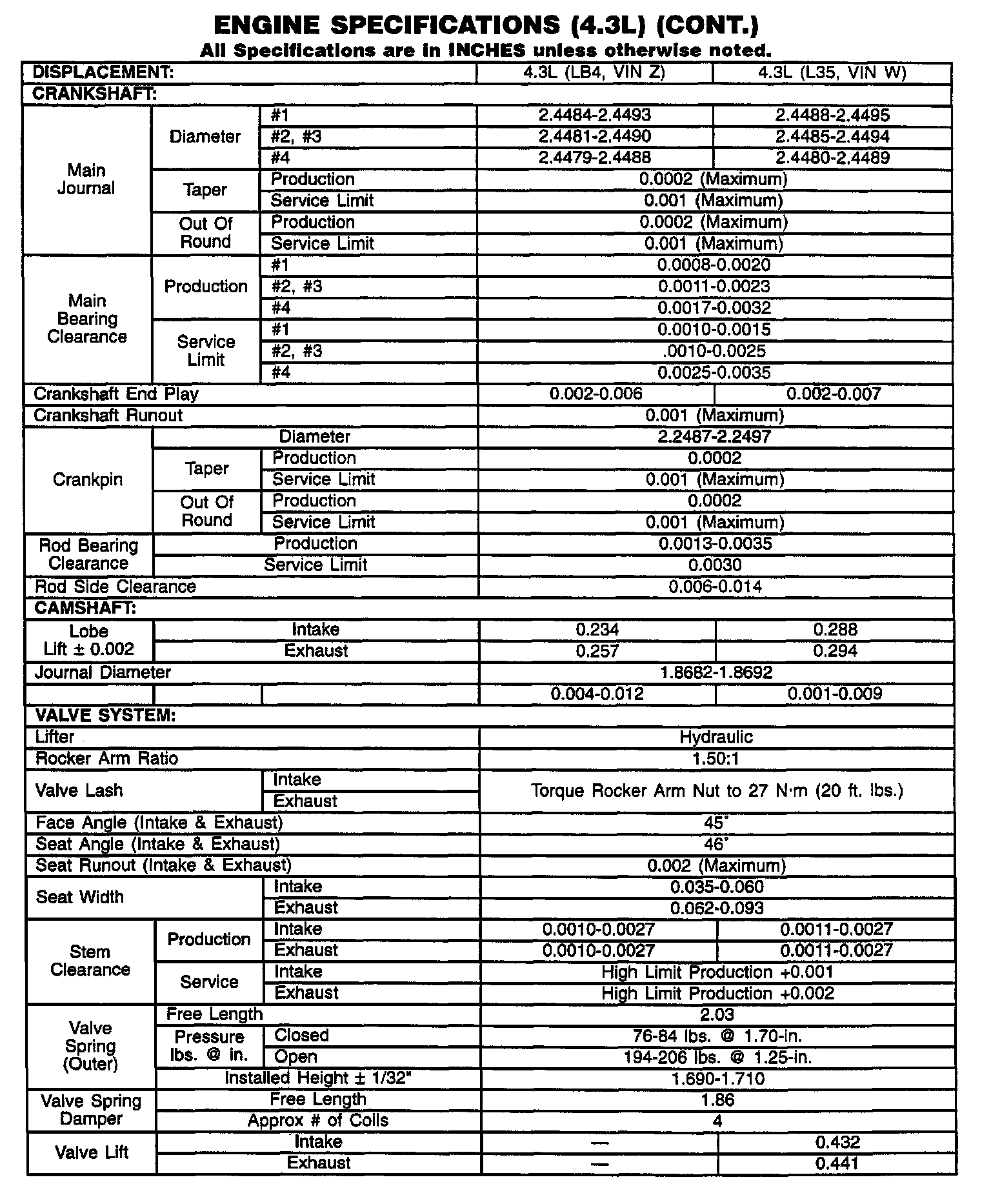

Continued Engine Specifications:
