GMC Truck
>>
1993
>>
S15/T15 4WD Jimmy V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Intake Manifold
Intake Manifold

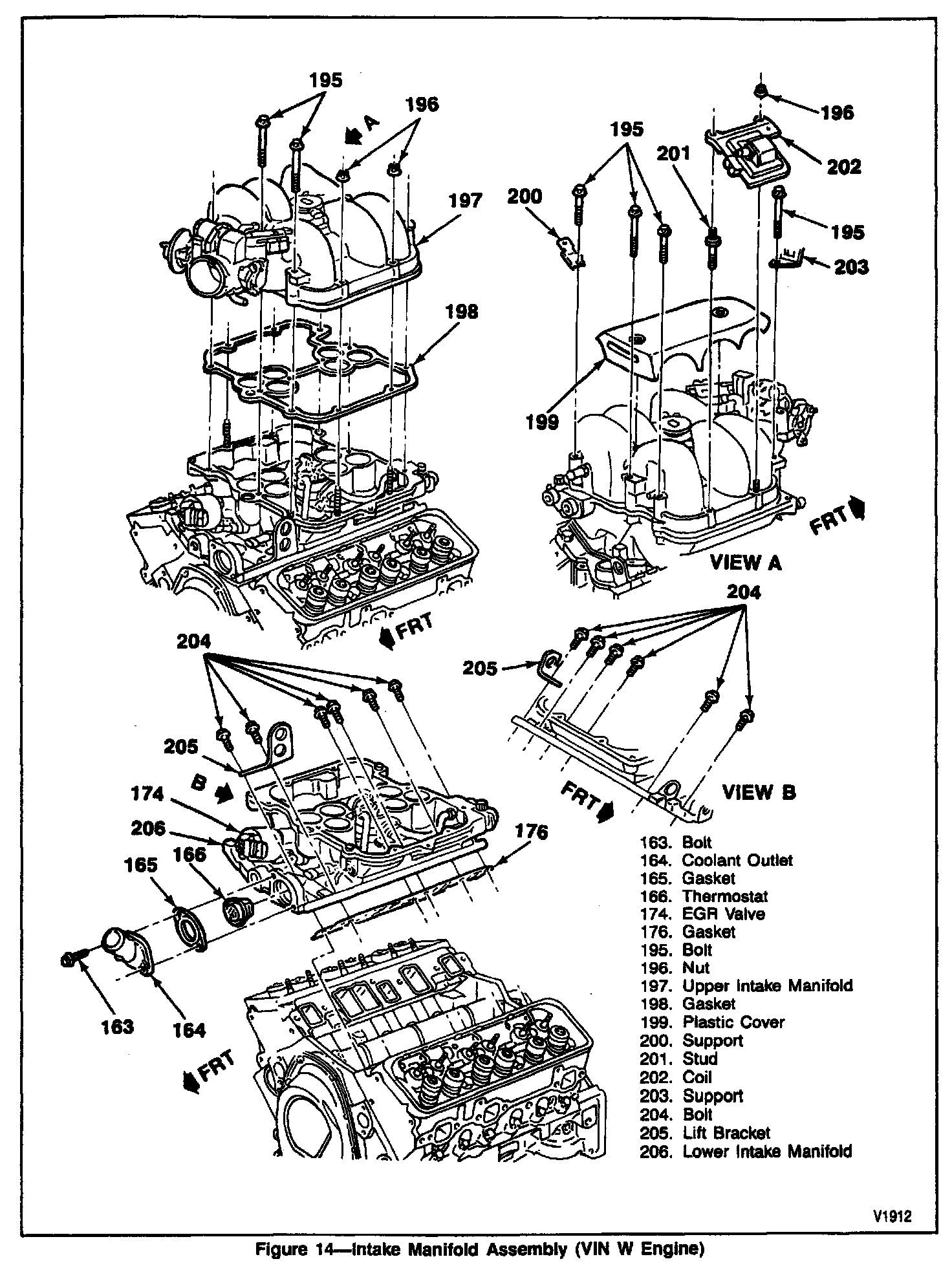

Fig. 14:
