Home >> GMC Truck >> 1993 >> S15/T15 2WD P/U L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

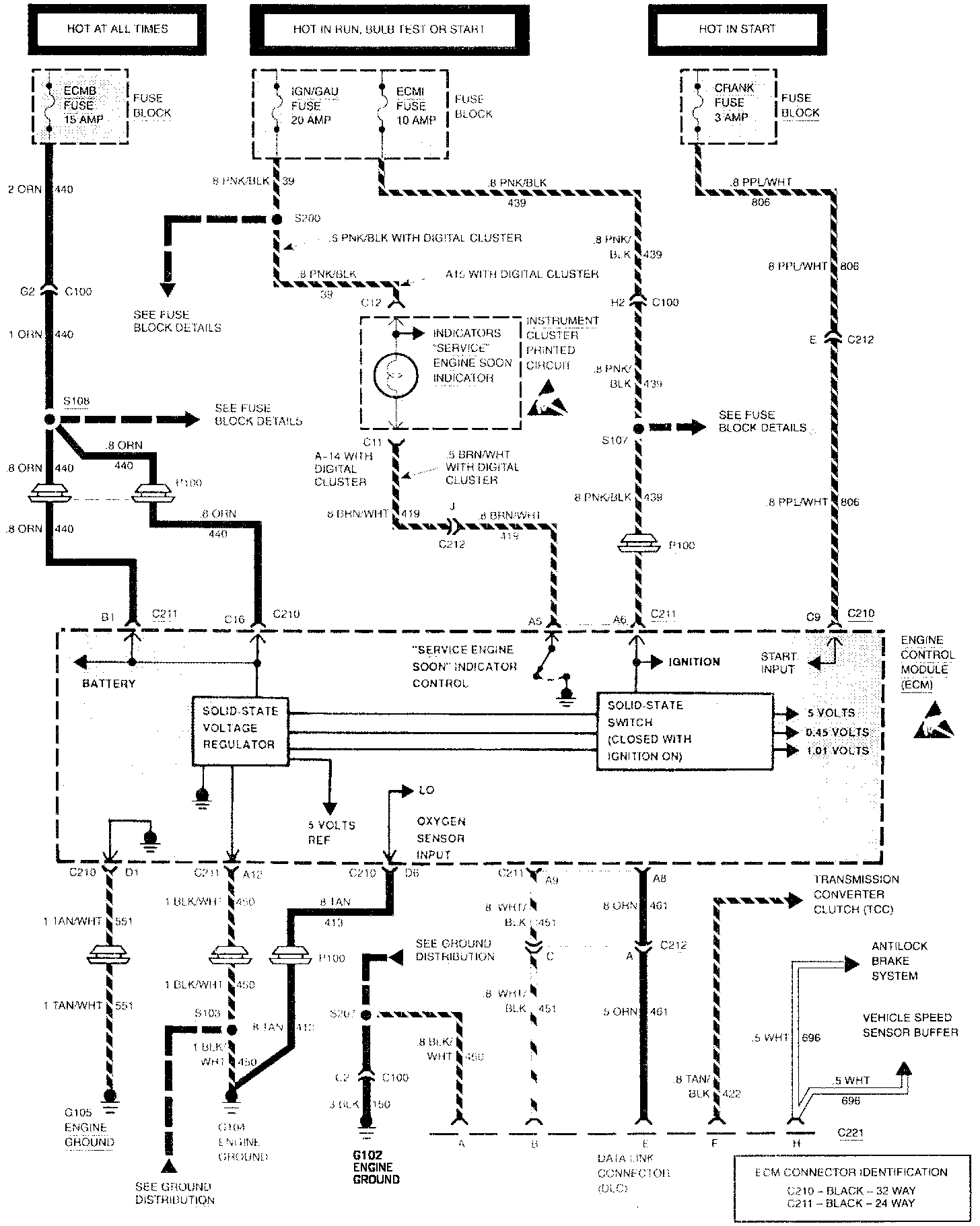

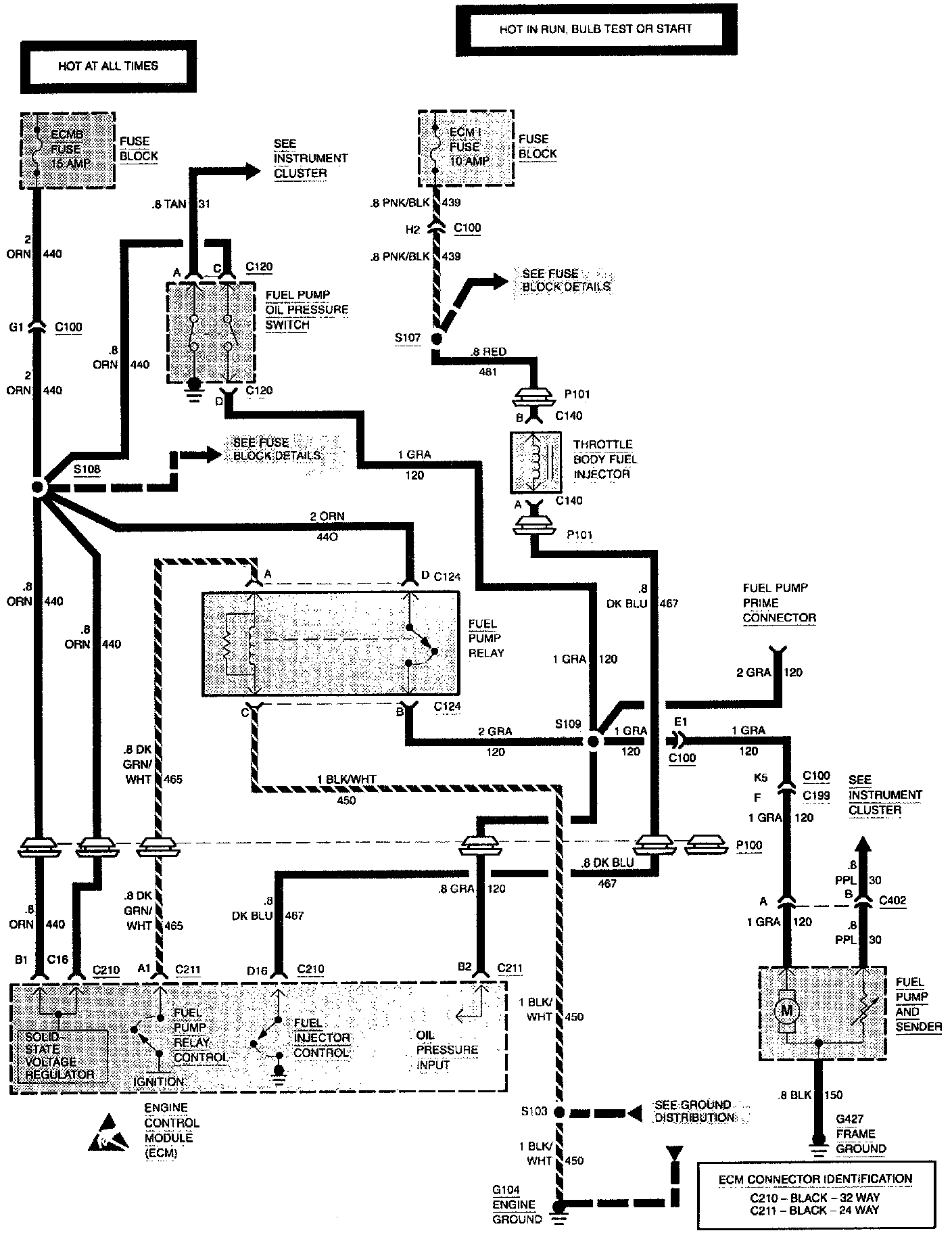

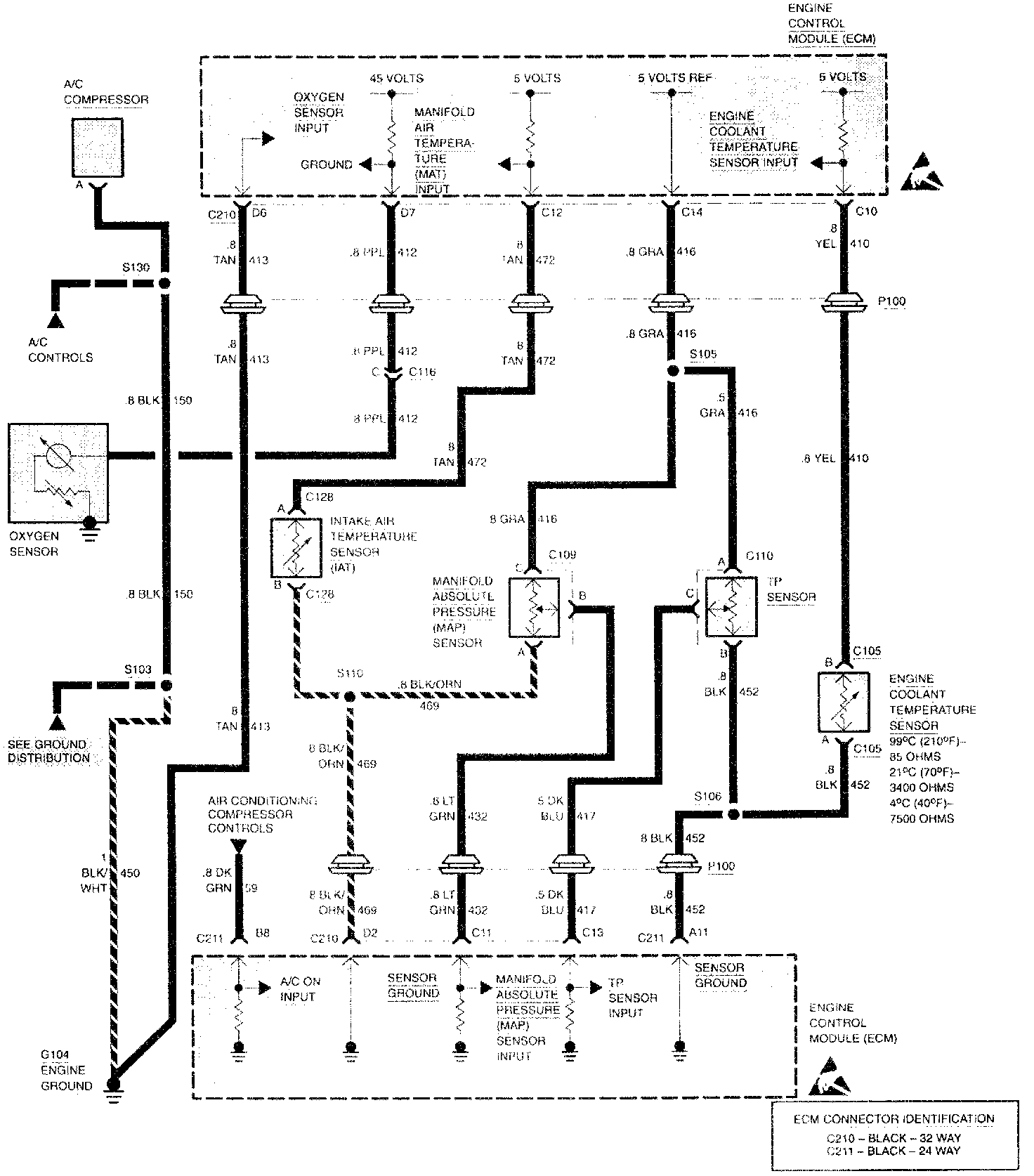

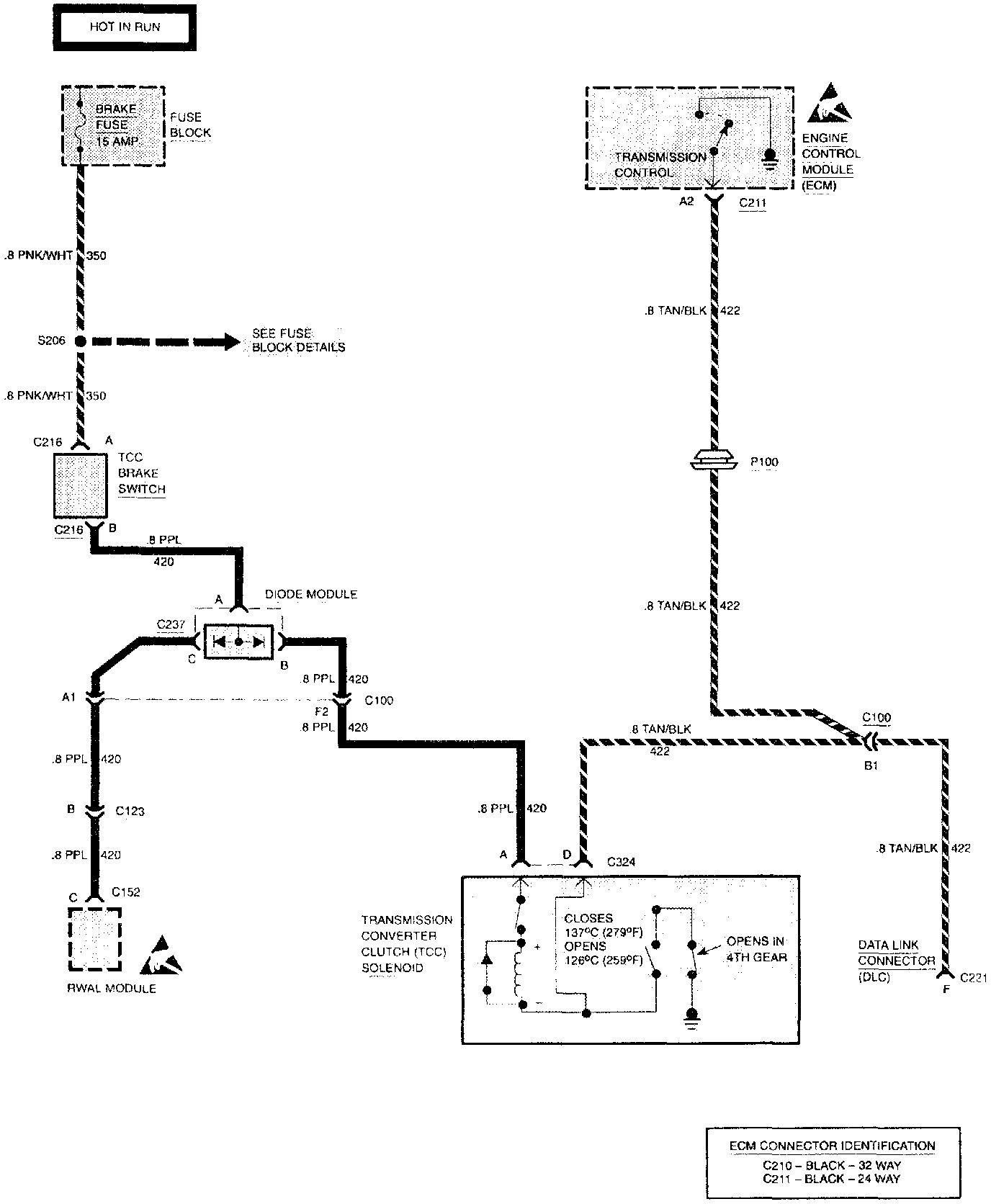

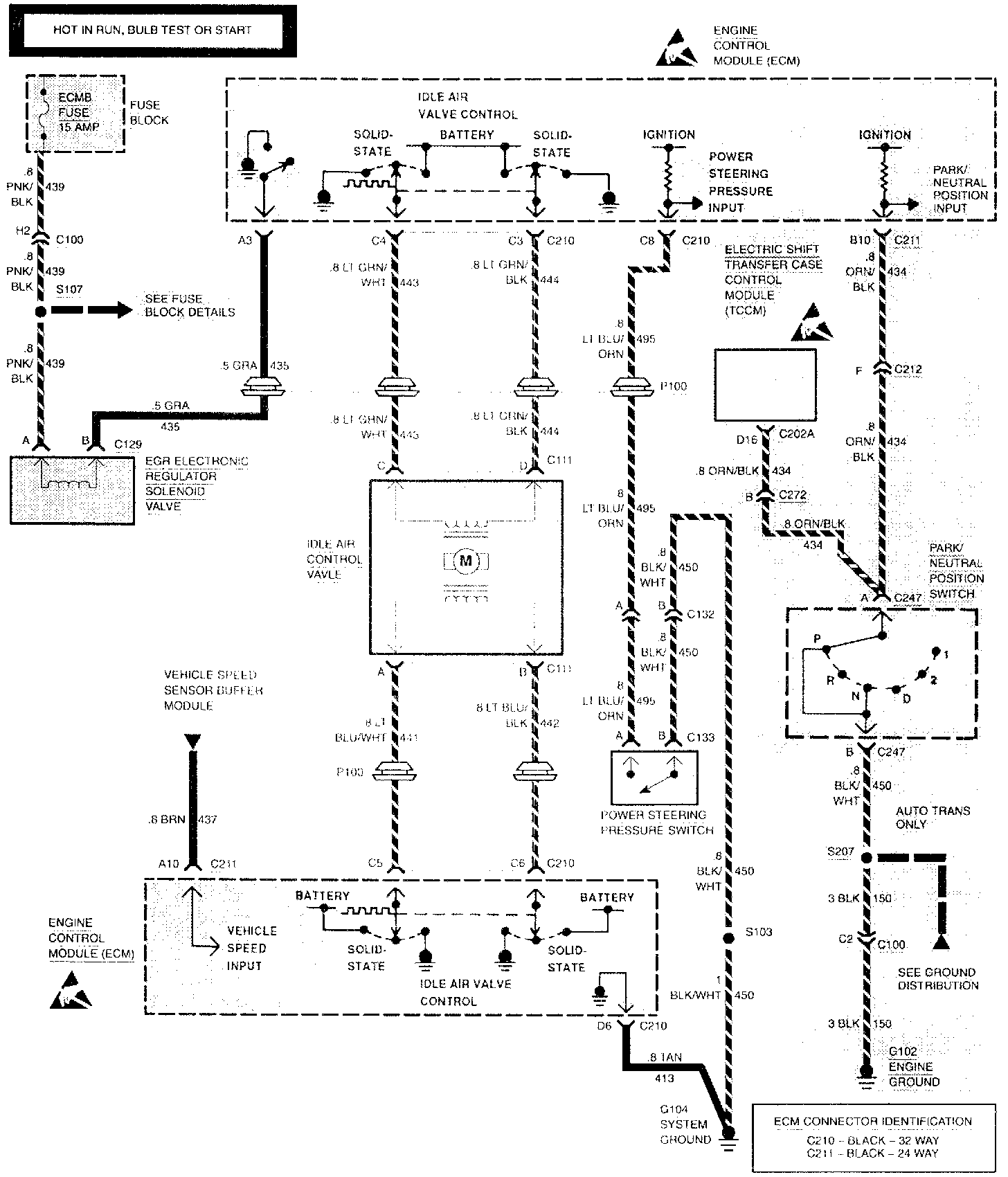

Engine Controls

Engine Controls:

Engine Controls:

Engine Controls:

Engine Controls:

Engine Controls:
