GMC Truck
>>
1993
>>
S15/T15 2WD P/U L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

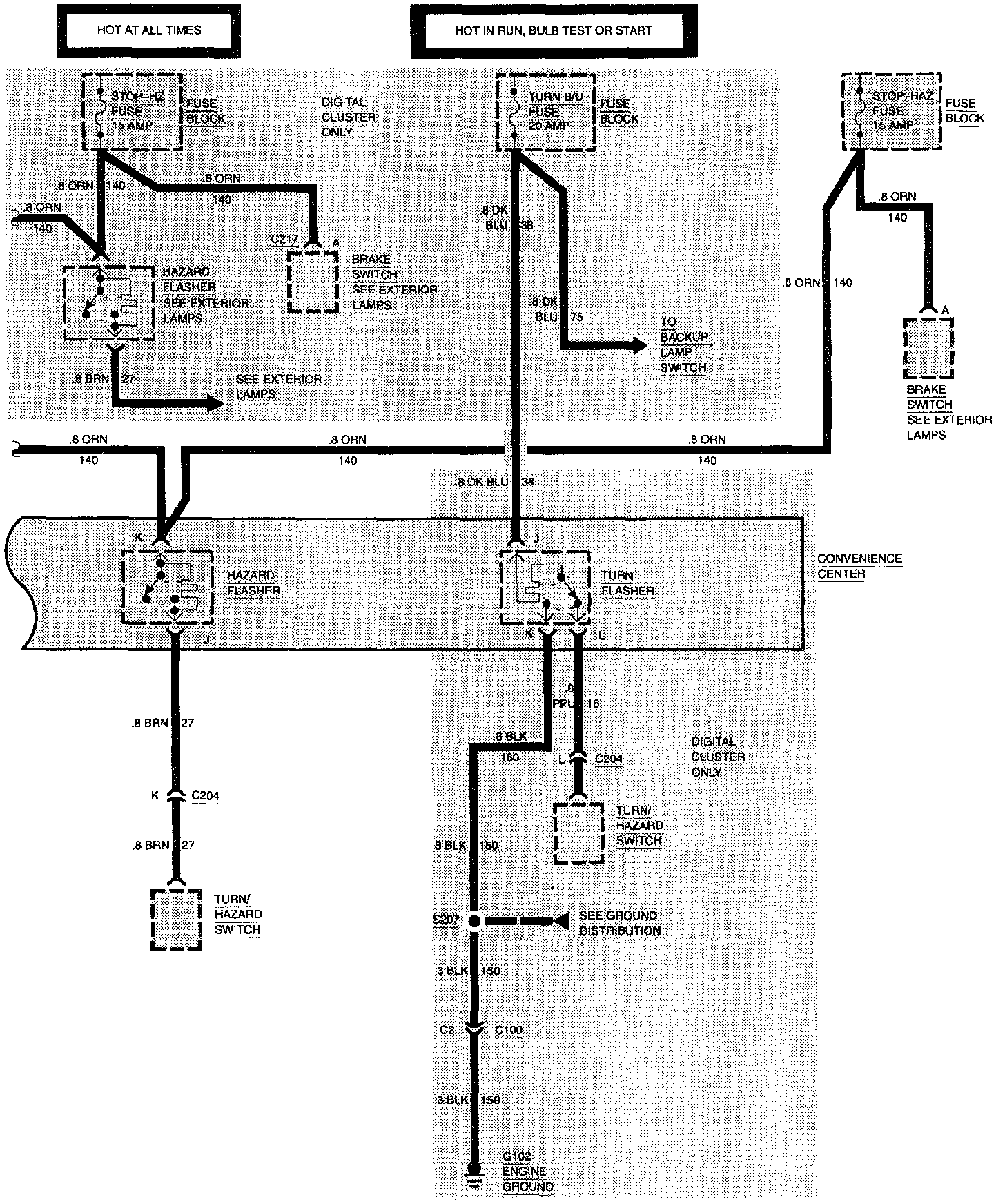

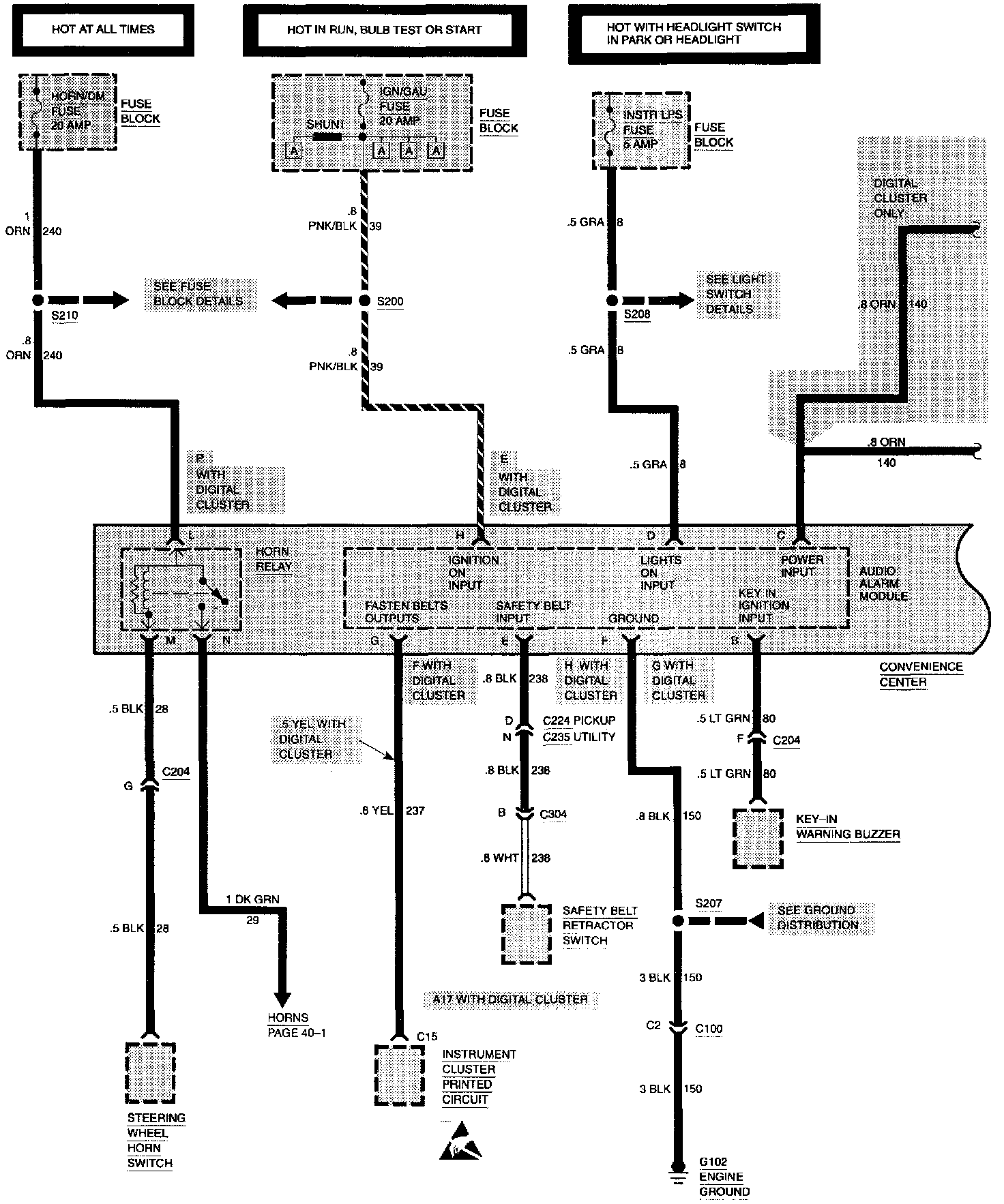

Convenience Center Details:
Convenience Center Details:
