Home
>>
GMC Truck
>>
1993
>>
S15/T15 2WD P/U L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Diagrams
>>
Pickup
Pickup

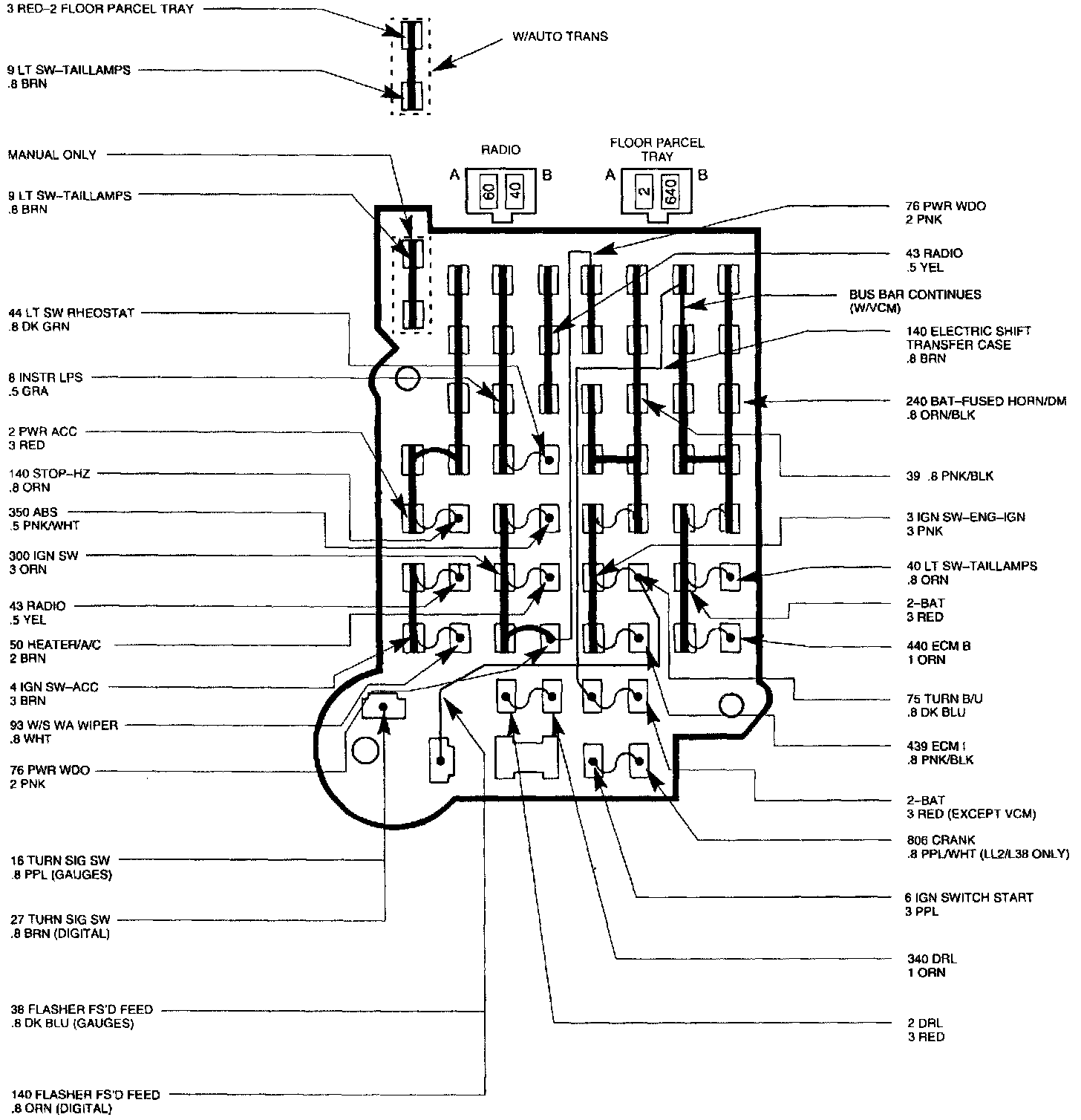

Fuse Block Details:

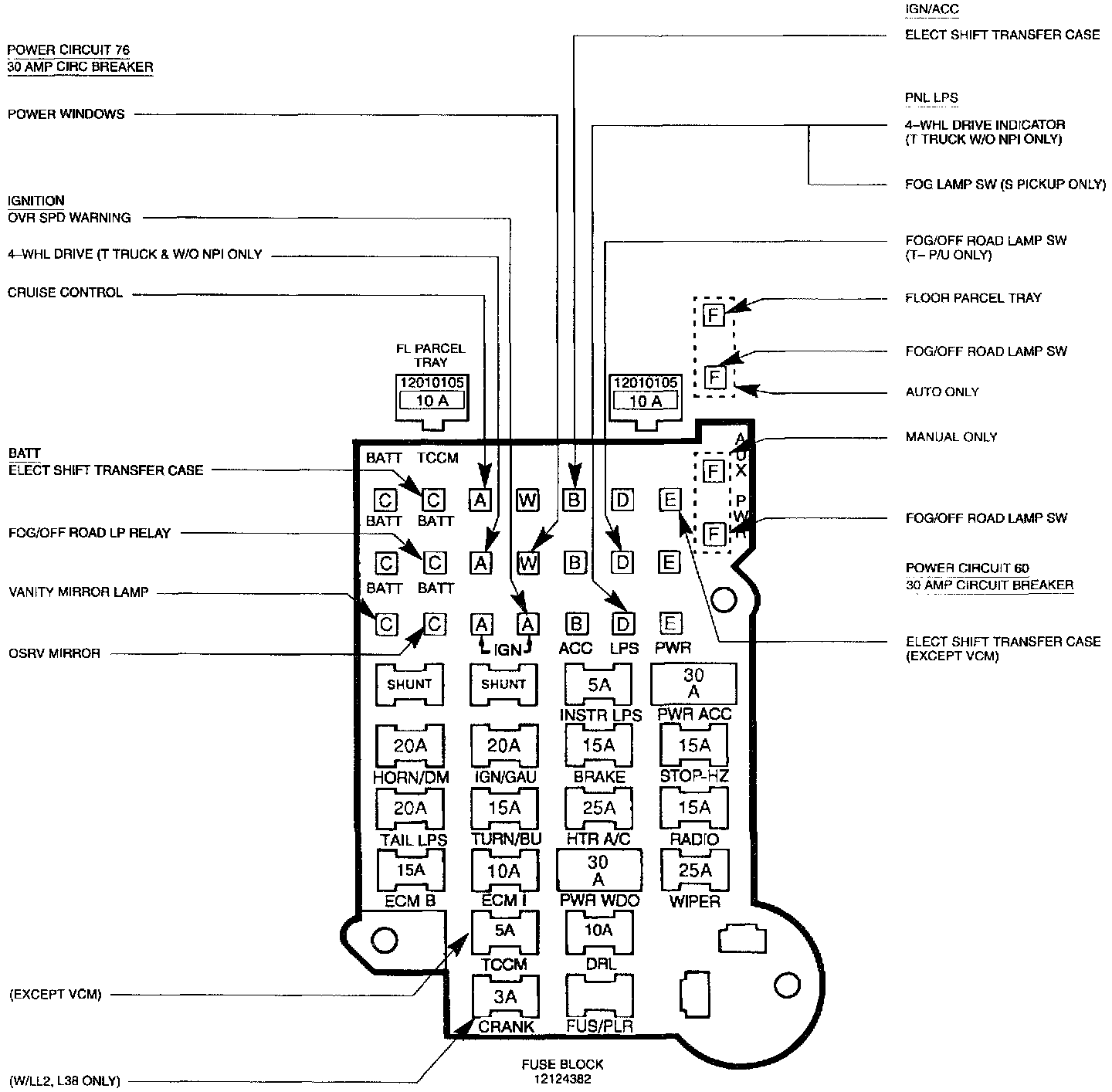

Fuse Block Details:
