Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
GMC Truck
>>
1993
>>
S15/T15 2WD P/U L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Ground
Ground

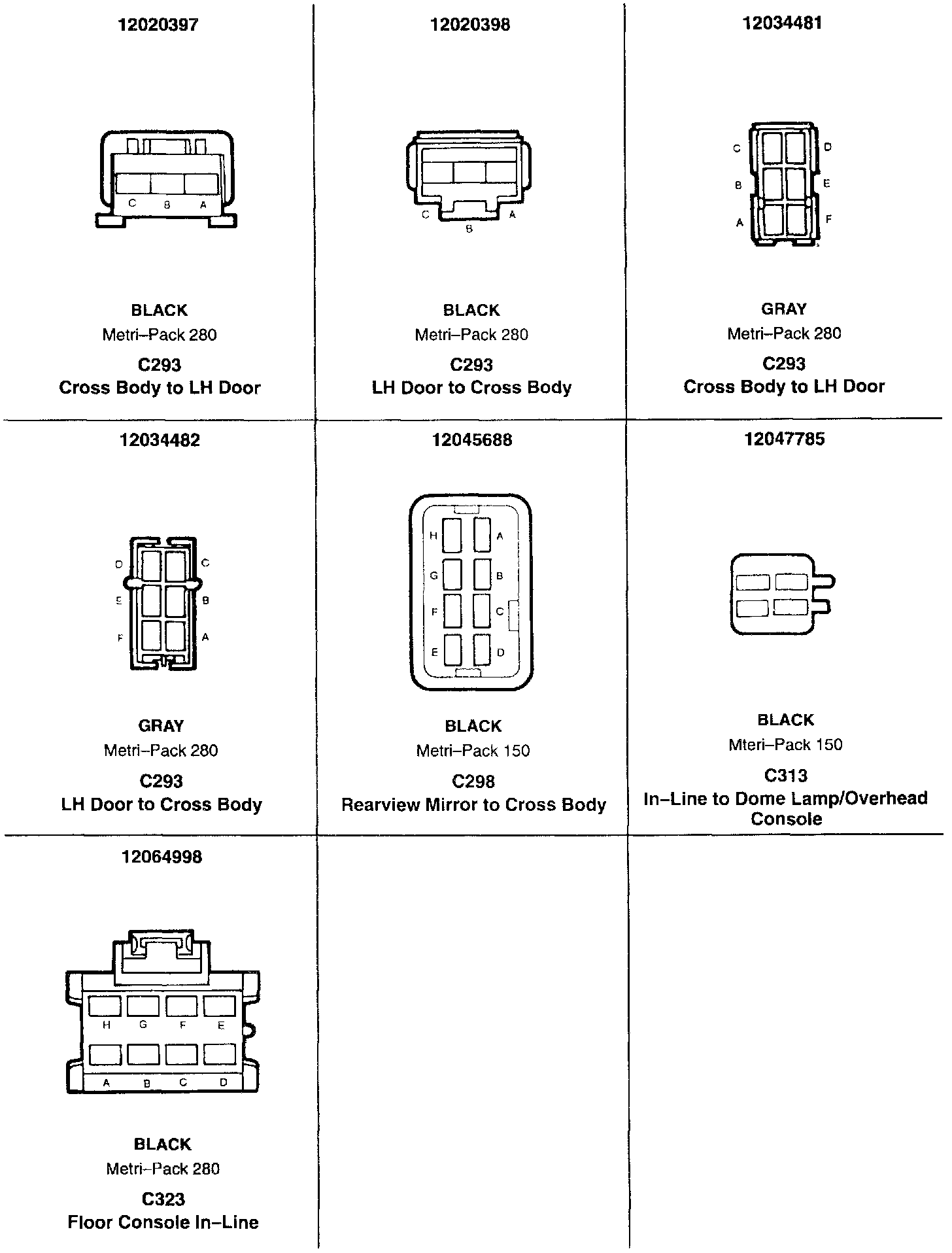

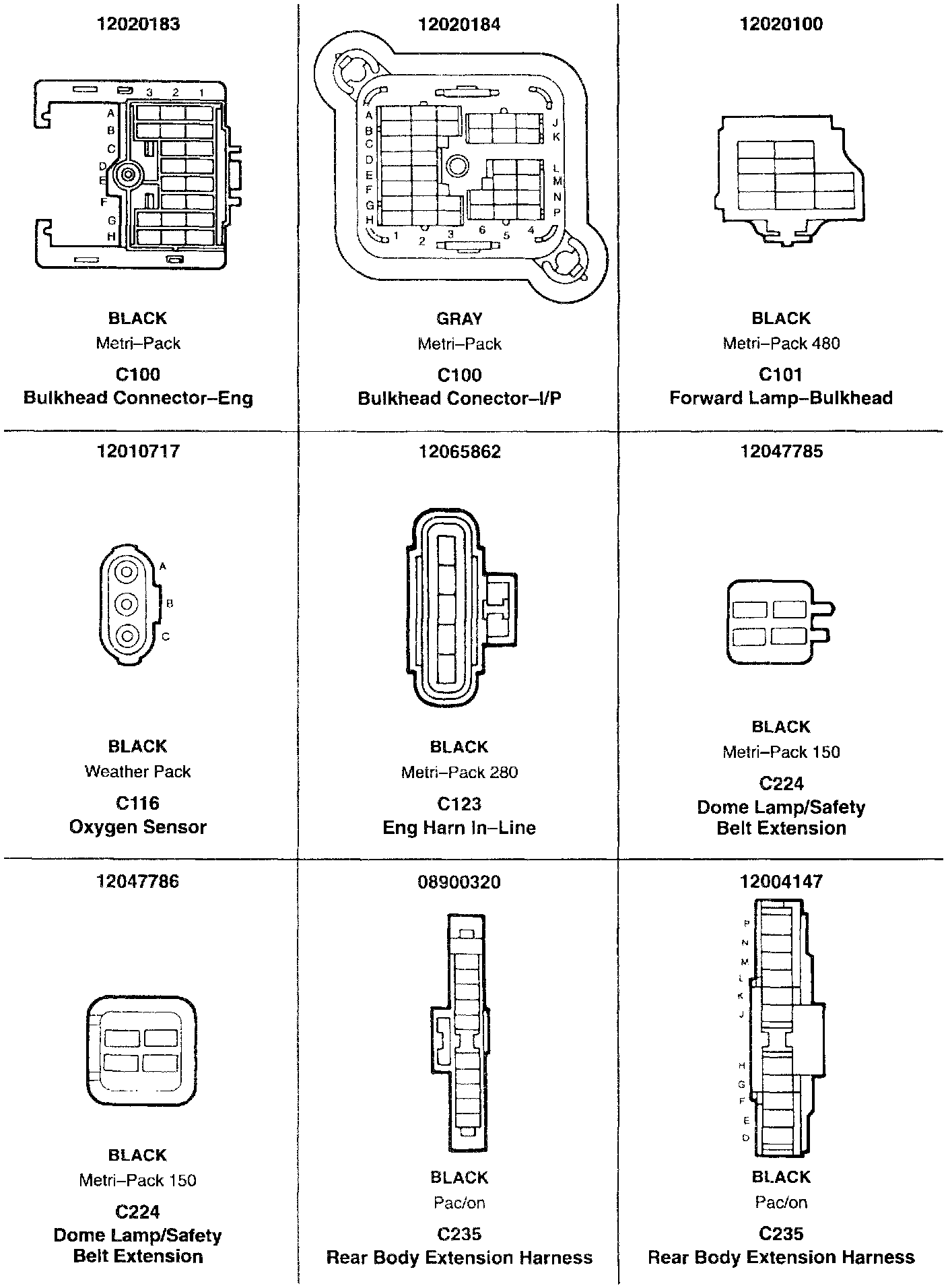

Connector Views:
Connector Views:
