GMC Truck
>>
1993
>>
S15/T15 2WD P/U L4-151 2.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Connector Views
>>
Exterior Lights
Exterior Lights

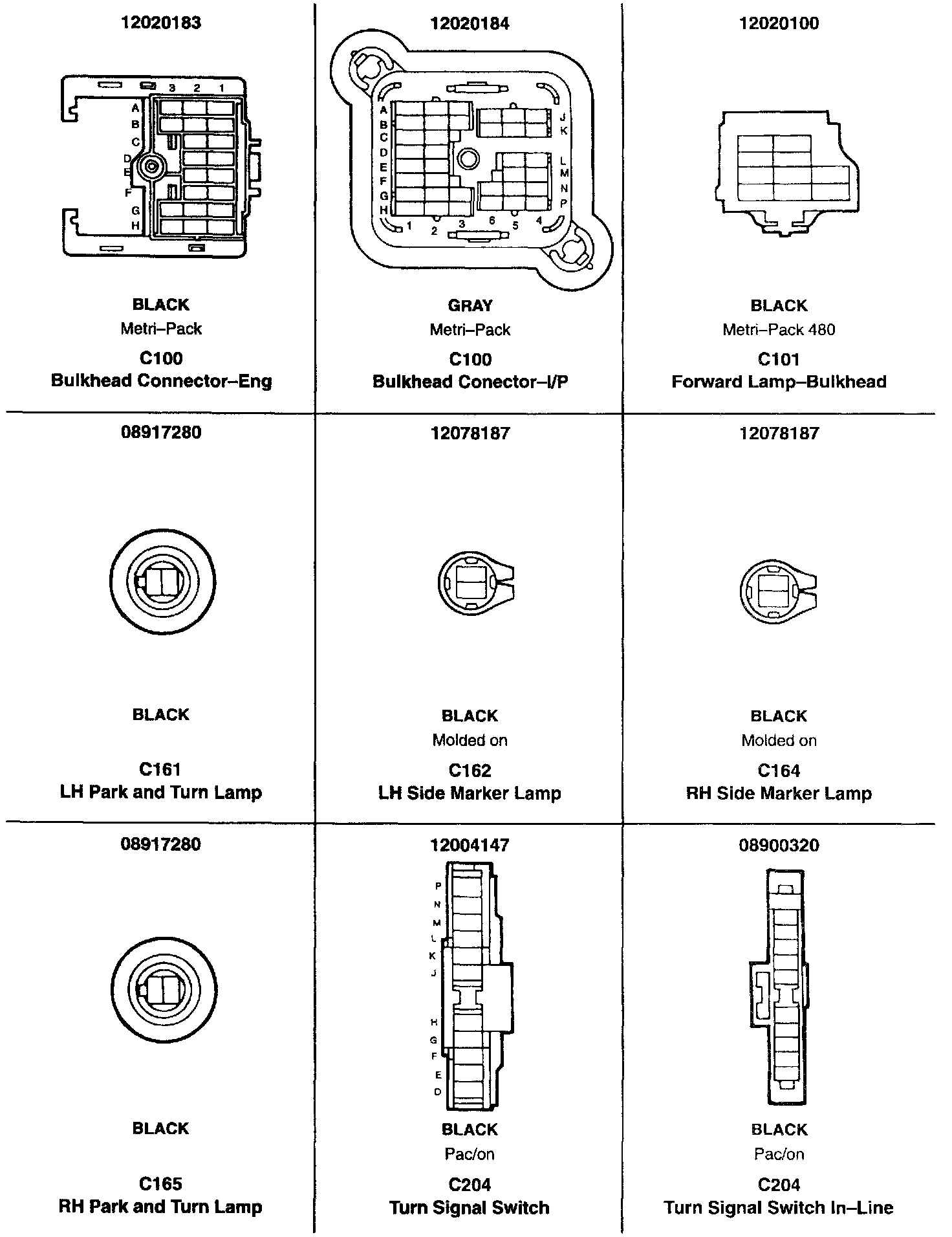

Connector Views:

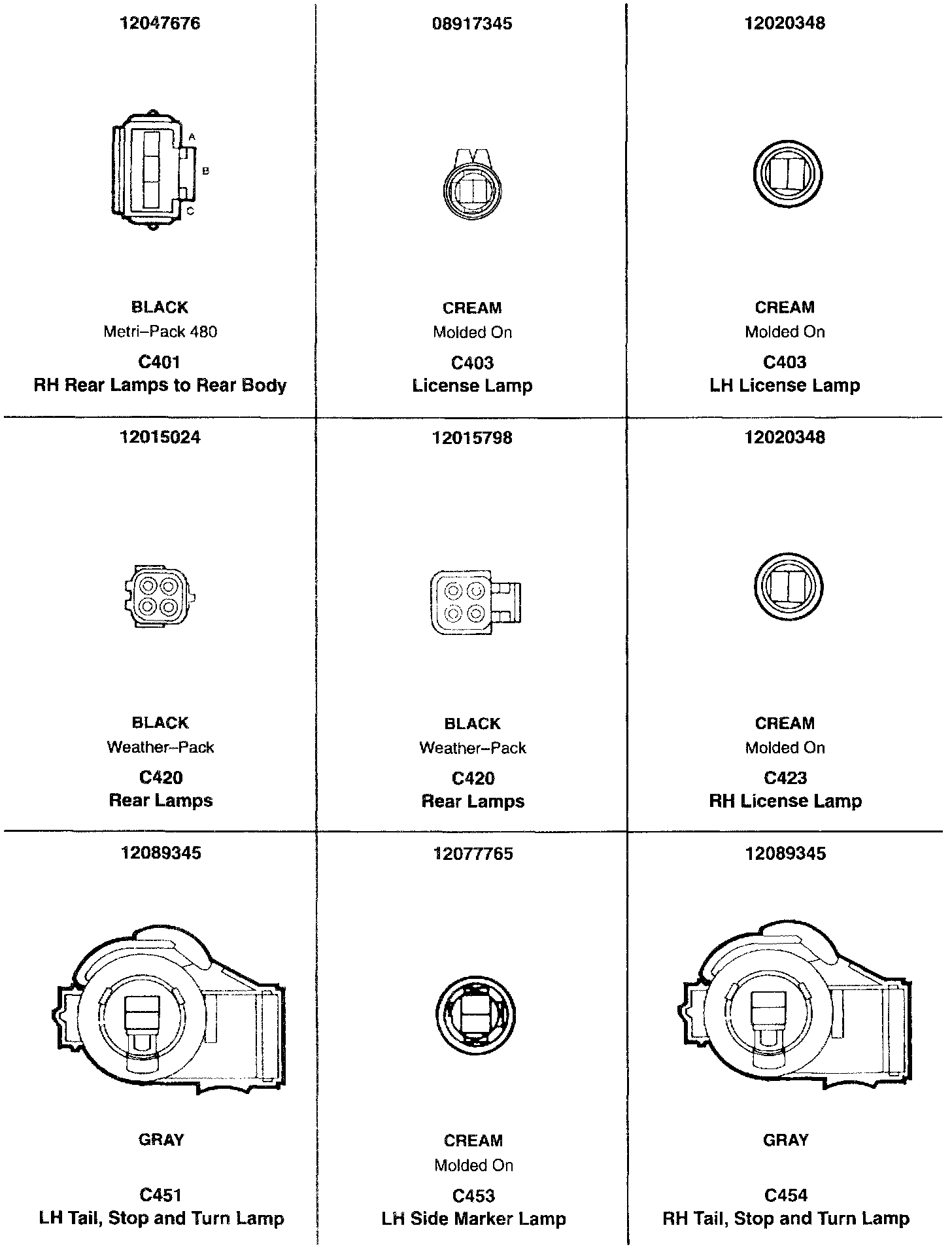

Connector Views:

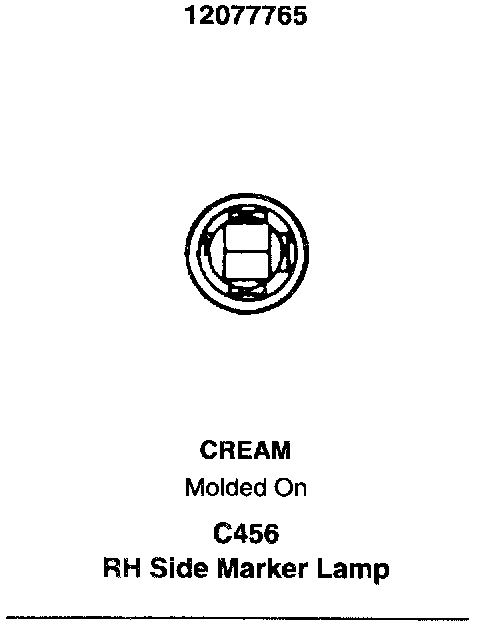

Connector Views:
Connector Views:
