GMC Truck
>>
1993
>>
S15/T15 2WD P/U L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>

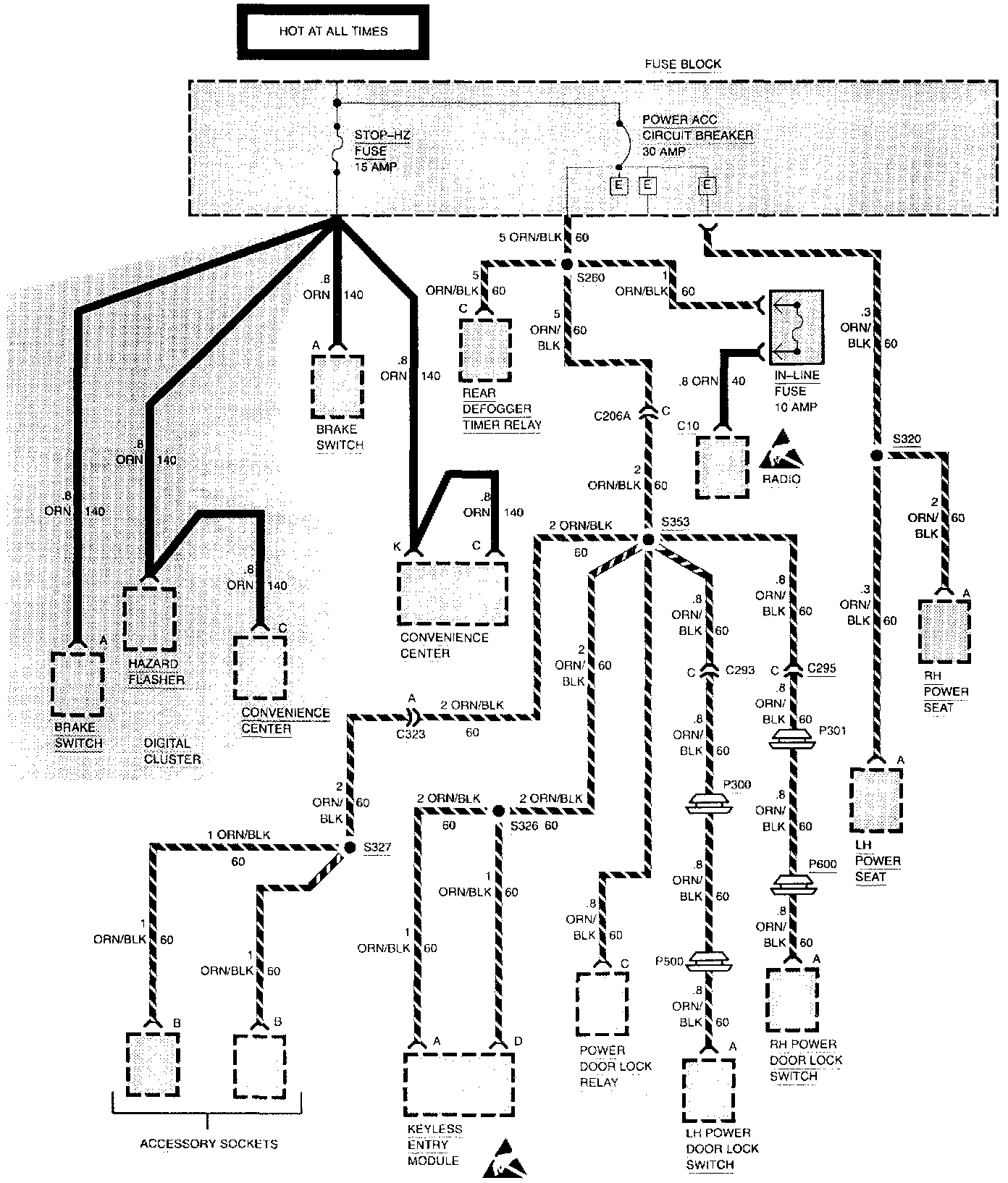

Stop/HZ Fuse, and PWR ACC Circuit Breaker
Stop/HZ Fuse, and PWR ACC Circuit Breaker
Fuse Block Details:
