Wiring Diagram

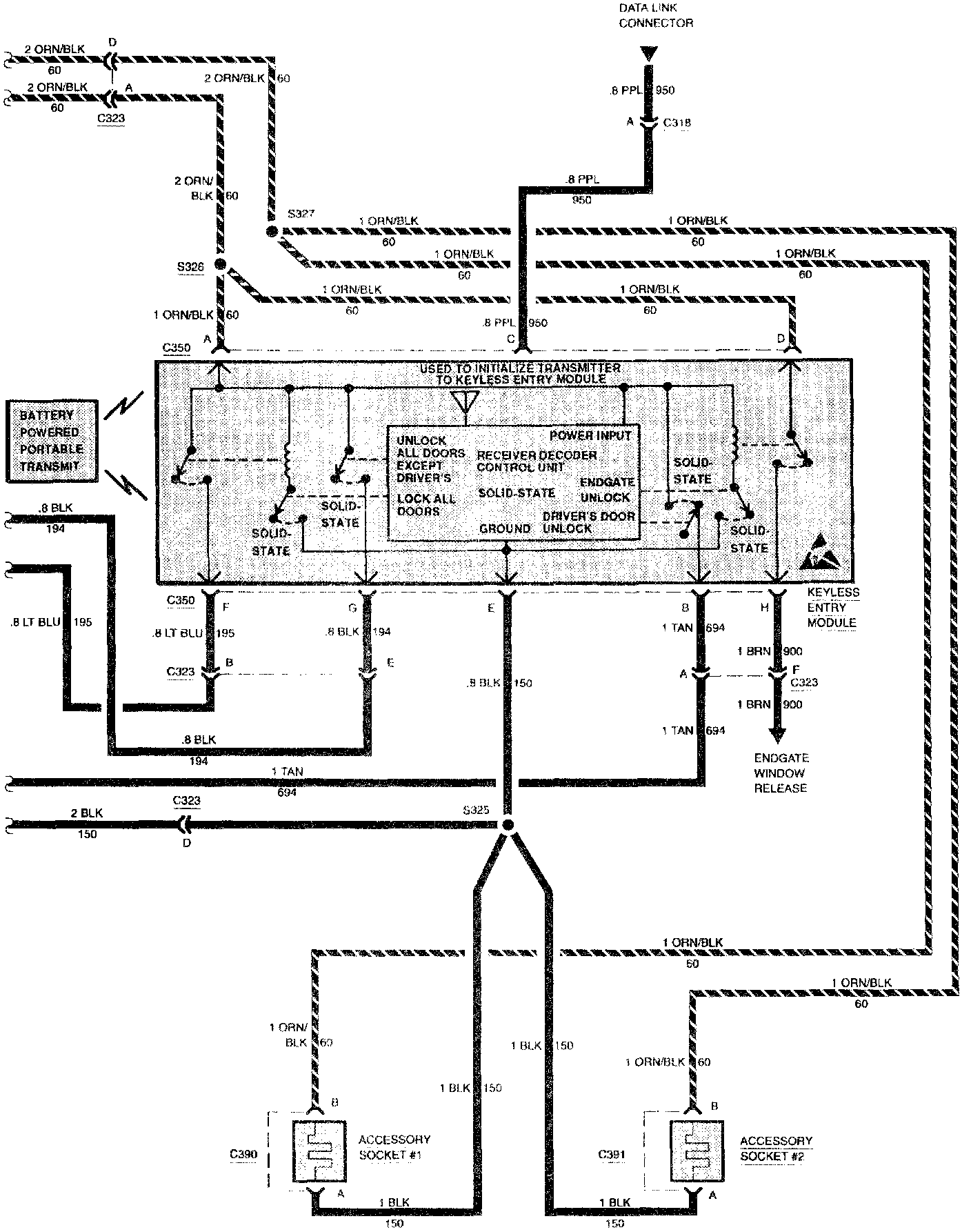

Remote Keyless Entry:

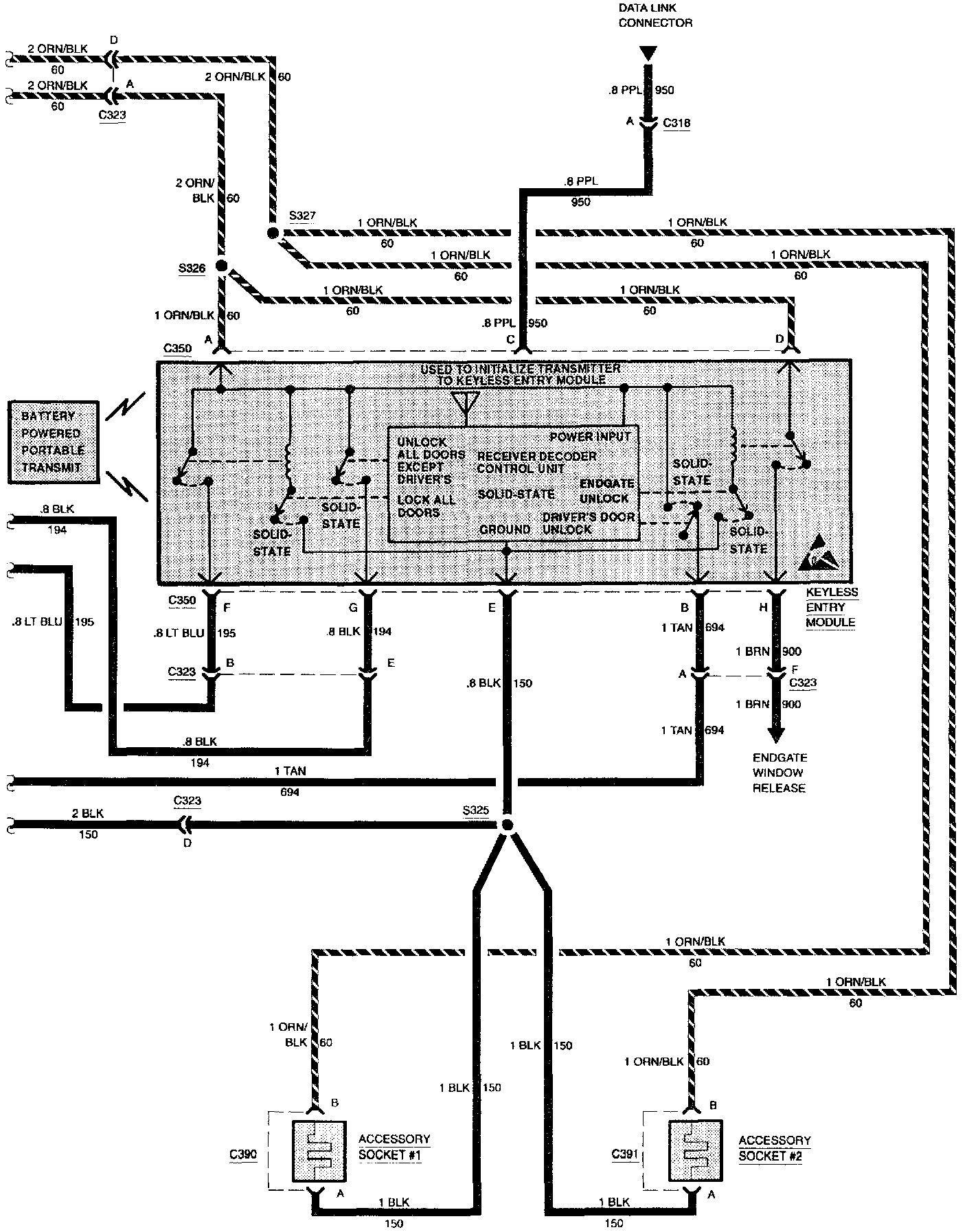

Remote Keyless Entry:

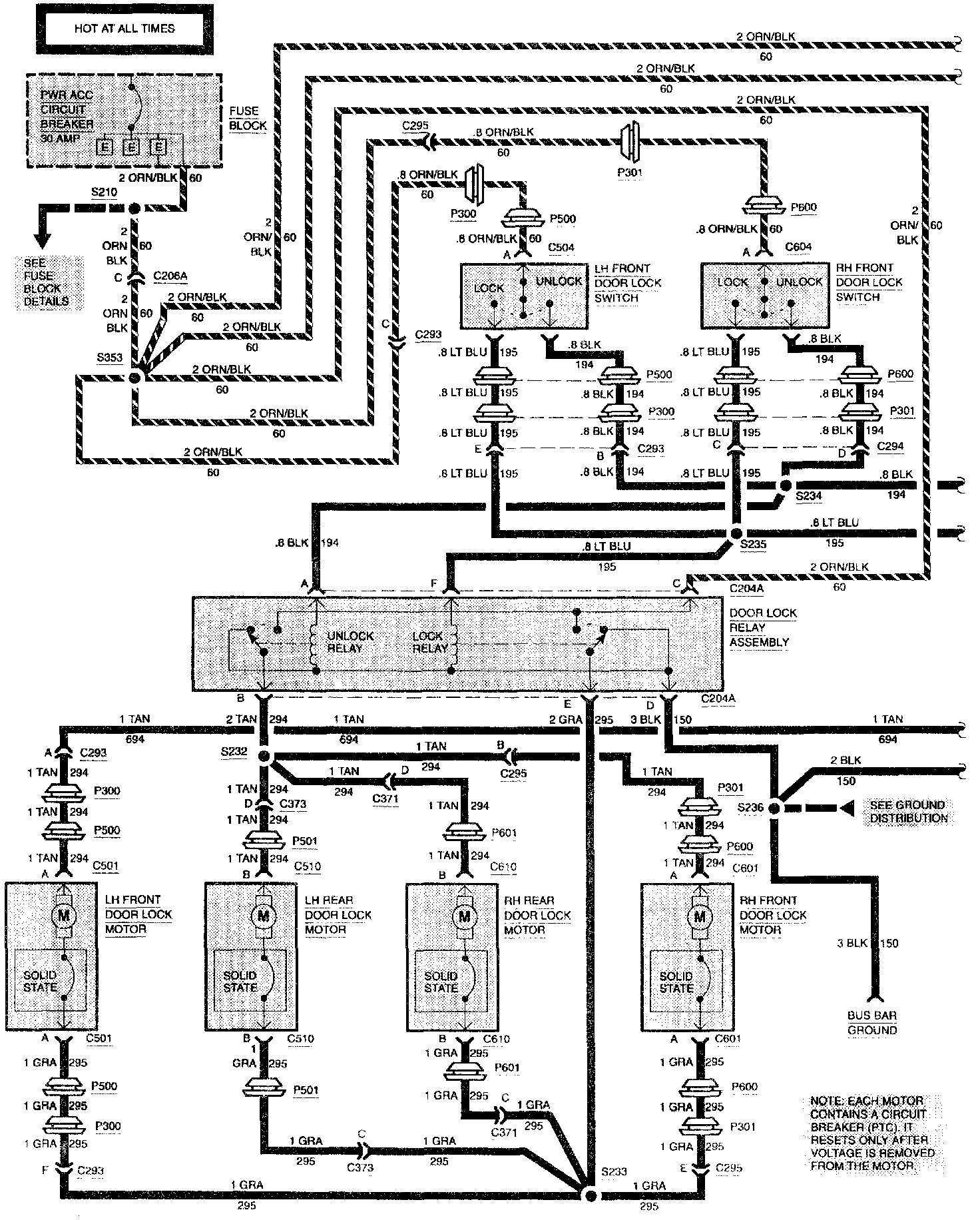

Remote Keyless Entry:



Remote Keyless Entry:
