GMC Truck
>>
1993
>>
S15/T15 2WD P/U L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>

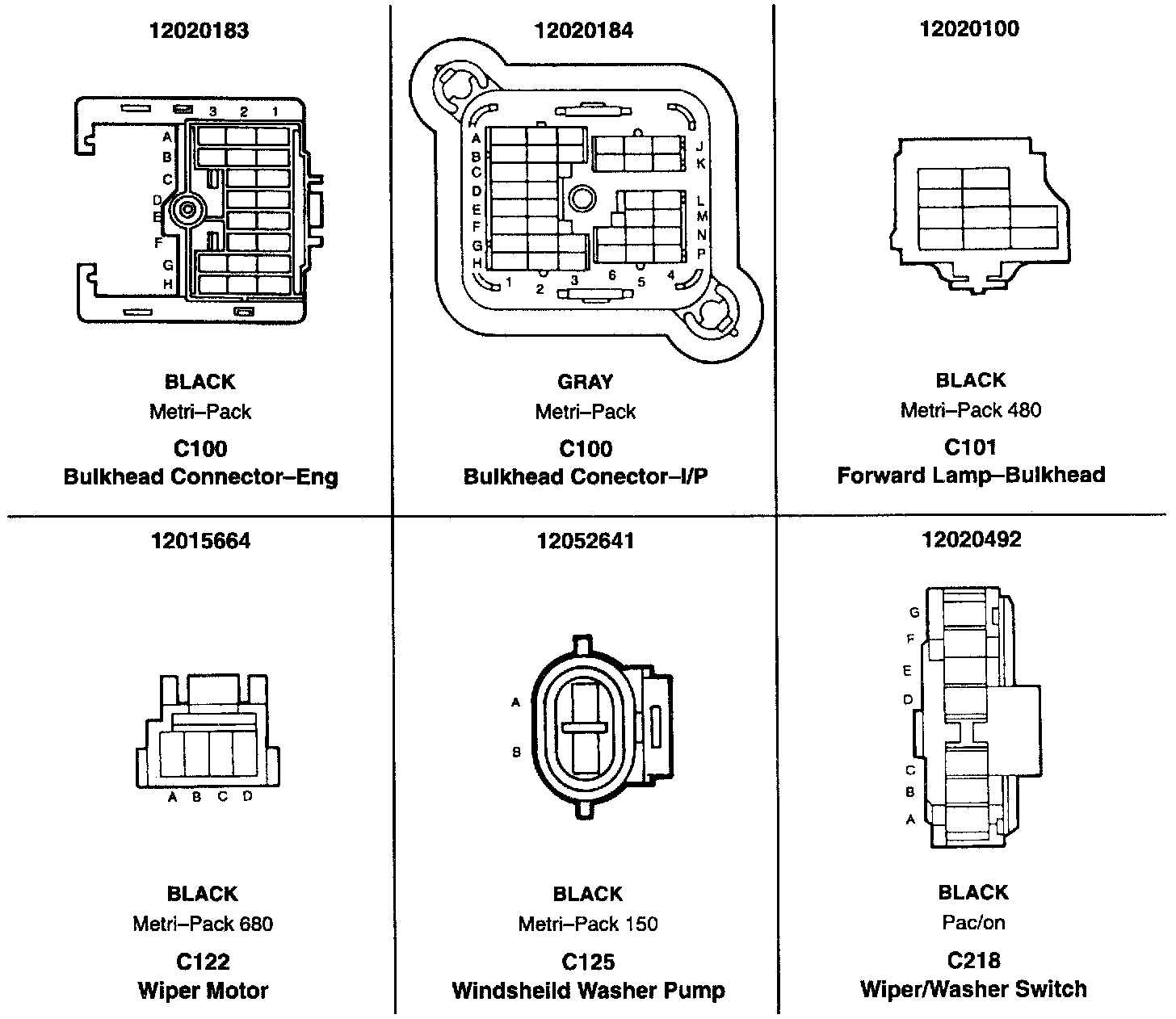

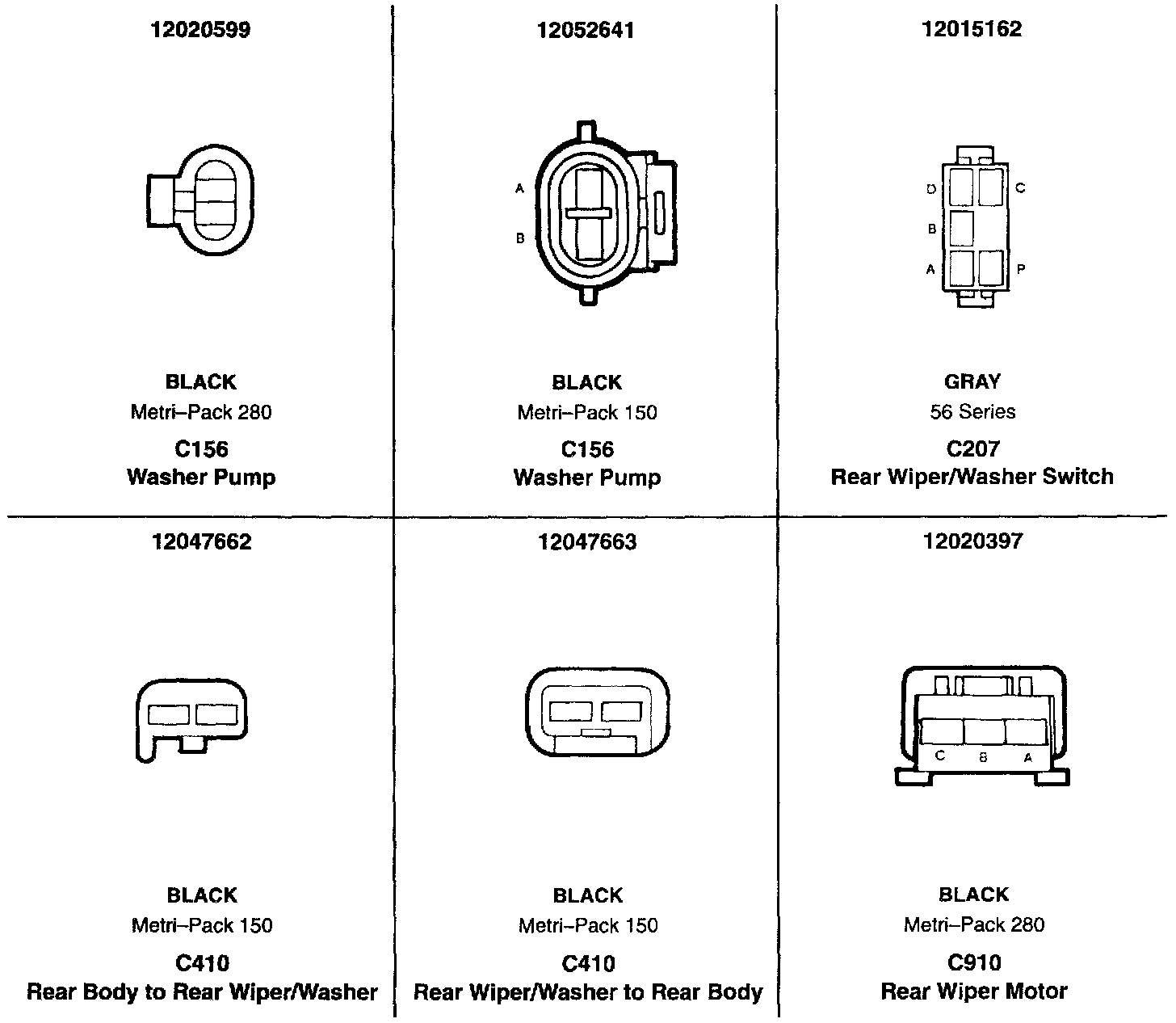

Connector Views
>>
Wiper and Washer Systems
Wiper and Washer Systems
Connector Views:
Connector Views:
