Home
>>
GMC Truck
>>
1993
>>
S15/T15 2WD P/U L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Without Daytime Running Lights
Without Daytime Running Lights

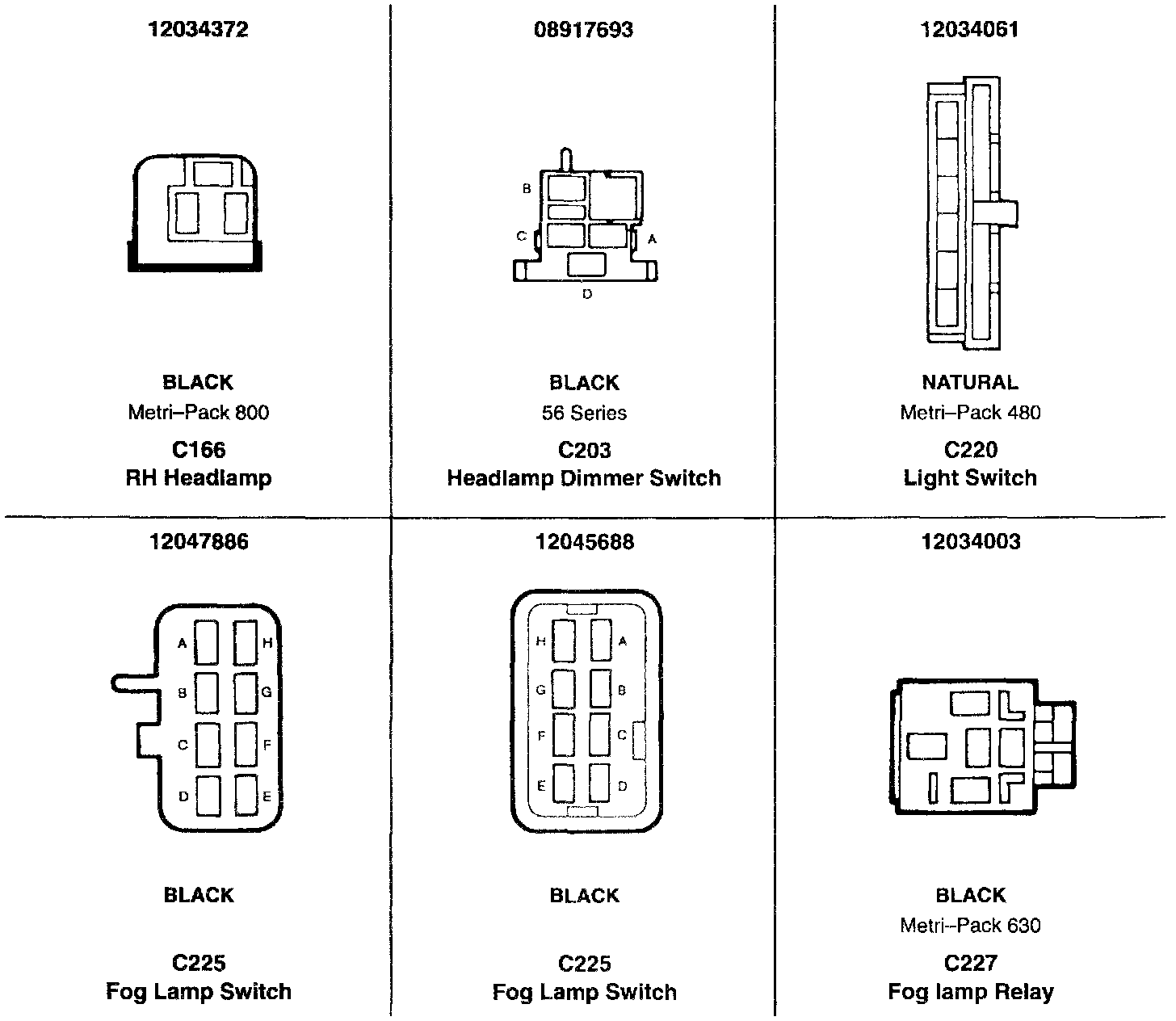

Connector Views:

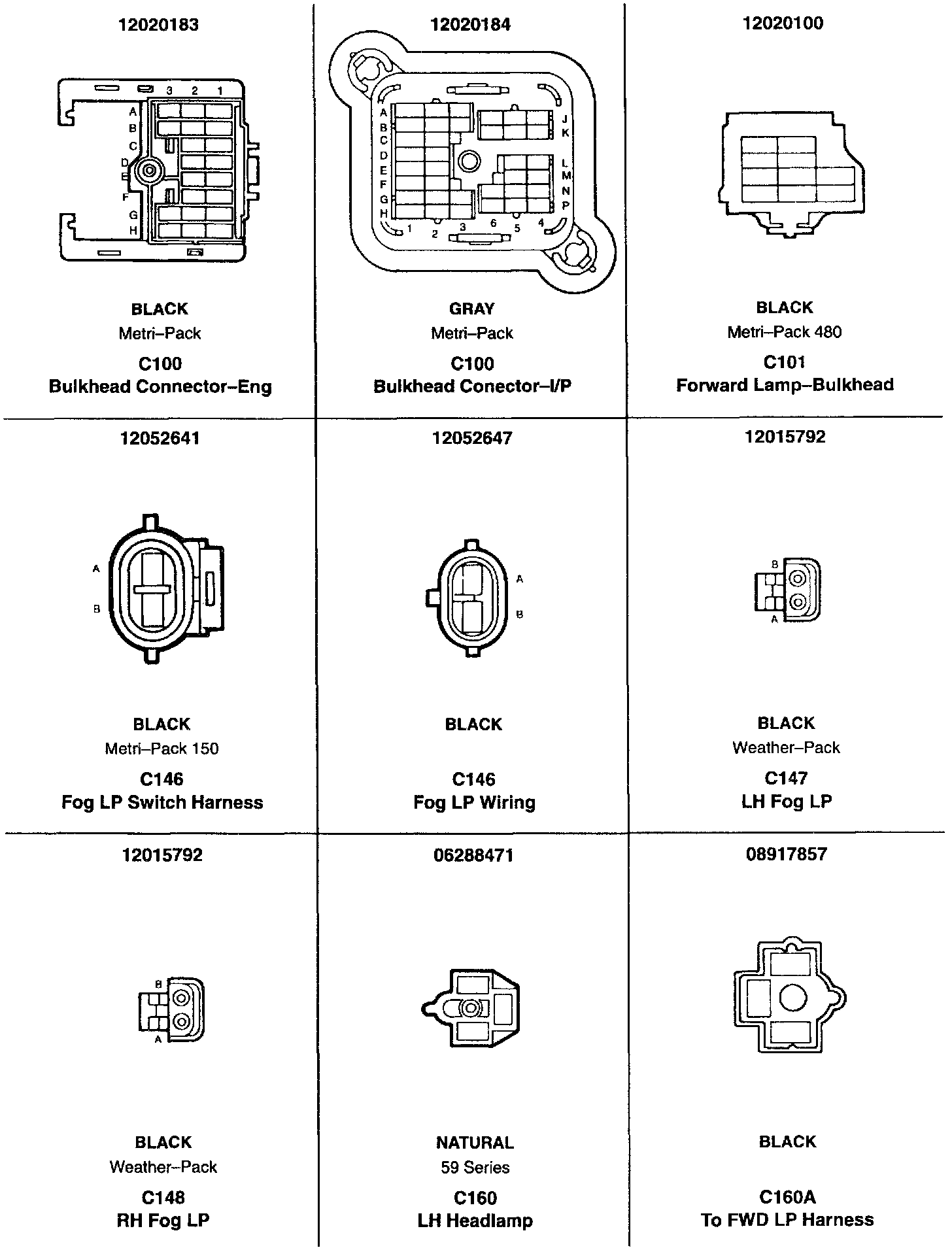

Connector Views:
