Home
>>
GMC Truck
>>
1993
>>
S15/T15 2WD P/U L4-151 2.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 17
DTC 17

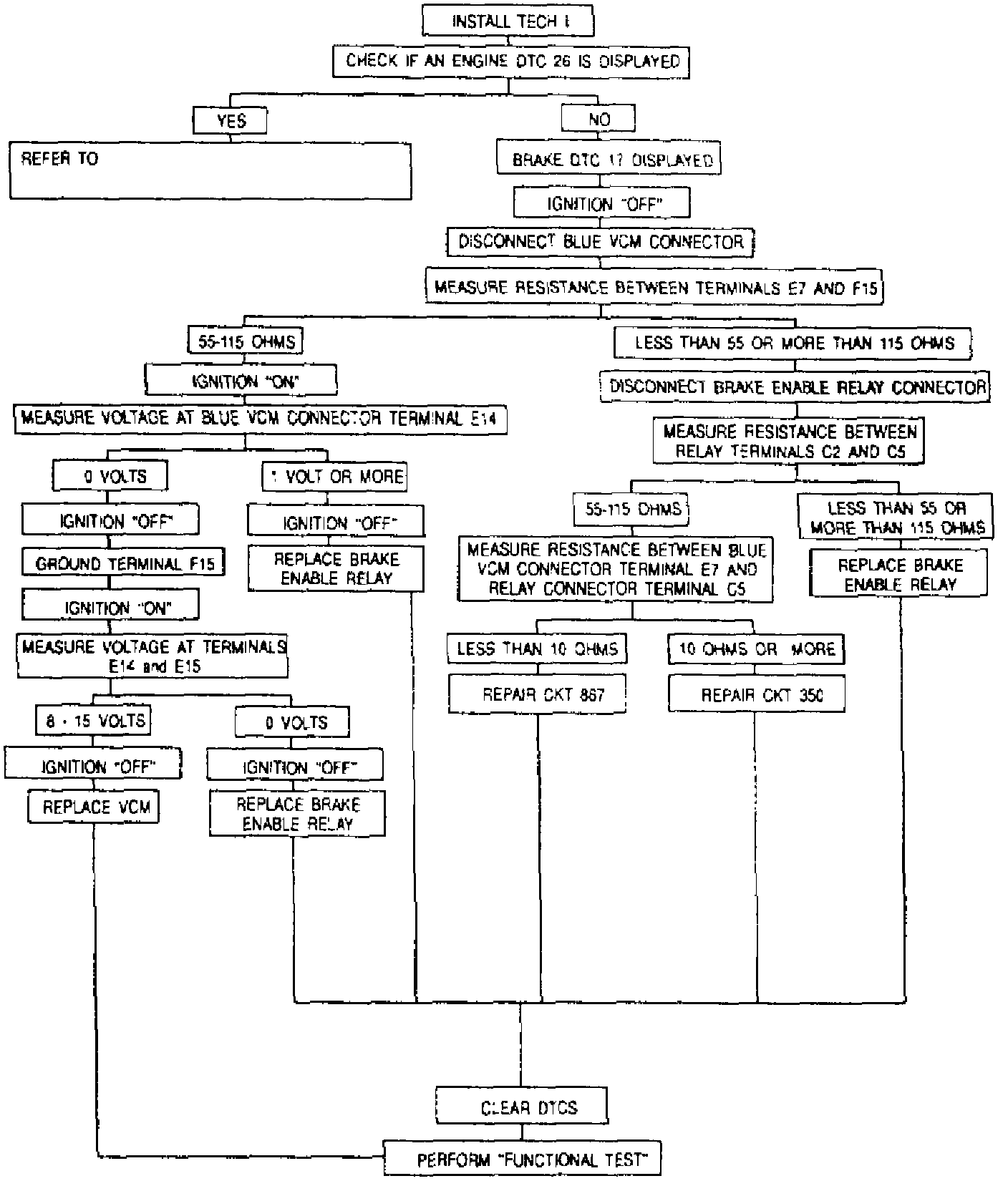

Fig. 81 DTC Code 17 Diagnosis (Brake Enable Relay Circuit). 1993 S/T:
