GMC Truck
>>
1993
>>
G 3500 1 Ton Van V8-454 7.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Air Conditioning
>>
Front
Front

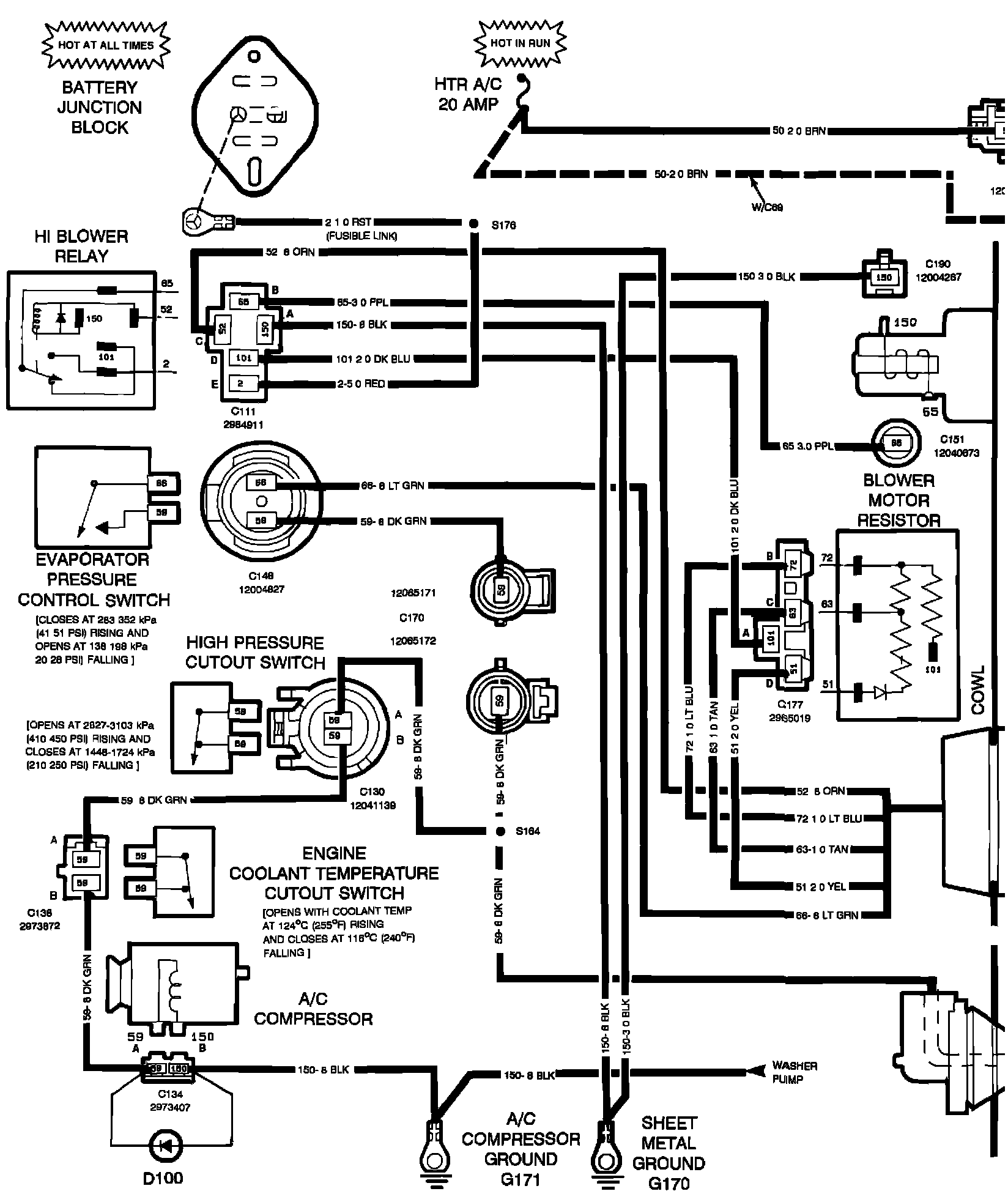

+�Q6Air Conditioning - Gas Engine:
