Fuel Tank Unit: Service and Repair

Fuel Gage Sending Unit:

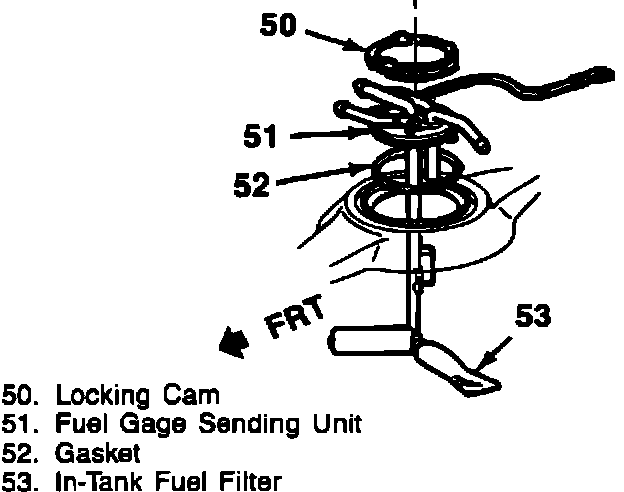

Fuel Gage Sending Unit Replacement:

REMOVE OR DISCONNECT:
1. Fuel from the tank
2. Fuel tank from vehicle

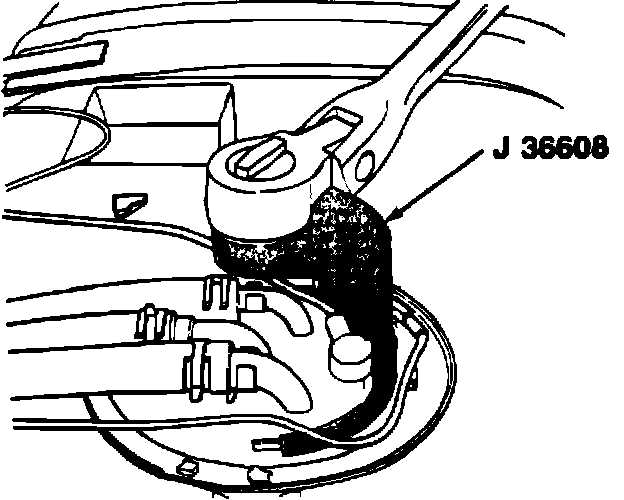

3. Locking cam, using J 36608
4. Fuel gage sending unit
5. Gasket

INSTALL OR CONNECT:
1. New gasket
2. Fuel gage sending unit
- Take care not to fold or twist the strainer, or fuel flow will be restricted
3. Locking cam, using J 36608
4. Fuel tank into vehicle
