GMC Truck
>>
1993
>>
G 3500 1 Ton Van V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Controls
>>
With 4L60-E Automatic Transmission
With 4L60-E Automatic Transmission

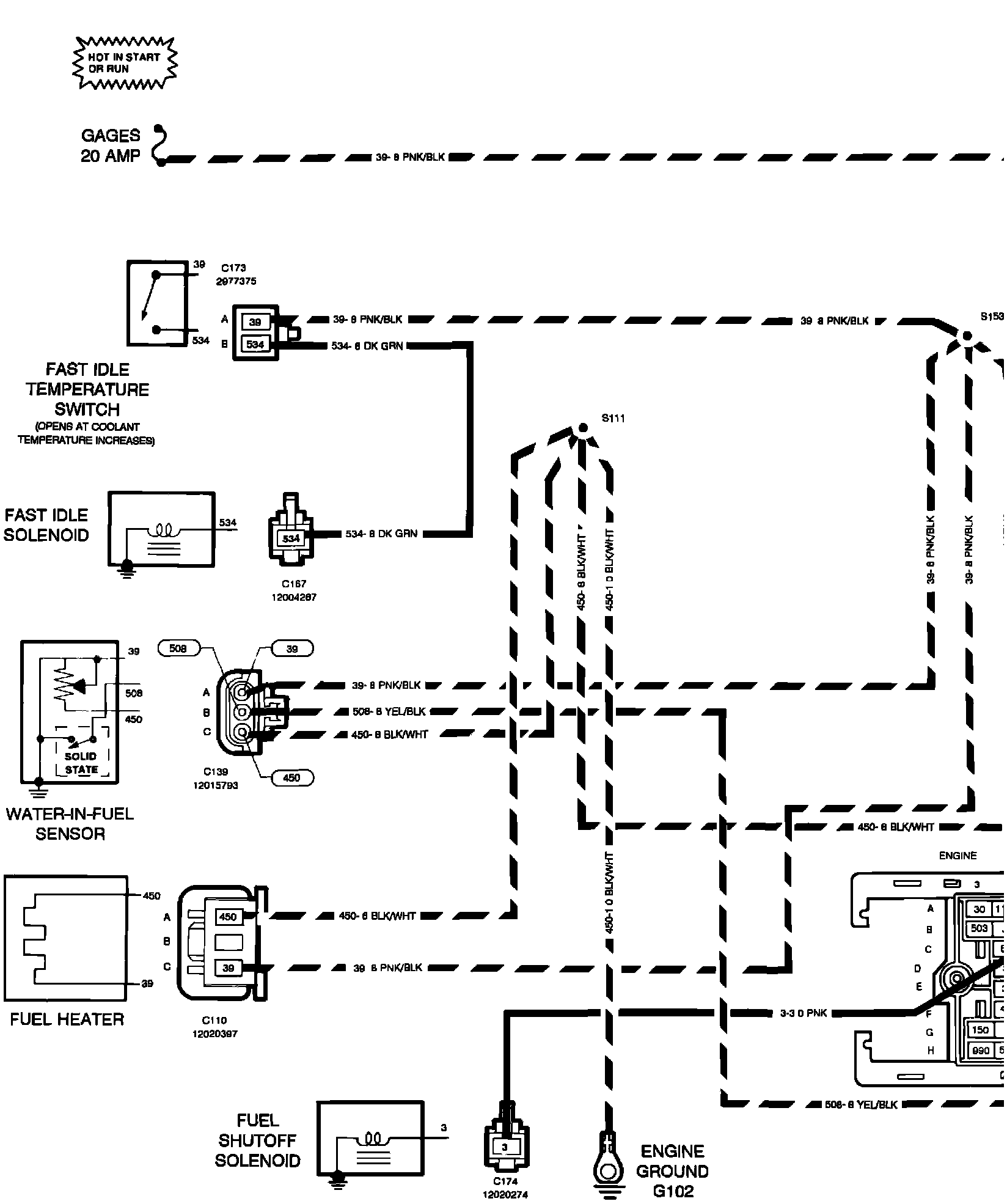

F�%Fuel Controls - Diesel Engine:
