Home >> GMC Truck >> 1993 >> G 3500 1 Ton Van V6-262 4.3L VIN Z >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

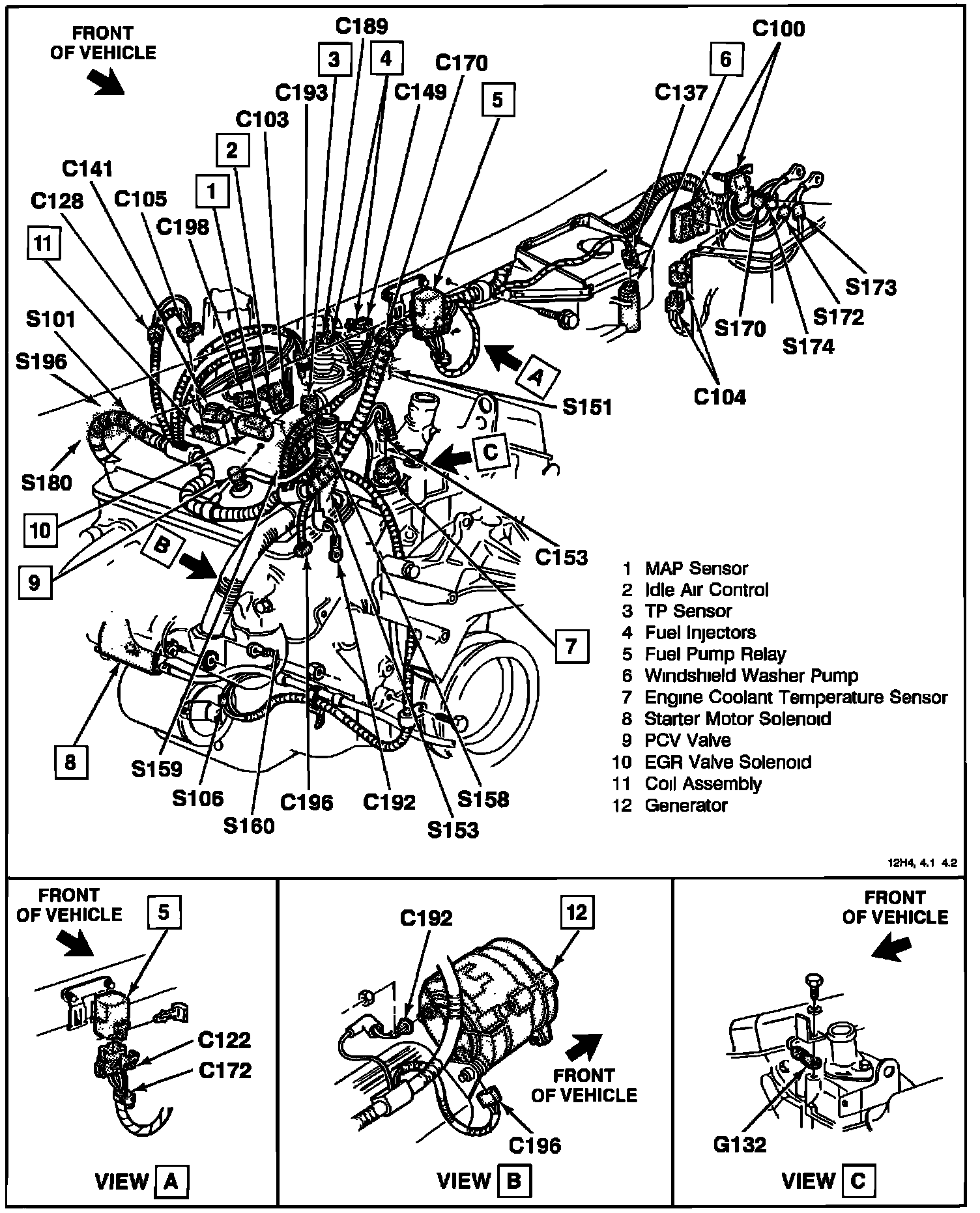

Engine Wiring, Right Side - Gas Engines:
