GMC Truck
>>
1993
>>
G 1500 1/2 Ton Van V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Heating System
>>
Main Heater

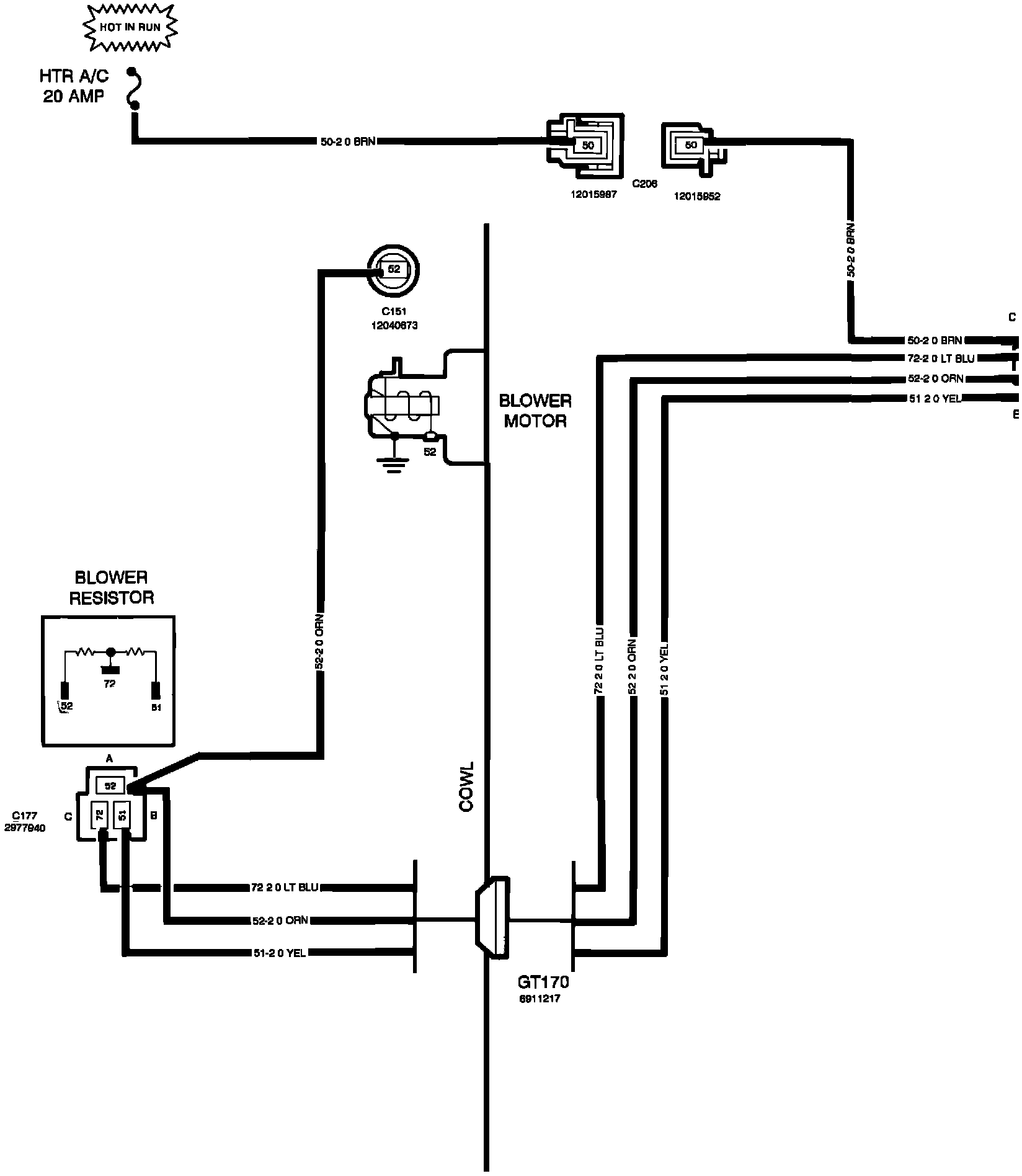

Main Heater
m�9Heater:
