GMC Truck
>>
1993
>>
G 1500 1/2 Ton Van V8-350 5.7L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Functional Check
Functional Check

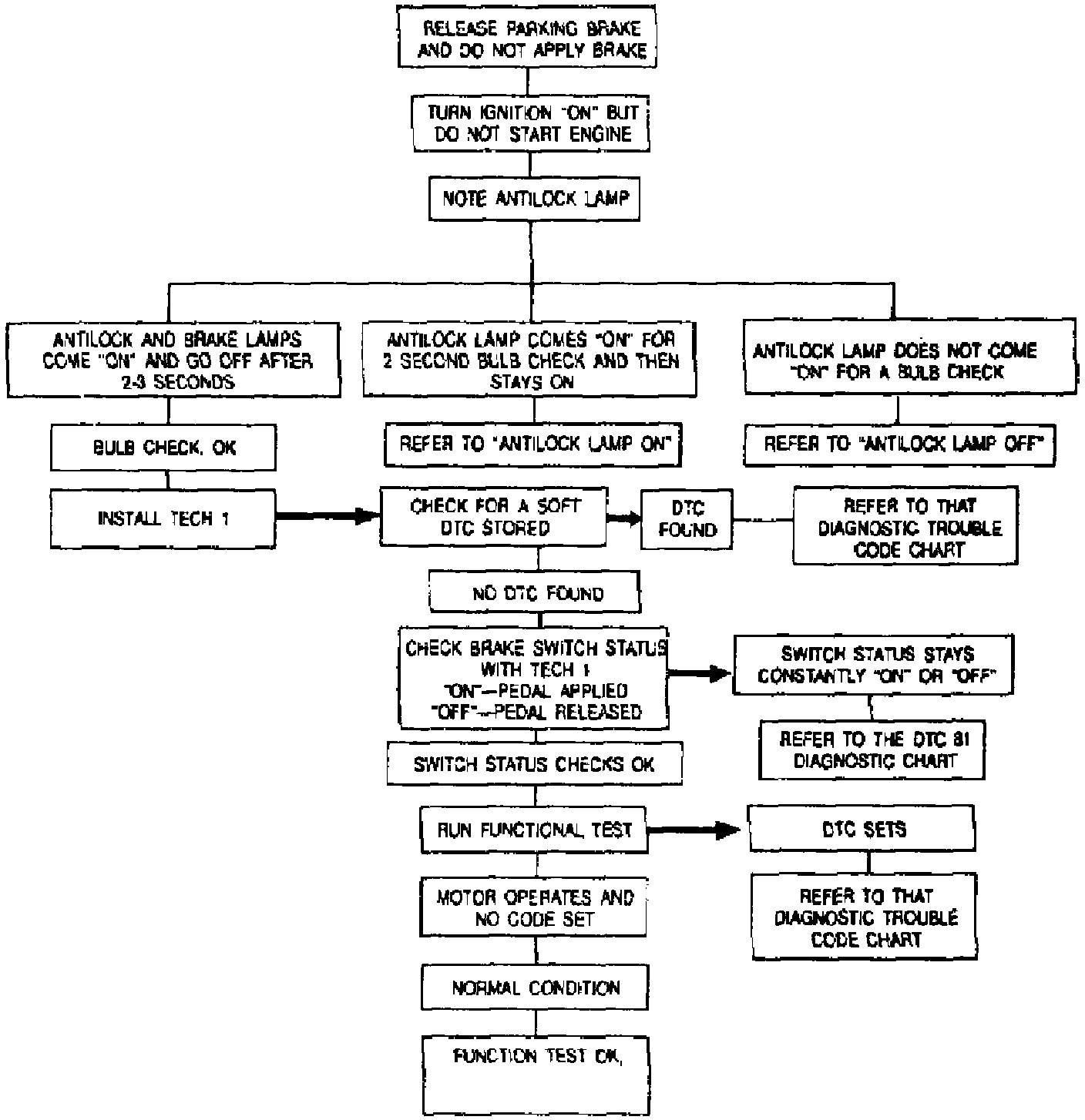

Fig. 22 Functional Test. 1993 Bravada, C, G, M/L & S:
