Exhaust Pressure Regulator Vacuum Valve: Service and Repair

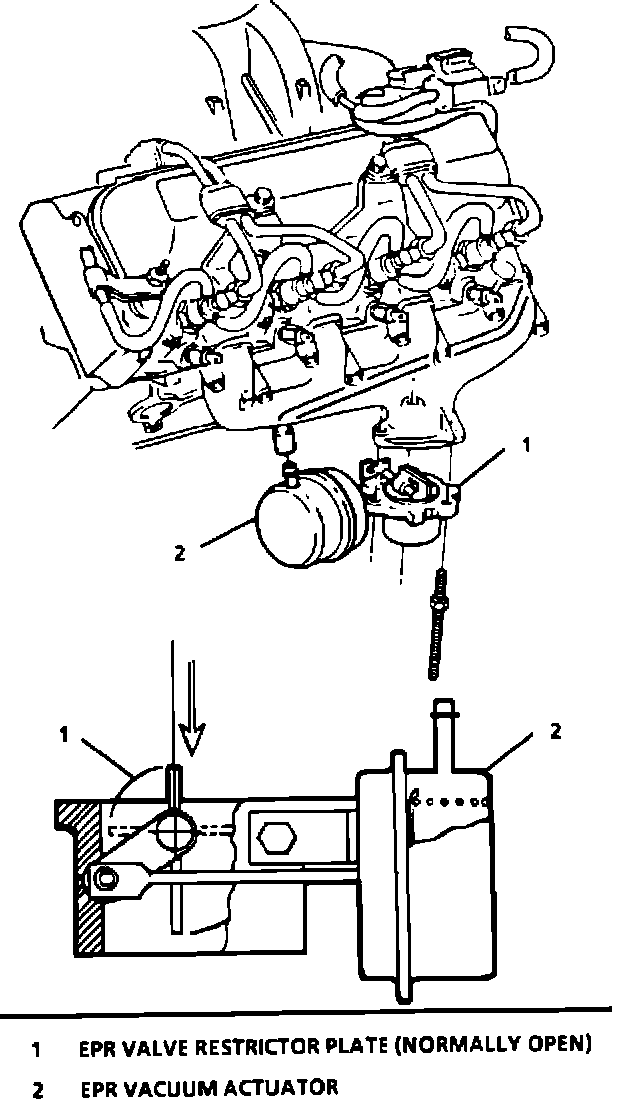

EPR Valve:

REMOVE OR DISCONNECT:
1. The vacuum hose from the actuator
2. Clip from the valve lever
3. Bolt holding the actuator to the valve
4. Actuator from the EPR valve


INSTALL OR CONNECT:
1. Actuator to the EPR valve
2. Bolt
3. Clip
4. The vacuum hose
