Home
>>
GMC Truck
>>
1993
>>
C 1500 Truck 2WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
With Light Duty
>>
Manual Transmission
Manual Transmission

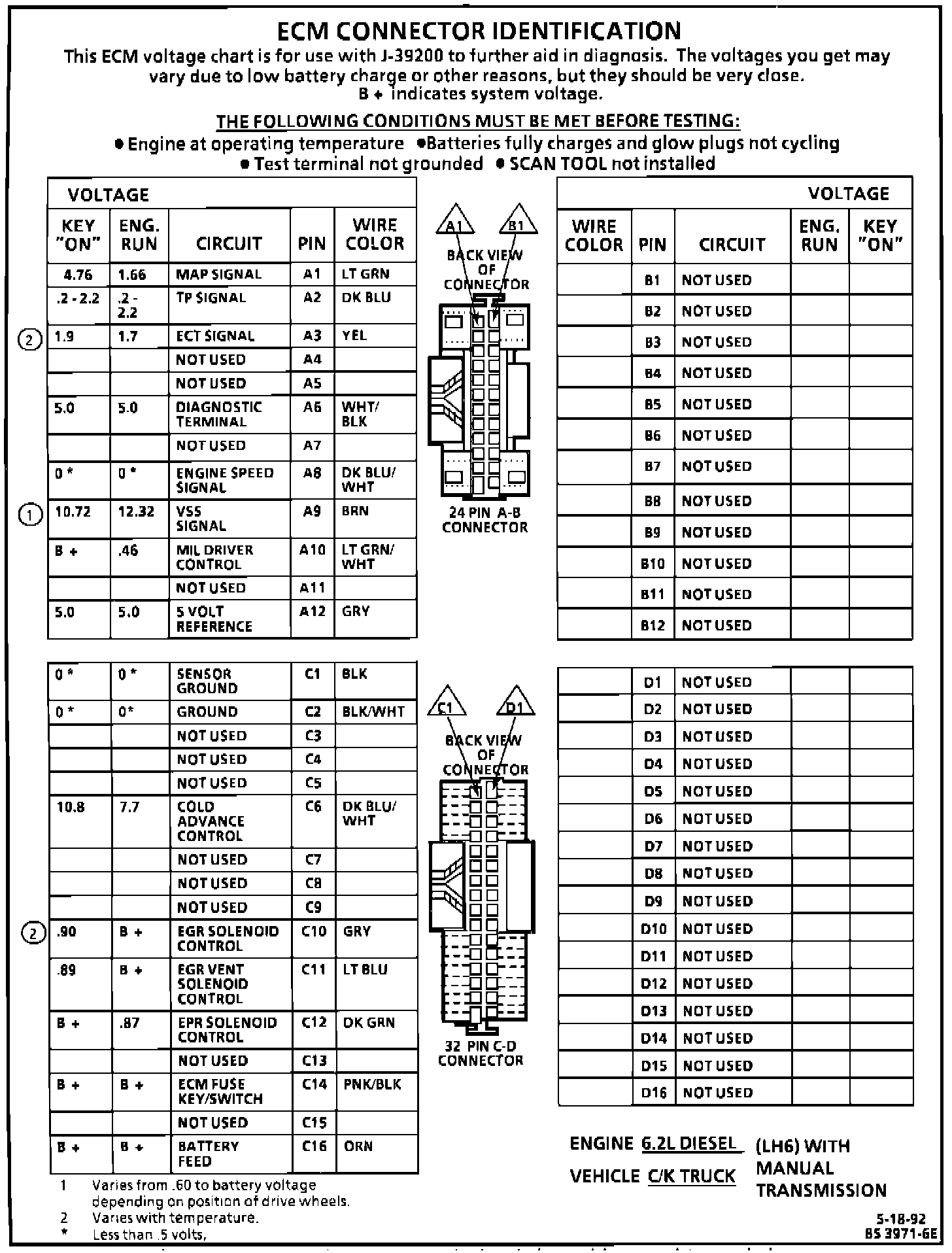

ECM Connector Terminal End View (Manual Transmission):
