GMC Truck
>>
1989
>>
Suburban 1/2 Ton 2WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition Controls
>>
Fuel Injected Engine
Fuel Injected Engine

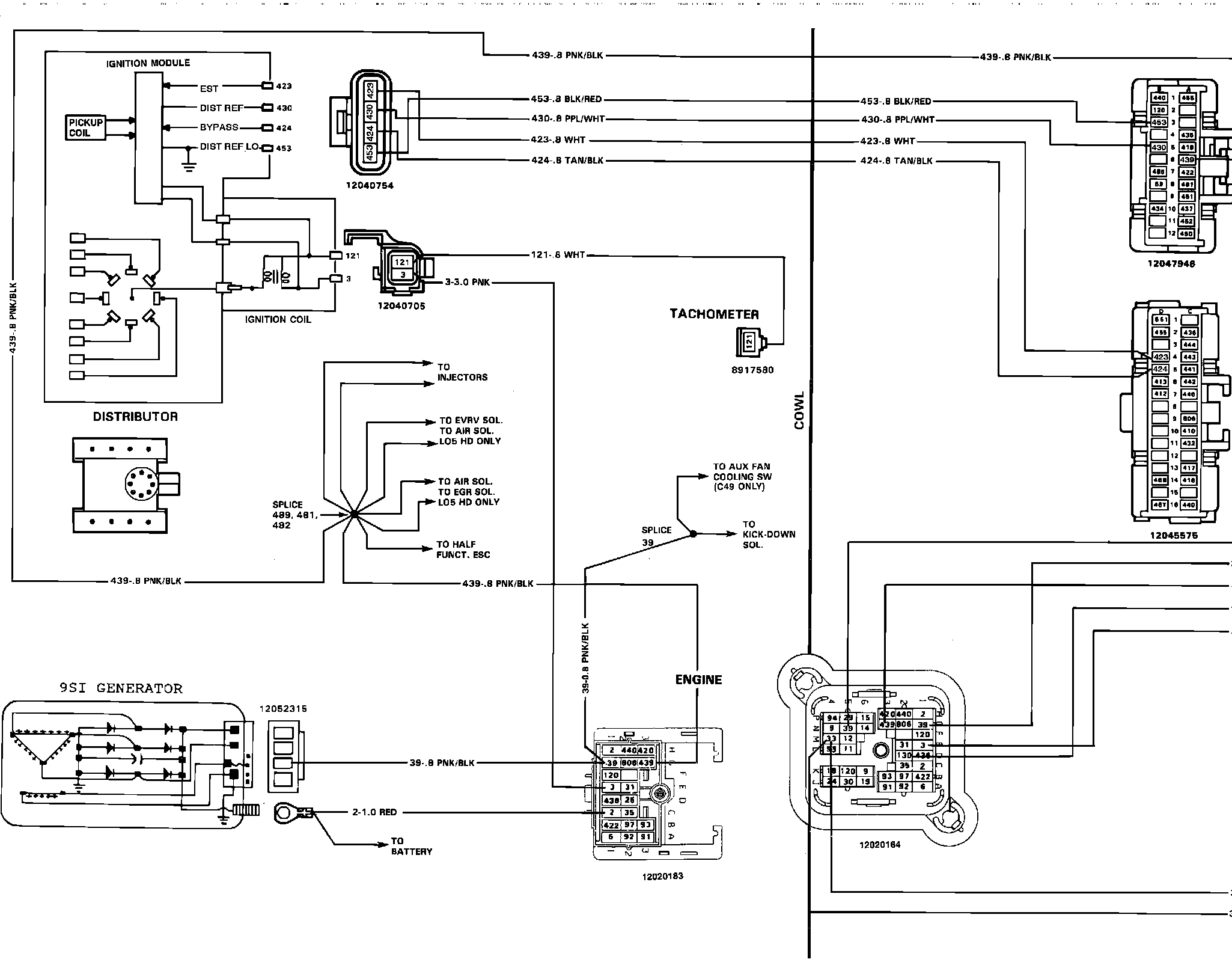

P�i%��i%Ignition:
