GMC Truck
>>
1989
>>
Safari Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Electrical Diagrams
>>
With Air Conditioning
With Air Conditioning

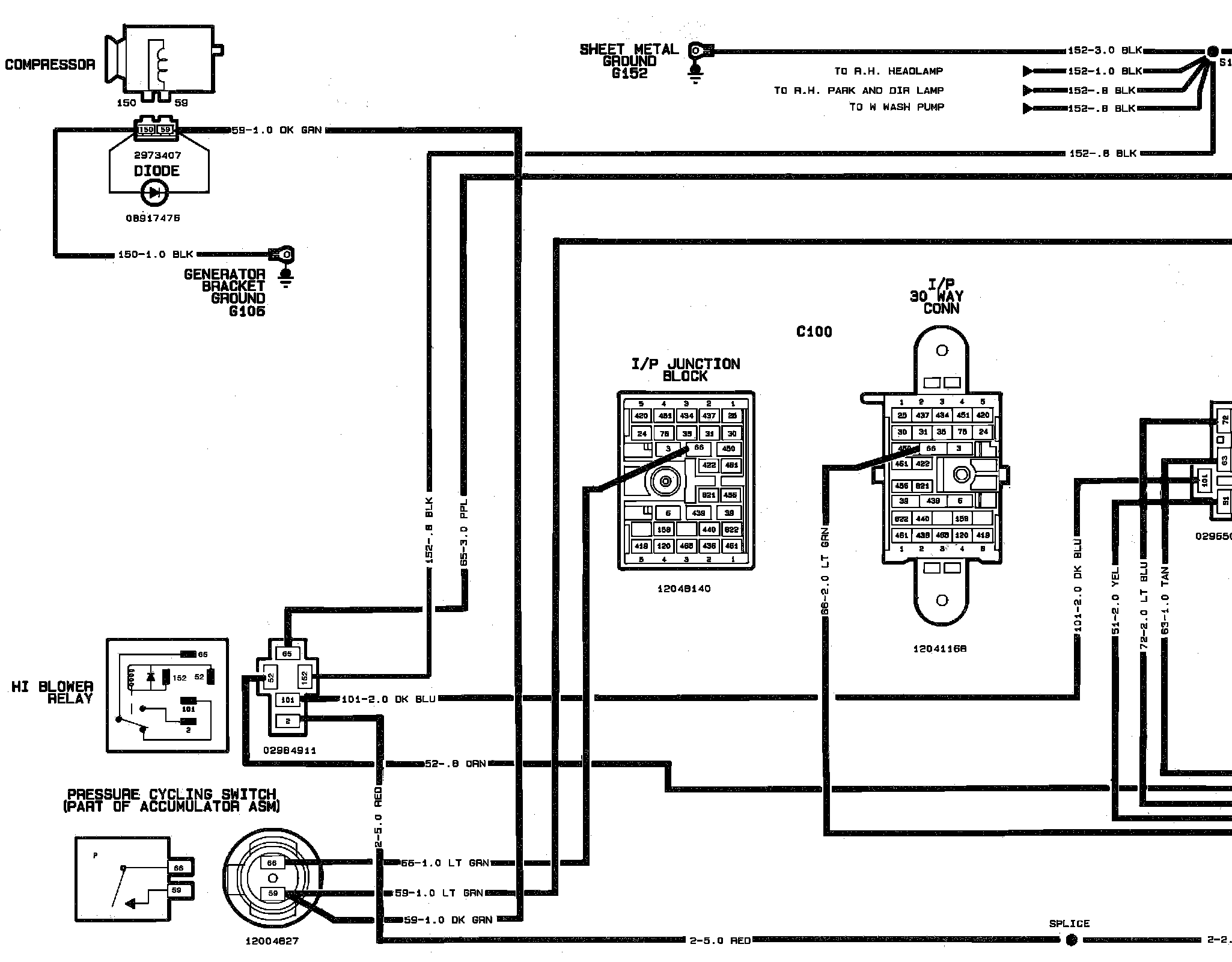

!k7�\k7Air Conditioning Wiring Circuit:
