Home >> GMC Truck >> 1989 >> Safari Van M L4-151 2.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> With Air Conditioning >> Rear >> A/C Unit

A/C Unit

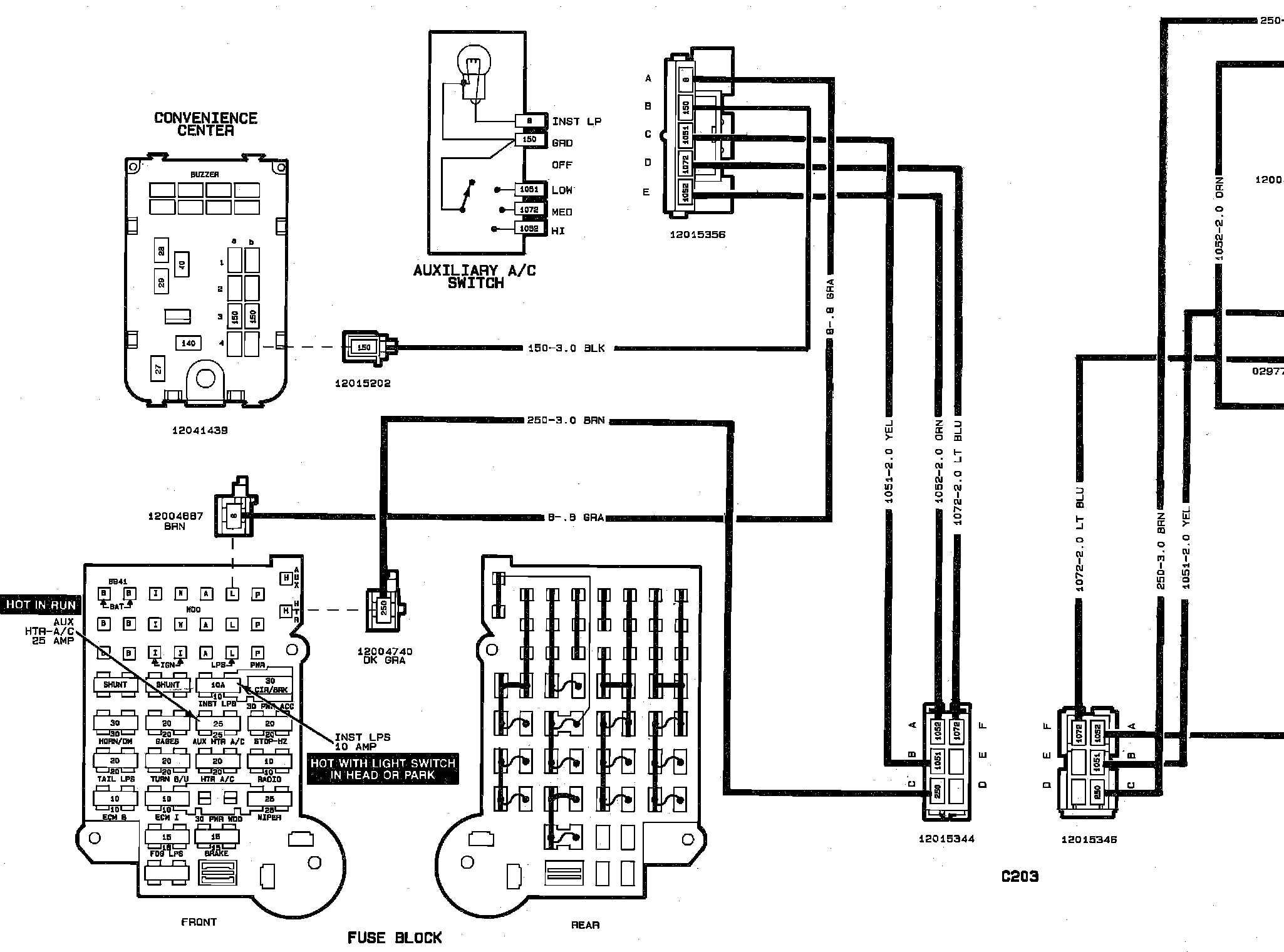

eJ�9Air Conditioning - Auxiliary Wiring Circuit:
