GMC Truck
>>
1989
>>
Safari Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Compressor HVAC
>>
With HR-6 Compressor
With HR-6 Compressor

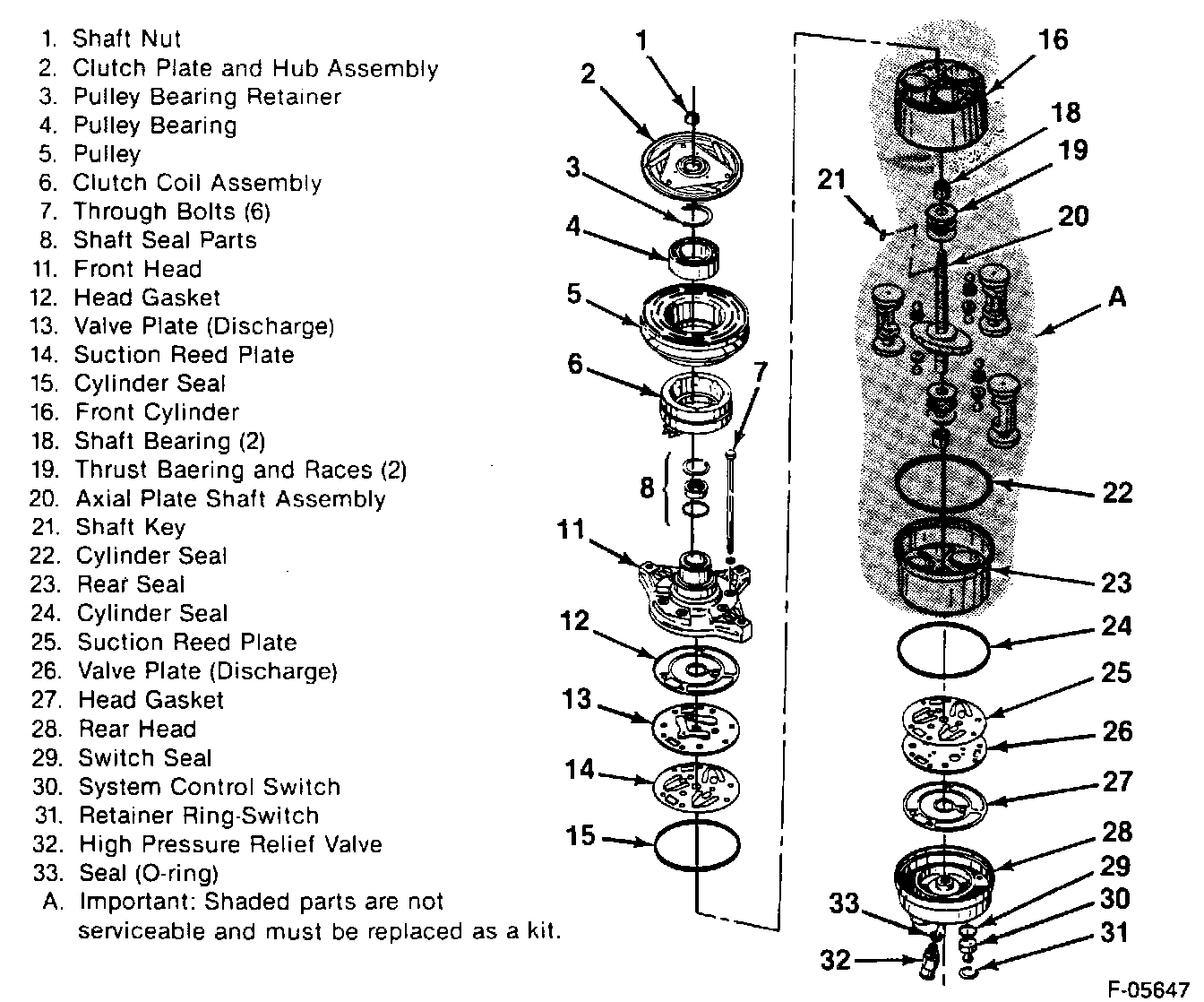

HR-6 Component View:
