GMC Truck
>>
1989
>>
Safari Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Vanity Lamp
Vanity Lamp

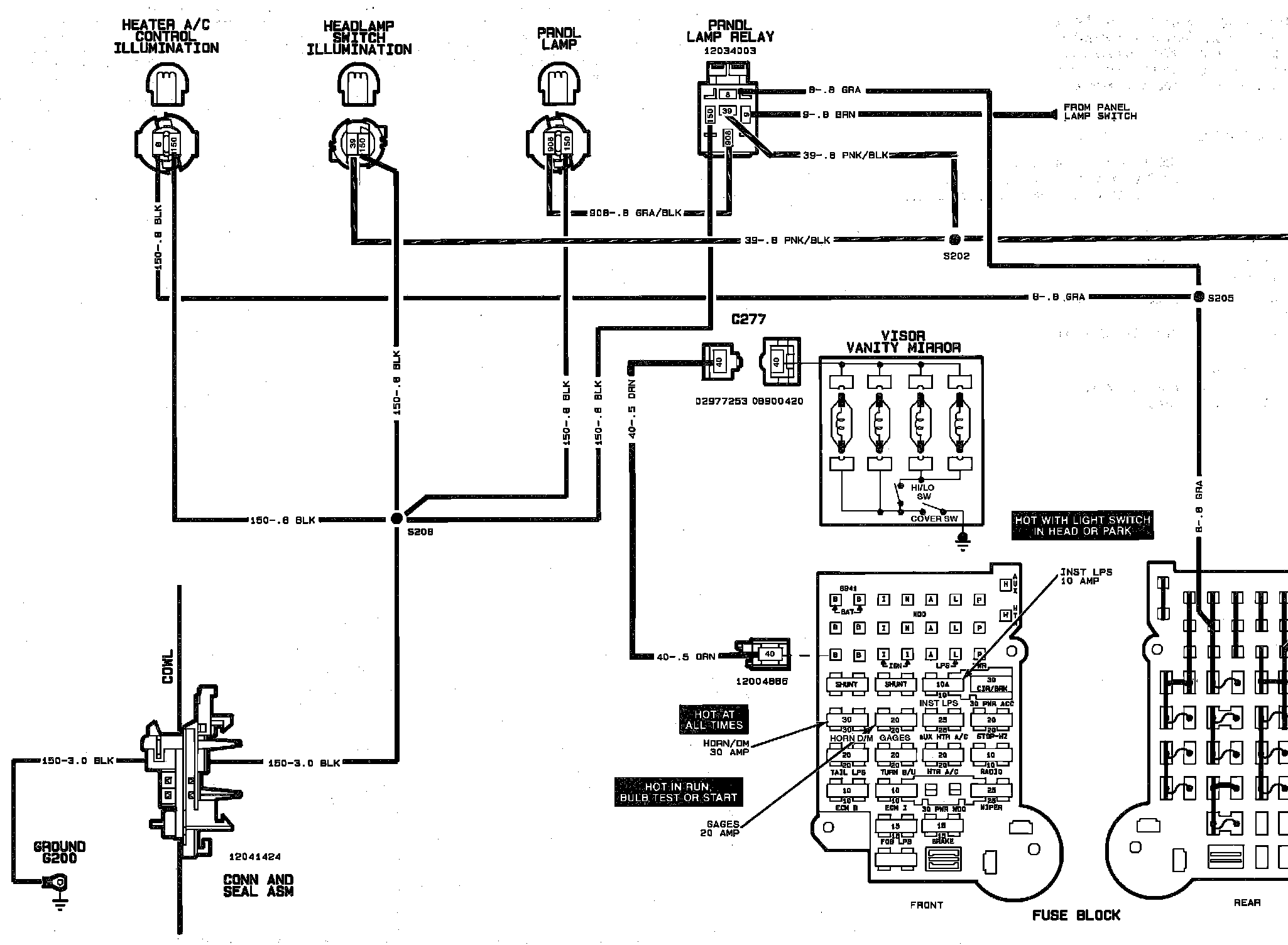

v�>Instrument Panel Illumination & Vanity Mirror Wiring Circuit:
