GMC Truck
>>
1989
>>
Safari Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device Control Module
Audible Warning Device Control Module

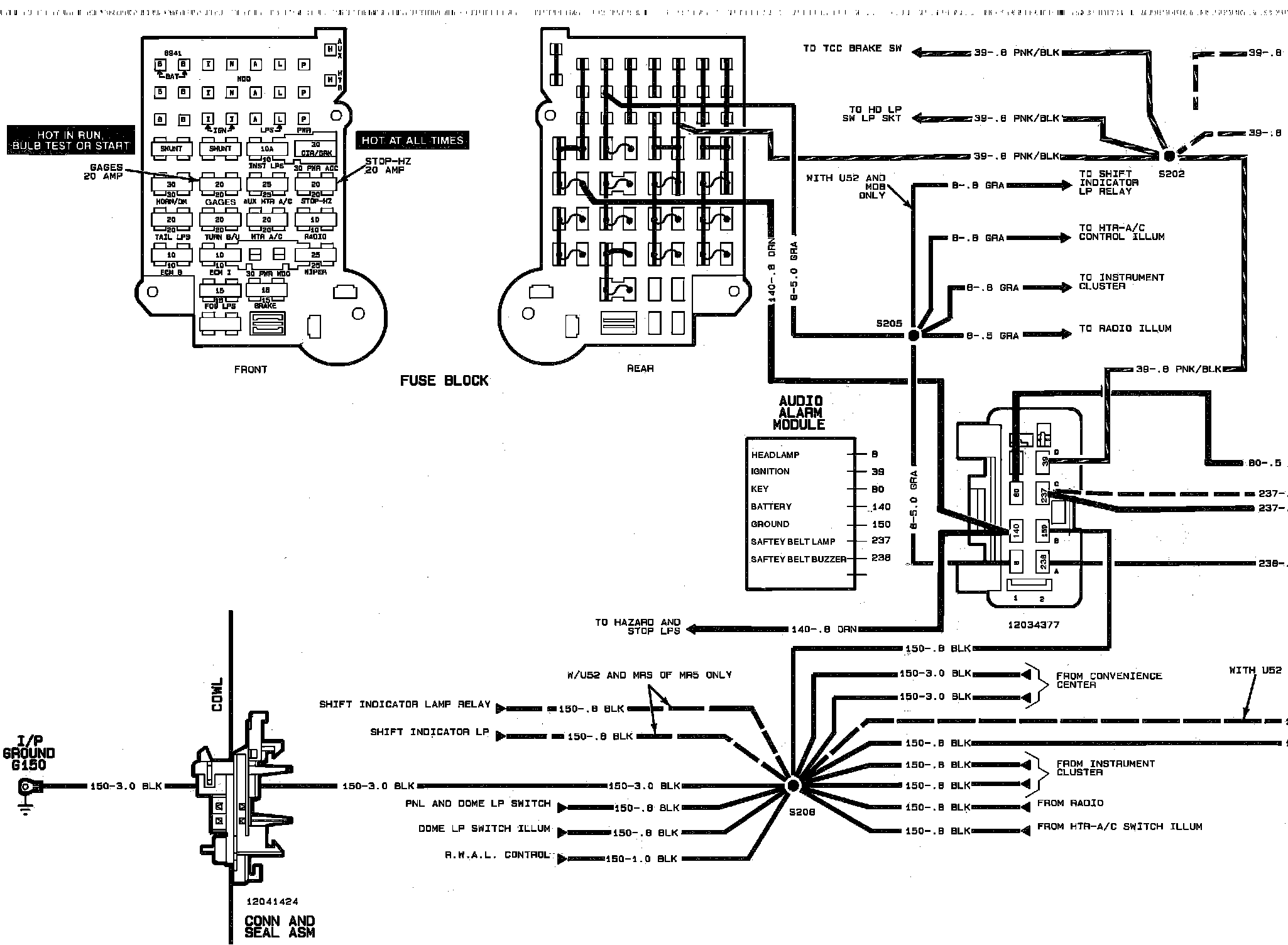

-Ly��yAudio Alarm Module Wiring Circuit:
