GMC Truck
>>
1989
>>
S15/T15 2WD Jimmy L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

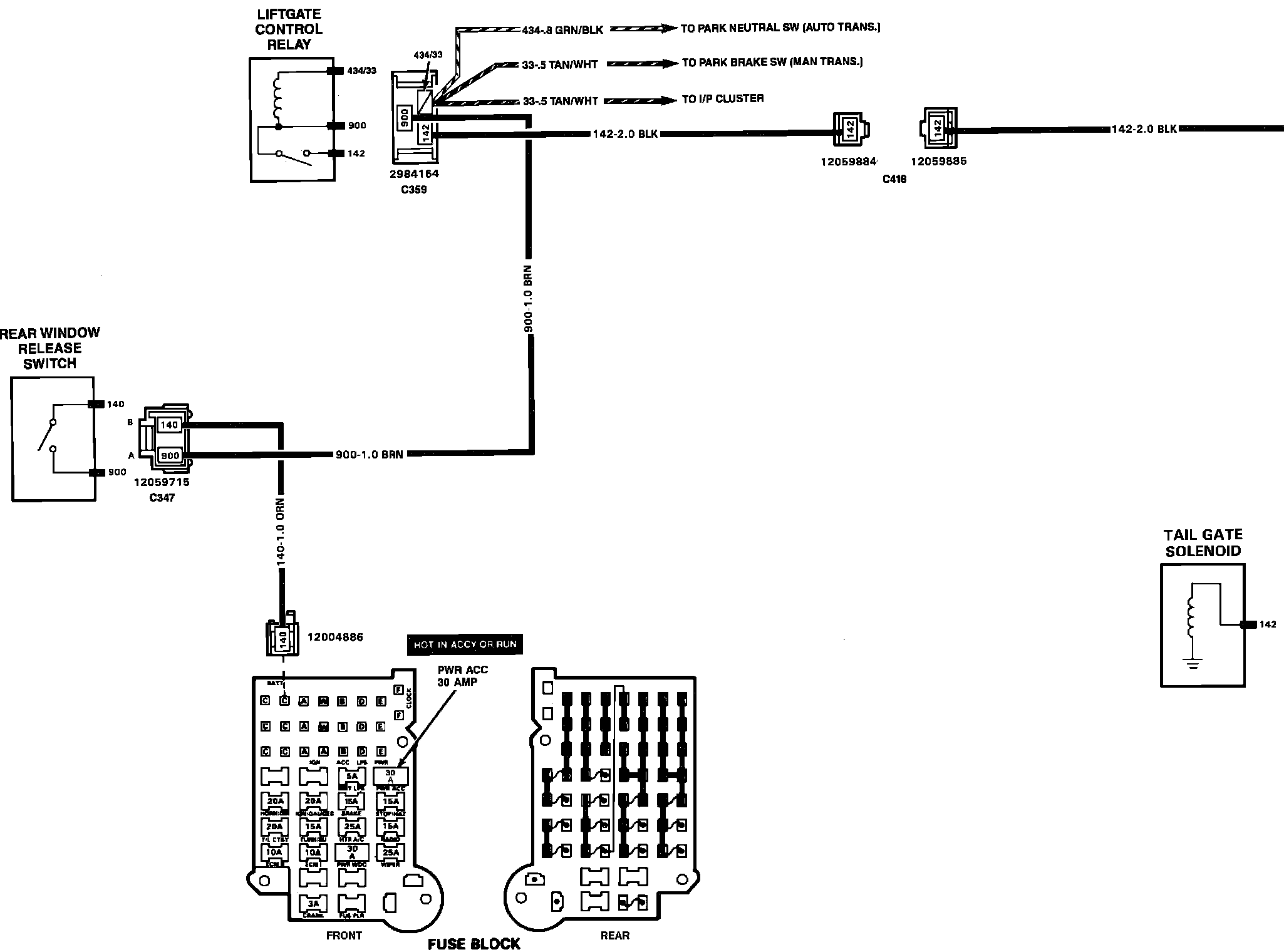

Trunk / Liftgate
Trunk / Liftgate
F�=Rear Window Release:
