GMC Truck
>>
1989
>>
S15/T15 2WD Jimmy L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

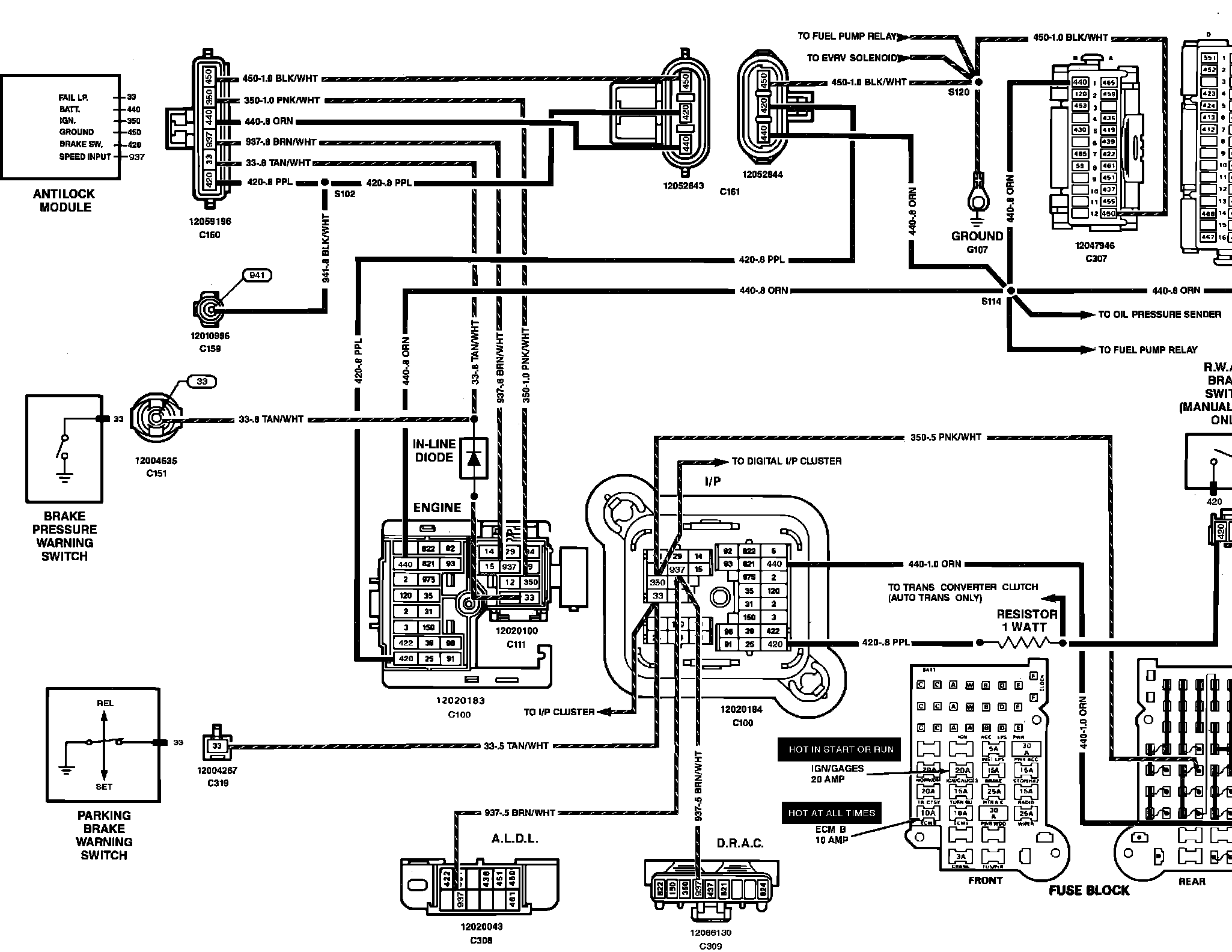

Q�/Rear Wheel Anti-Lock Braking & Brake Warning System:
