GMC Truck
>>
1989
>>
G 3500 1 Ton Van V8-454 7.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
>>

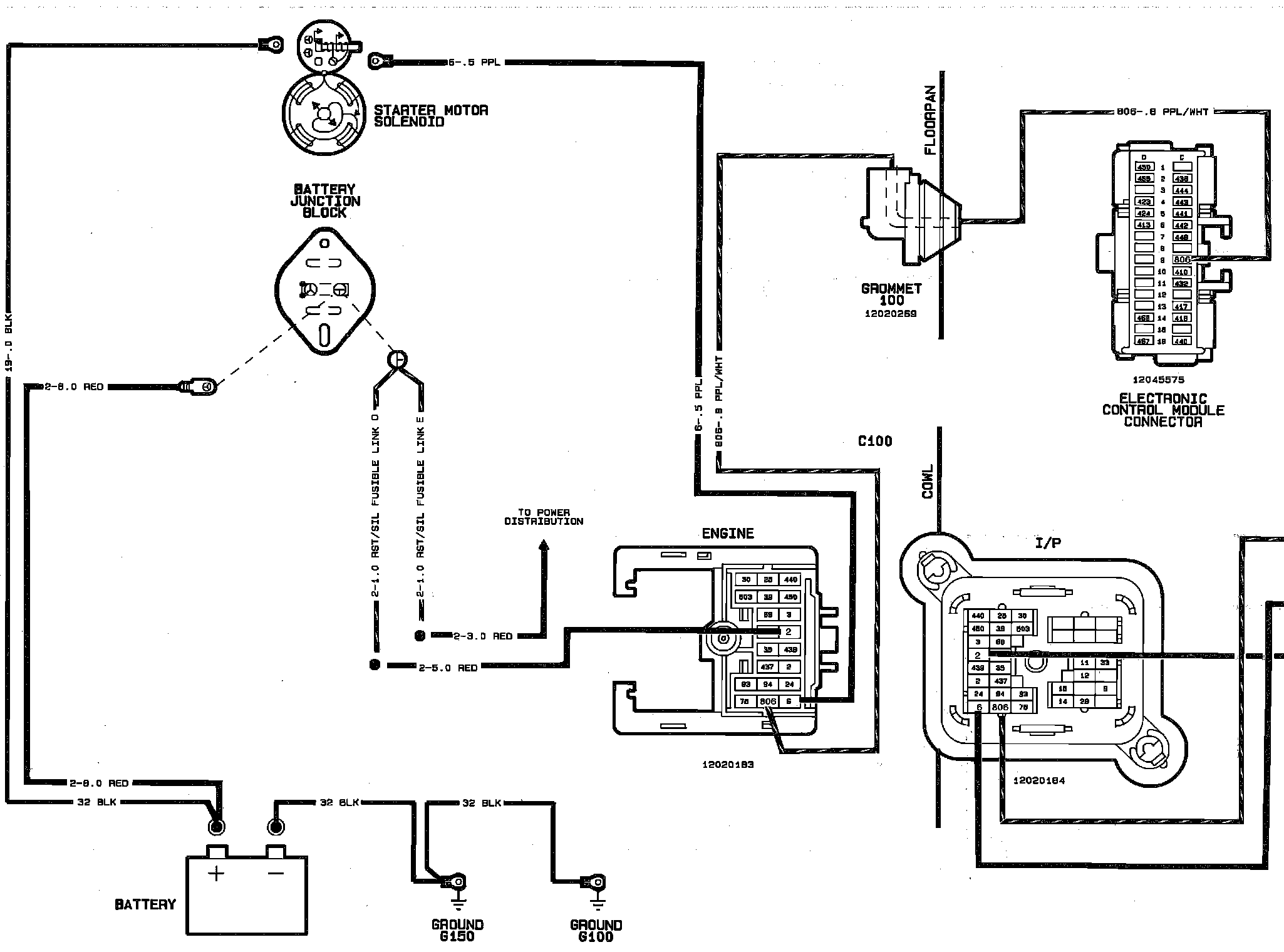

Starting System
Starting System
Rw3.Bw3Starter:
