GMC Truck
>>
1989
>>
G 2500 3/4 Ton Van V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
>>

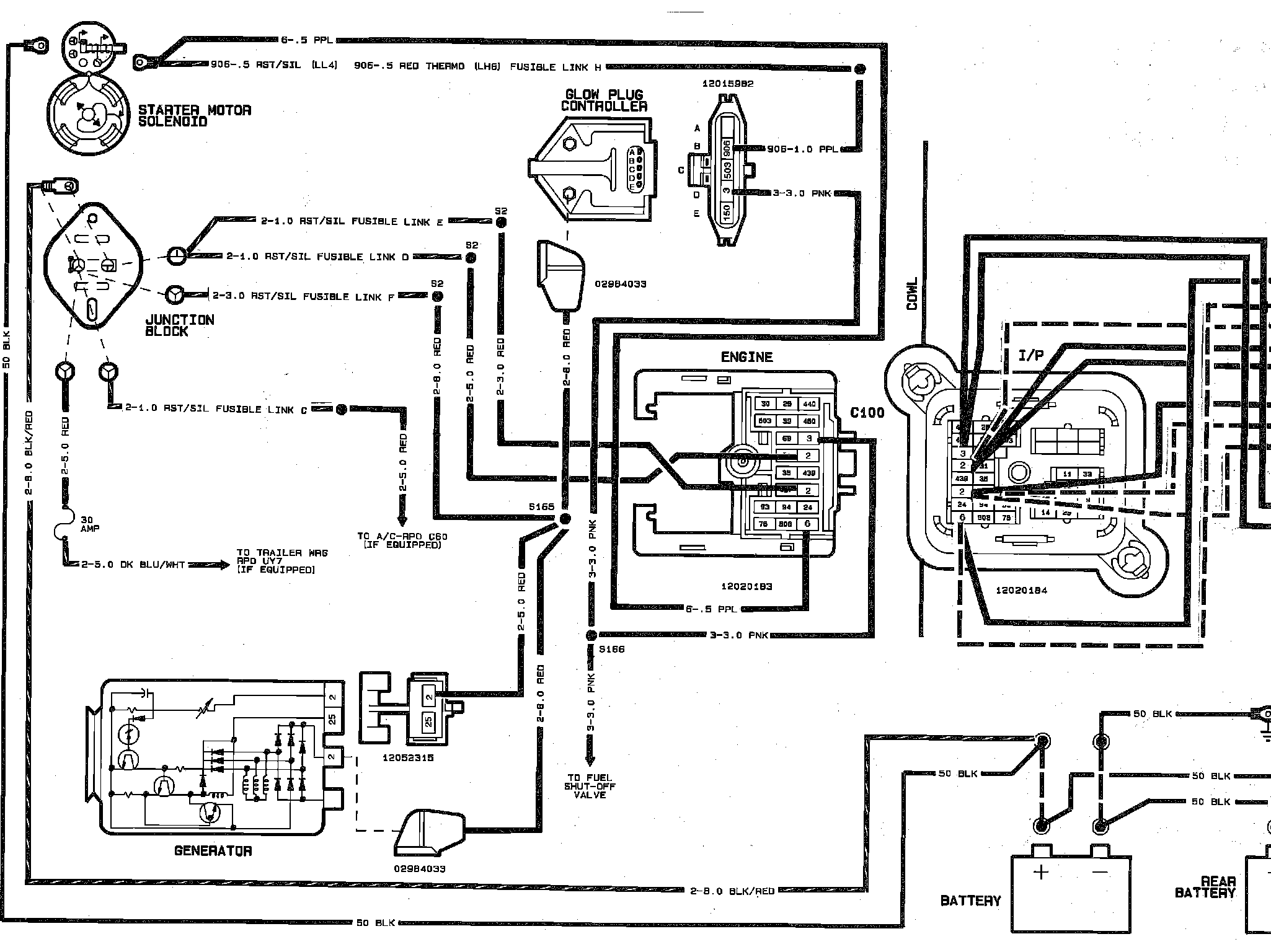

Charging System
Charging System
���2#�2Power Distribution:
